Optical Wavelength Laboratories
Quick Reference Guide
ZOOM 2 Series
Firmware Version 2.56
ZOOM 2 Series Test Kits
Optical Loss Testing
Quick Reference Guide
For part numbers:
KIT-Z2-L2xx
KIT-Z2-L213xx
KIT-Z2-L215xx
KIT-Z2-D2xx-L2xx
KIT-Z2-D285xx-L213xx
OWL
Revision 1.4
July 19, 2011
Optical Wavelength Laboratories (OWL)
N9623 West US Hwy 12
Whitewater, WI 53190
Phone: 262-473-0643
Internet: OWL-INC.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIT-Z2-L2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for OWL KIT-Z2-L2 Series

Summary of Contents for OWL KIT-Z2-L2 Series

  • Page 1 Quick Reference Guide For part numbers: KIT-Z2-L2xx KIT-Z2-L213xx KIT-Z2-L215xx KIT-Z2-D2xx-L2xx KIT-Z2-D285xx-L213xx Quick Reference Guide Revision 1.4 Optical Wavelength Laboratories (OWL) ZOOM 2 Series July 19, 2011 N9623 West US Hwy 12 Firmware Version 2.56 Whitewater, WI 53190 Phone: 262-473-0643 Internet: OWL-INC.COM...

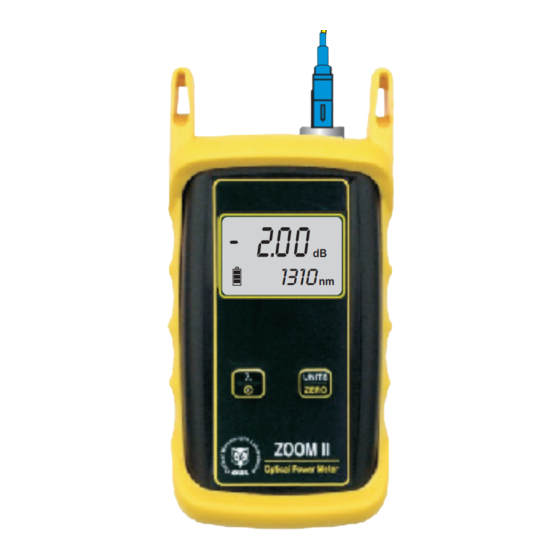

  • Page 2 GETTING STARTED Thank you for your purchase of this OWL certification test kit. Included in this kit is a ZOOM 2 optical power meter and a Laser OWL singlemode fiber optic laser source. This quick reference guide will assist you in setting up your test kit for a standards-based certification test.
