MPO Series
Operations Guide
Fiber Optic Light Sources
OWL
Optical Wavelength Laboratories
Operations Guide
Date: June 1, 2020
Optical Wavelength Laboratories (OWL)
N9623 Old Hwy 12
MPO Series
Version 1.0
Whitewater, WI 53190
Fiber Optic Light Sources
Phone: 262-473-0643
Internet: OWL-INC.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OWL MPO Series

  • Page 1 MPO Series Operations Guide Fiber Optic Light Sources Optical Wavelength Laboratories Operations Guide Date: June 1, 2020 Optical Wavelength Laboratories (OWL) N9623 Old Hwy 12 MPO Series Version 1.0 Whitewater, WI 53190 Fiber Optic Light Sources Phone: 262-473-0643 Internet: OWL-INC.COM...
  • Page 2: Table Of Contents

    CONTENTS PAGE GENERAL FUNCTIONAL DESCRIPTIONS 2.0.1 WAVESOURCE CONNECTIONS 2.0.2 WAVESOURCE INDICATOR LEDs 2.0.3 WAVESOURCE BUTTONS APPLICATIONS PRECAUTIONS 3.1.1 Safety 3.1.2 Operational 3.1.3 Connector REQUIRED ACCESSORIES 3.2.1 Cleaning Supplies 3.2.2 Patch Cords 3.2.3 Optical Fiber Adapters TYPICAL APPLICATIONS MAINTENANCE / CALIBRATION WARRANTY SPECIFICATIONS WAVESOURCE CONFIGURATIONS...
  • Page 3: General

    1.0 GENERAL Thank you for your purchase of an Optical Wavelength Labs (OWL) MPO Series fiber optic light source. The various models of MPO light sources contain stabilized multimode and singlemode sources designed for accurate optical power and loss measurements, as well as polarity, in MPO fiber optic cables and links. Each MPO light source comes with a protective rubber boot, operations manual on USB flash drive, and a USB charger and cable.
  • Page 4: Functional Descriptions

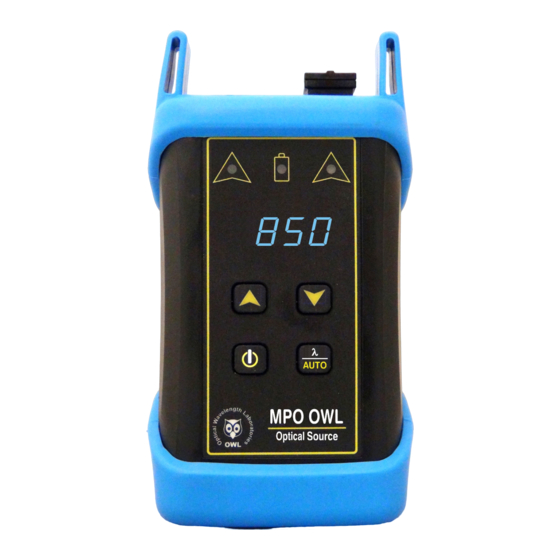

    2.0.3 BUTTONS Next channel button - switches the source to the next channel. Figure 1 - MPO Series Fiber Optic Light Source Previous channel button - switches the source to the previous channel. Power button - Power the unit on or off.
  • Page 5: Applications

    3.0 APPLICATIONS 3.1 PRECAUTIONS 3.1.1 Safety - Exercise caution when working with optical equipment. Most transmission equipment and light sources use light that is invisible to the human eye. High energy light is potentially dangerous, and can cause serious, irreparable damage to the eye. Thus, it is recommended to NEVER look into the connector port of a light source or the end of a fiber.
  • Page 6: Maintenance / Calibration

    Optical Wavelength Labs N9623 Old Highway 12 Whitewater, WI 53190 Internet: owl-inc.com Phone: 262-473-0643 Fax: 262-473-8737 - 5 -...
  • Page 7: Specifications

    6.0 SPECIFICATIONS Optical Specifications Multimode Singlemode Source Type Laser Calibrated Wavelengths 850, 1300nm 1310, 1550nm Output Power (CW) -20 dBm (into MM fiber) -10 dBm (into SM fiber) Channel Precision ±1.0 dB ±1.0 dB Spectral Width (FWHM) 50nm (850nm) 2nm (1310nm) 180nm (1300nm) 3nm (1550nm) Channel Switching...

This manual is also suitable for:

Mpo-ols-m83Mpo-ols-m85Mpo-ols-s35Mpo-ols-s13Mpo-ols-s15
