Spectra Precision Focus 30 Service Manual page 151

Item Performance
Exchange Holder
3
receiver fibre

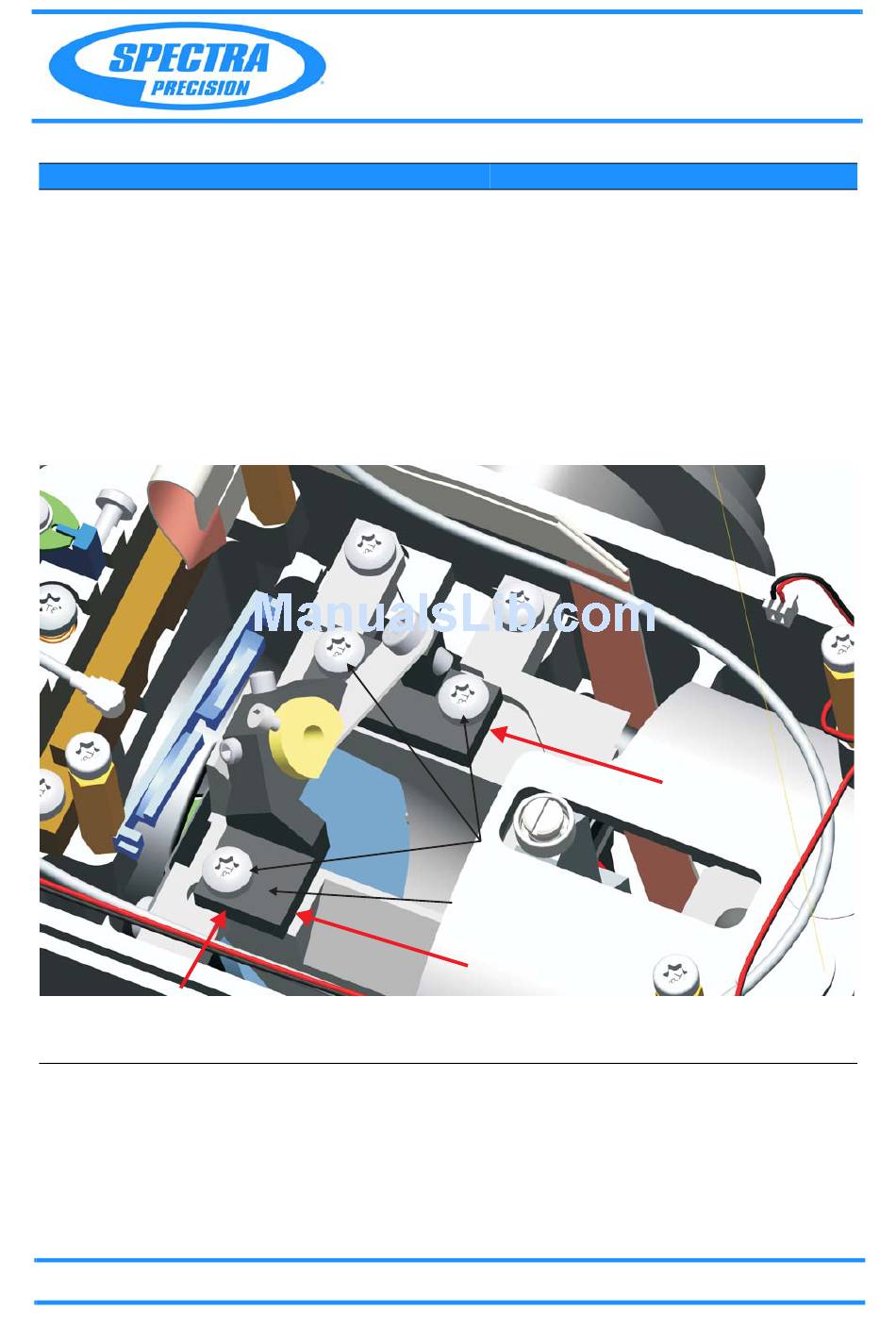

Fig. 5-17 Exchange Holder receiver fibre
Adjustment and
4
calibration
Exchange EDM F35 High Precision 1mm
After exchange the EDM F35 High Precision 1mm, you have to determine the offset and to verify the
accuracy with special calibrated baselines,
page 6-85.
P/N 79000035_SM, Version 1.5
Action
A. Unscrew three
screws.
B. Take out the
Holder.
C. Remount and shift
the Holder in
direction of the
three red arrows
until the stops.
D. Tighten the three
screws.
What to do after
replacement?
see"Focus 35 EDM 1mm - Verify the 1mm accuracy" on
5 - 21
Maintenance and Repair
Result
50Ncm/4,42lbfin
A/D
B
Focus 30/35 Service Manual
Chapter 5
Notes
Torx T8
Torque wrench
Torx T8
