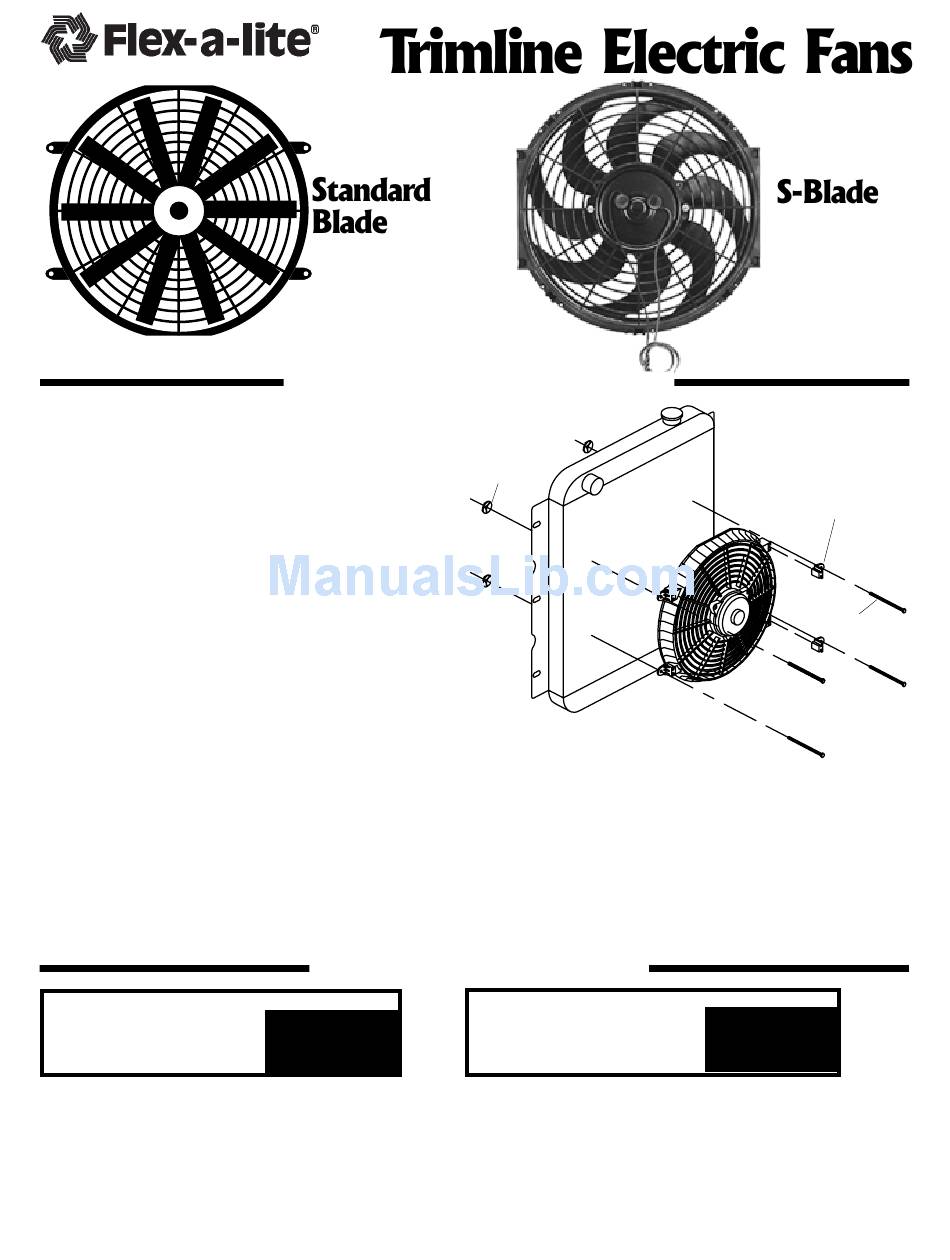

Flex-a-Lite Trimline Installation Instructions

Puller Mode (as shipped from the manufacturer)

Through Core Mounting Instructions

(SEE DIAGRAM "A")
1. Attach the mounting tabs to the electric fan.
See diagram "A".
2. Position the electric fan against the radiator,
and mark mounting hole locations.
3. Pass a small Phillips screwdriver through the
marked holes, carefully spreading the fins to
allow easy passage for the nylon bolts. Fit the
bolts to the mounting tabs, and pass the bolts
through the shroud holes in the radiator.
4. Push on the speed nuts until snug.
5. Cut off the end of the mounting bolts, leaving 1/4" remaining.

Pusher Mode Through Core Mounting Instructions

1. Remove retaining clip from motor shaft.
2. Remove fan blades, flip it over, and re-fit to shaft. Make sure that pin on shaft is seated into
groove in fan hub. Replace retaining clip.
3. Proceed with instruction above. Note: some vehicles have a/c condensers or tranny coolers
mounted in front of the raidator. Modifications may be necessary to accommodate the fan.
Important:
Pusher fans use:
Black wire is positive (+).
Blue/Red wire is negative(-).
Important: Disconnect the battery prior to wiring any of the products below.
Direct Connect: (Fan will operate when the ignition is "on")
1. Attach the positive fan motor wire to a 12 V positive ignition controlled source, e.g. fuse box.
Use the 20 amp inline fuse provided for each fan.
2. Attach the negative fan motor wire to a ground, e.g. negative side of battery, chassis etc....
3. Reconnect battery.

Installation Instructions

Wiring Instructions

Reverse wiring
when installing

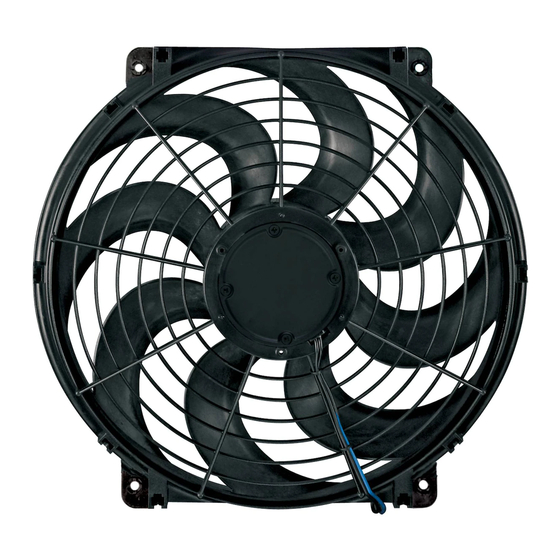

#396, 16" S-Blade
Push
Nut
Important: Puller fans use:
Blue/Red wire is positive (+).
Black wire is negative (-).
Diagram A
Puller Mode Shown
Mounting Tab
Nylon Bolt
Reverse wiring
when installing
#396, 16" S-Blade
