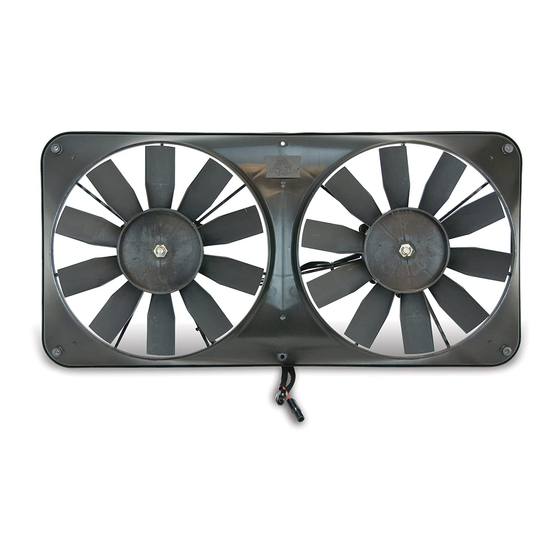

Dual Electric Fan with
Thermostatic Control
and A/C Relay
Setting Pull or Push Configuration:
At the factory, the model 330 is assembled to pull air. To push air, remove the
clips that hold the fan blades onto the motor shaft and turn the fan blade over.
Reinstall the clips to the motor shafts. Important: See wiring diagram (next
page), correct wiring must correspond with push or pull configuration.

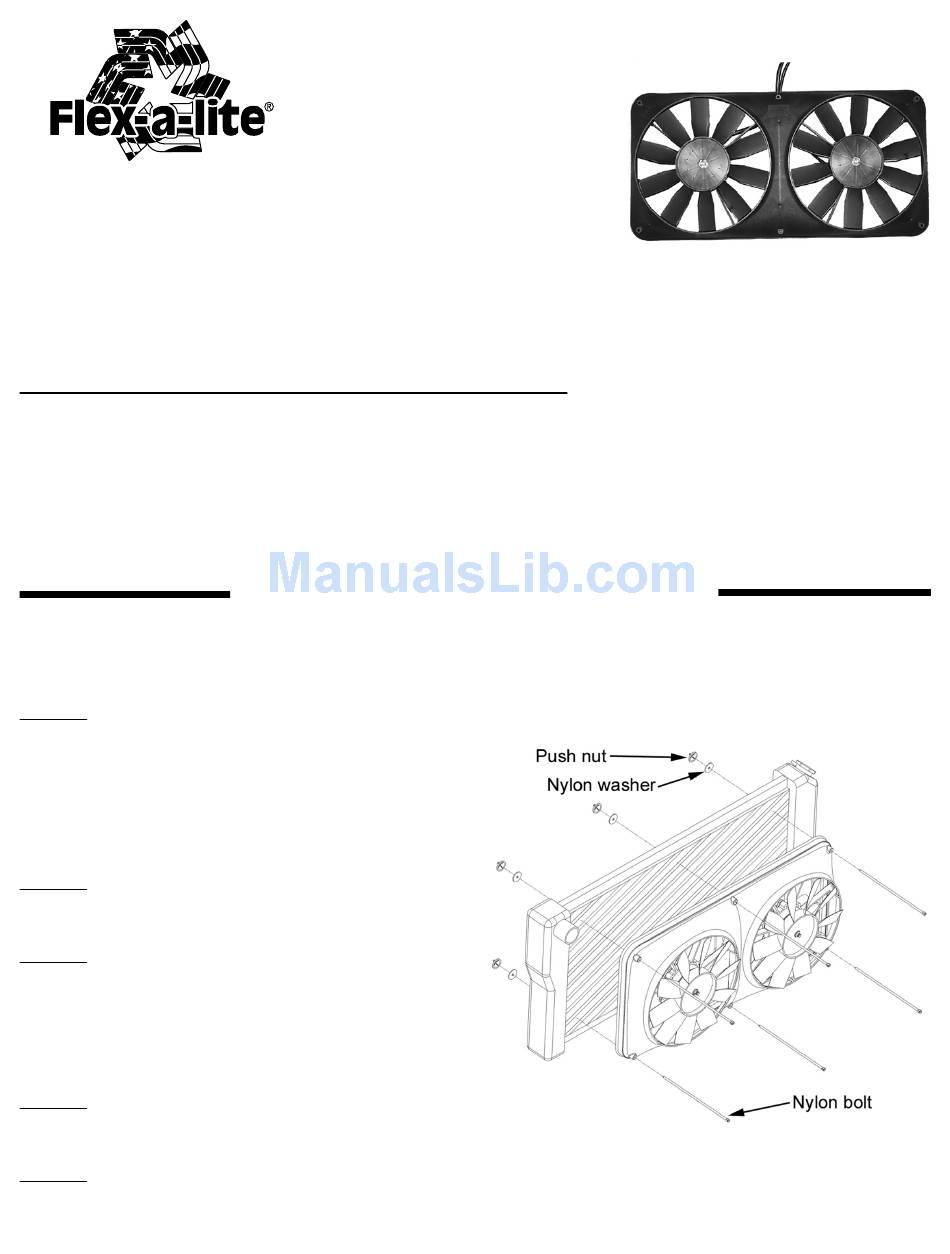

Through Core Mounting Instructions
(SEE DIAGRAM "A")
Step 1: Position the electric fan against the radia-
tor, and mark
the holes for mounting. (Some applications may
have A/C condensers and/or transmission coolers
on the front of the radiator. Additional adjustments
or modifications may be necessary for installation).
Step 2: Rotate fan blades to make sure they are
free of obstructions.
Step 3: With a small Phillips screwdriver, pass
through the marked holes, carefully spreading the
fins to allow easy passage for the nylon bolts. Pass
the bolts through the shroud holes then twist the
bolts through the radiator.
Step 4: Slide the washer onto the nylon bolt and
push on the push nuts until snug.
Step 5: Trim off any excess length on the nylon
bolts with a pair of side cutters, leaving about
beyond the push nut.
Part #330
Installation Instructions
¼
"
Rev.
Diagram A
04-23-10
#98330
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Flex-a-Lite 330
Summary of Contents for Flex-a-Lite 330
-
Page 1: Installation Instructions
Part #330 Dual Electric Fan with Thermostatic Control and A/C Relay Setting Pull or Push Configuration: At the factory, the model 330 is assembled to pull air. To push air, remove the clips that hold the fan blades onto the motor shaft and turn the fan blade over. Reinstall the clips to the motor shafts. -
Page 2: Wiring Instructions
Wiring Instructions Step 1: Locate mounting point for control Locate a mounting point for control near inlet side of radiator. The control needs to be placed within 18" of radiator inlet hose. You may want to mount next to radiator on fender well. Mount the control using the screws provided. - Page 3 Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the point of purchase, transportation charges prepaid.
