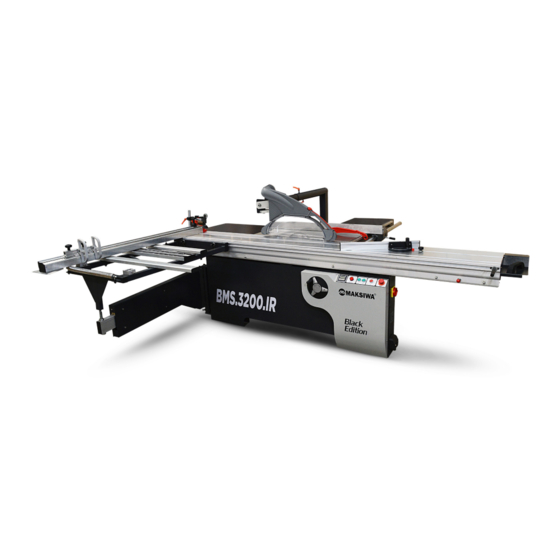

- Page 1 BMS.3200.IR S. C. Sliding Panel Saw 3200 mm INSTRUCTIONS MANUAL Attention: Read this manual before using the machine.
- Page 2 All of MAKSIWA’s tools are tested in our factories. In case this machine does not work, check • Never step on the machine nor clime on top of your power supply.
- Page 3 • Fixate the panel that will be worked on. Use clamps of the blades. to hold down panels and press it against the guide. Be attentive when holding the panel to not cut your • TURN OFF the machine, disconnect the power hand.
- Page 4 • DO NOT grease nor lubricants nor any cleaning product (sprays in particular) around plastic guards. The BMS.3200.IR is a sliding panel saw tailor made The materials used to make them are highly sensitive to provide high quality precise cuts in diverse angles to chemicals and may cause damage.
- Page 5 Since the equipment was already assembled in our factory, you will not have any issues to assemble your To move the equipment with a crane or a pallet jack/ BMS.3200.IR. fork lift follow the positioning indicated in the following pictures avoiding contact with the nonstructural parts CAUTION: Never remove the blade guard.
-
Page 6: Sliding Table
Install the second part of the table and adjust the Hight to suit your needs and install the guide on top of the table: Fixate the rail of the guide in the front of the stationary table keeping in mind that the three parts need to be parallel to each other: Fixate the guide P on top of the sliding table and adjust the screws underneath it to manipulate the... -
Page 7: Saw Blade Installation
(one on top of the wrench in the middle and spin the wrench clock wise. blade guard and one on the side of the equipment) for a cleaner and safer work area. Consult Maksiwa’s catalog for several dust collection options. FRONT PANEL:... -
Page 8: Push Stick
Always check the tension of the belt every 500 hours of use. Always preform this with the machine unplugged. STATIONARY TABLE GUIDE: To adjust the only the guide for the stationary table, release leaver A and move the guide forward and back. - Page 9 FUNCTIONALITY up to 45º. QUALITY CUT NOTE: Your BMS.3200.IR was adjusted in the factory during its fabrication. In case it needs to be re-adjusted The quality of the cut depends on several factors such because of the transportation or any other reason, as the type of material being cut, the type/quality of follow the following steps.
-
Page 10: Maintenance
TECHNICAL ASSISTENCE For your own safety always check the repairs and adjustments made before using your equipment. Always contact Maksiwa to get recommended technicians and appropriate parts that will work on the equipment and maintain its quality. Before using any extension cords verify if it has any lose or exposed wires.
