INSTALLATION
Connecting an SRR or ICR Remote
Control (Not Included)
The Pro-C controller
is shipped with a
SmartPort wiring
®
harness, allowing for
fast and easy use of
Hunter remote controls.
The remote makes it
possible for contractors
and end users alike
to operate a system
Pre-assembled
without having to walk
back and forth to the
controller.

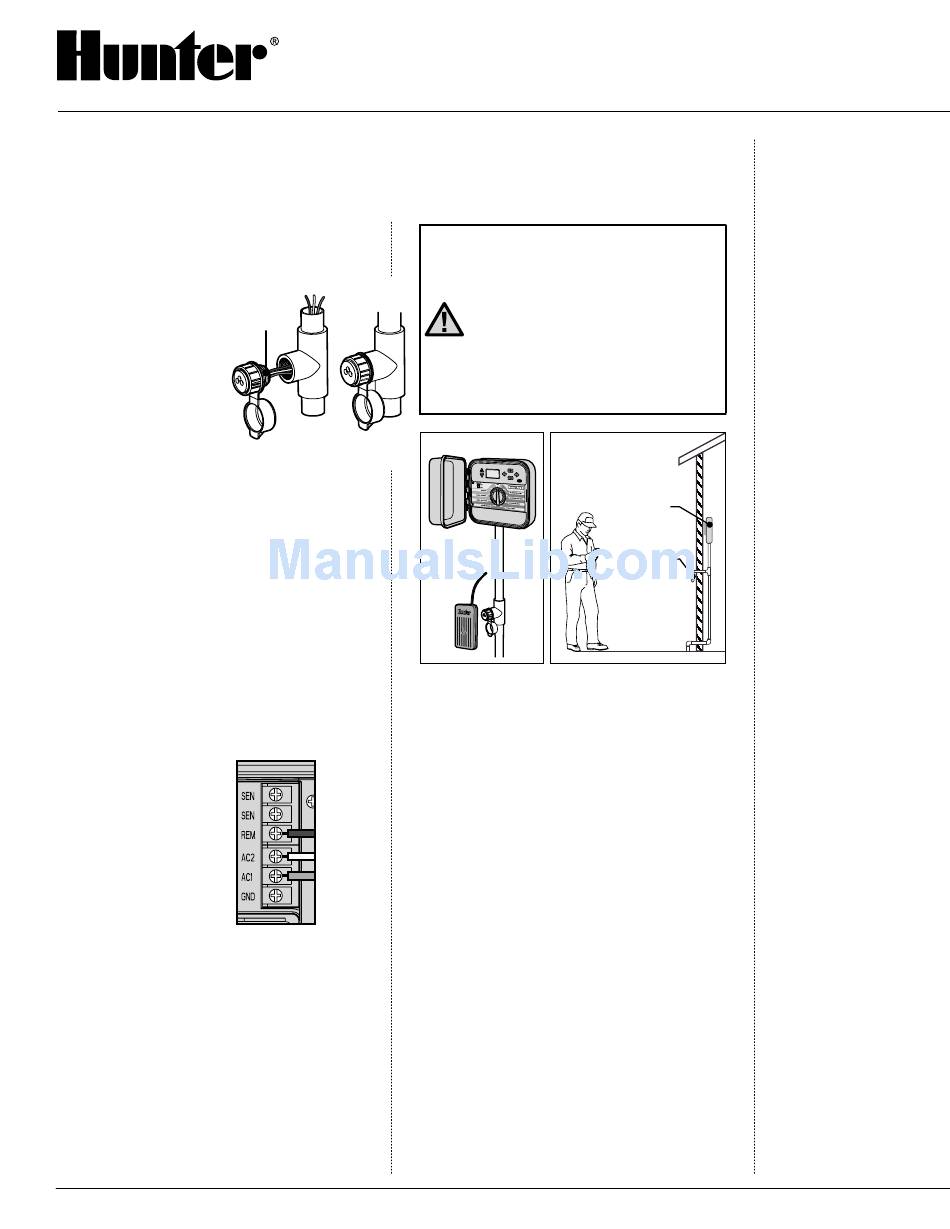

To utilize the SRR or ICR Remote Control
System you must install the SmartPort
1. Install a ½" female threaded "Tee" in the
field wiring conduit approximately
12" below the Pro-C.
2. Feed the red, white, and blue wires of the
harness through the base of the "Tee"
and into the wiring compartment as
shown in Fig. 1.
3. Screw the SmartPort harness housing into
the "Tee" as shown in Fig. 1.
4. Access the terminal
strip area and attach
the red wire to the
bottom most AC
screw slot, attach
the white wire to the
upper AC screw slot
and attach the blue
wire to the screw slot
marked REM.
The SmartPort is now ready for SRR or ICR
remote control use. Please refer to the Ownerʼs
Manual for further information or contact
your local Hunter distributor for ordering
information.
16
(continued)
To Controller
/ " Thread
1
2
Pre-assembled Assembled
Assembled
outlet.
®
Blue
White
Red
NOTE: Any extension of the wiring on the
SmartPort may result in an error message in
®
the controller display and possible malfunction
of the remote unit due to radio interference. In
some situations, lengthening of the harness may
work fine, in others it may not work at all (it is
site specific). In either case, extending the wiring
harness should be done using shielded cable to
minimize the possible effects of electrical noise.
For easiest installation, order a new Hunter
SmartPort shielded cable wiring harness
(part #SRR-SCWH) with a full 25 feet of
shielded cable.
Indoor Installation Outdoor Installation
(Temporary Connection
of Receiver Only)
Power Failures
Due to the possibility of power failures, the
controller has non-volatile memory to preserve
the clock, calendar, and program indefinitely.
There is no default program so there will be no
surprise watering.
Controller
Receiver
