Sonel TKF-13 Operation Manuals

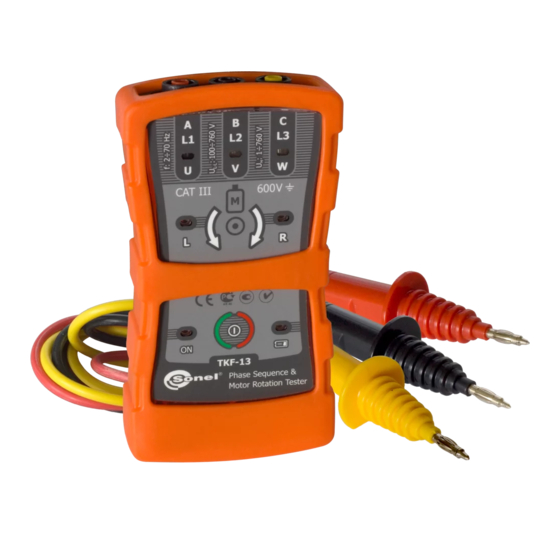

Phase sequence and motor rotation direction tester
Hide thumbs Also See for TKF-13:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKF-13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sonel TKF-13

Summary of Contents for Sonel TKF-13

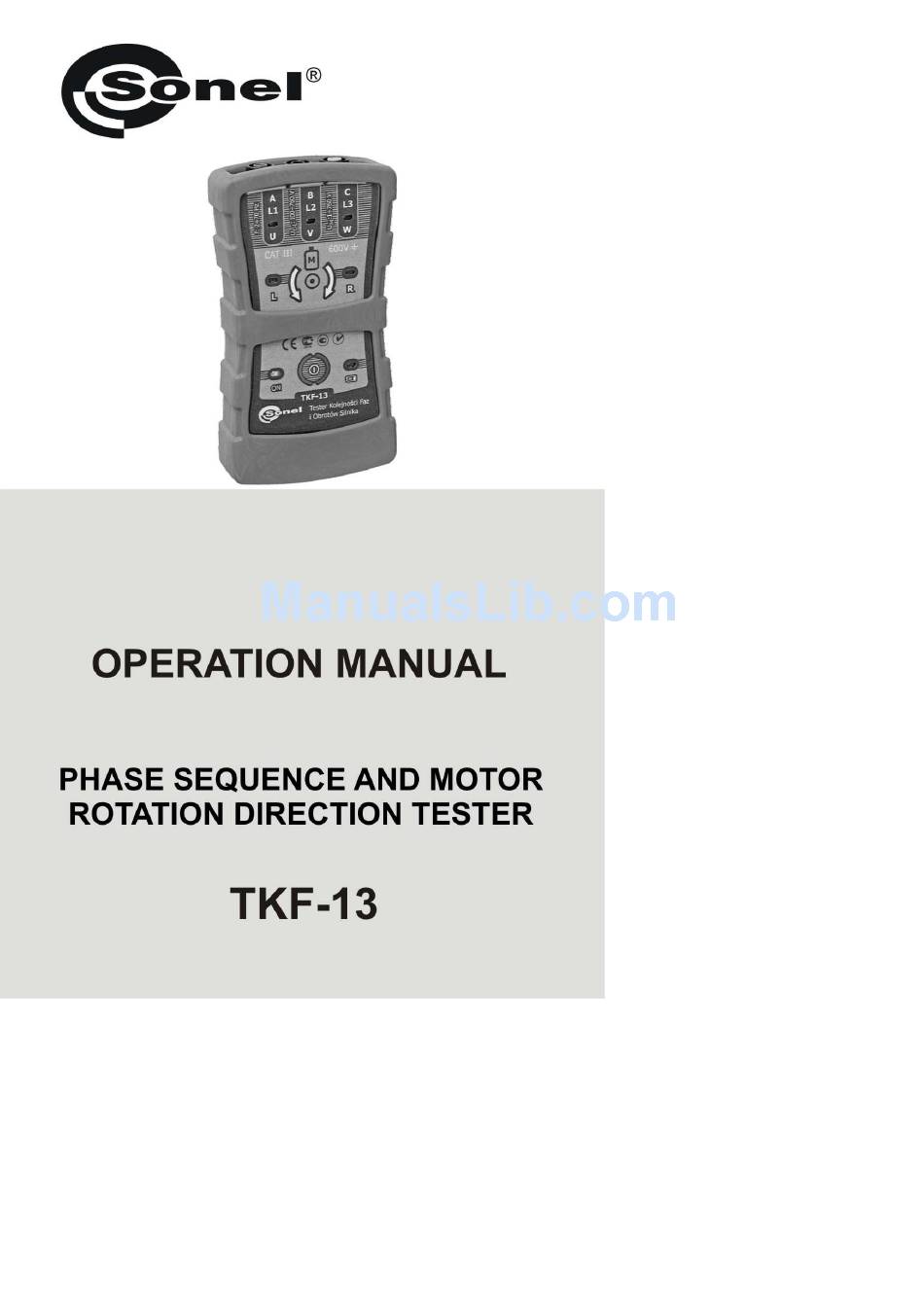

  • Page 3 OPERATING MANUAL PHASE SEQUENCE AND MOTOR ROTATION DIRECTION TESTER TKF-13 v1.5 07.07.2011...

  • Page 4: Table Of Contents

    13. Manufacturer ................. 9 We appreciate your having purchased our phase sequence and motor rotation direction tester. The TKF-13 tester is a modern high- quality, simple and safe device. However it is recommended to get acquainted with the present manual in order to avoid measuring errors and prevent possible problems related to operation of the meter.

  • Page 5: Phase Spin Direction Test

    (broken, cracked, deformed, contaminated, etc.). • The TKF-13 tester may be operated exclusively by qualified personnel who are properly authorised to perform work on electric installations. Should the device be operated by unauthorised personnel, the device may be damaged and there may be a serious danger for the operator.

  • Page 6: Motor Shaft Spin Direction (Using Leads)

    • If the phases at the given measurement points compliant with the L1, L2, L3 description, the R diode of the tester will go on; otherwise the L diode will go on. • The light of the given neon lamp (L1, L2, L3) signalises a voltage exceeding 100V...

  • Page 7: Motor Shaft Spin Direction (Connectionless)

    The green diode should go ON signalling that the device is ready for operation. • Put the rear part of the TKF-13 tester to a working motor along its axis (the position of the axis in accordance with adjacent illustration).

  • Page 8: Power Supply Turn-Off

    • The device has not been designed for the purpose of tests of single-phase commutator motors. • The device has not been designed for the purpose of tests of motors powered through electronic power converters (inverters). Below there is a diagram illustrating the minimum motor diameter for the given revolution and the frequency of the mains at which the indications of the tester are reliable.

  • Page 9: Low Battery Signalling

    6. Battery charge signalling • When the tester detects the battery charge amounts to 10% of its full charge, the battery charge diode starts to blink once a second. Measurements are still possible. • If the battery is discharged, then the battery charge diode is it continuously and it is impossible to perform measurements.

  • Page 10: Dismantling And Utilization

    10. Dismantling and utilization Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be placed with waste of another kind. Worn-out electronic equipment should be sent to a collection point in accordance with the law of worn-out electric and electronic equipment.

  • Page 11: Manufacturer

    • three-phase adapter AGT-63P. 13. Manufacturer The manufacturer of the device, which also provides guarantee and post-guarantee service is the following company: SONEL S.A. ul. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 858 38 60 fax +48 74 858 38 09 E-mail: export@sonel.pl...
