Summary of Contents for Sonel PAT-95
- Page 3 User manual PAT-95 • PAT-96 Portable appliance tester SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.01 12.06.2024...

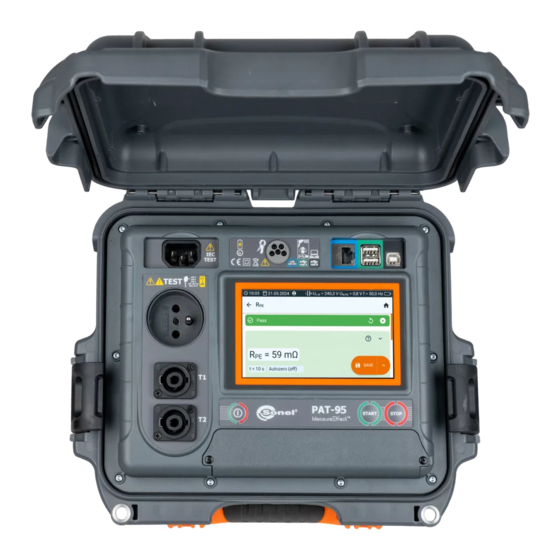

- Page 4 The PAT-95/96 meter is a modern, top quality measuring instrument which is easy and safe to use, provided that the principles presented in this manual are observed. PAT-96 | The icon with the meter name is placed next to sections of the text that refer to specific features of the device.
-
Page 5: Table Of Contents
10.1.7 PAT-96 | Measurement of welding machine voltage without load ..............24 10.2 Operating data ............................25 10.3 Additional data ............................26 10.3.1 Additional uncertainties according to EN IEC 61557-2 (R ) ................26 10.4 Inverter characteristics .......................... 26 11 Manufacturer ..........................27 PAT-95 • PAT-96 │ USER MANUAL... -
Page 6: General Information
• CAT IV – concerns measure- ments performed at the source of low voltage installation. Behaviour of signalling LEDs The LED is on continu- The LED flashes slowly The LED flashes rapidly ously PAT-95 • PAT-96 │ USER MANUAL... -
Page 7: Safety
(for detailed information on the use of adapters see PAT adapter's user manual). • Only accessories for a given device should be used. Using other accessories may cause damage to measuring terminals, introduce additional measurement error and create a risk for the user. PAT-95 • PAT-96 │ USER MANUAL... -
Page 8: General Characteristics
PAT-96 | Measurement of welding machine parameters • Measurement of power P, Q and S • Measurement of current consumption • Measurement of RCD / PRCD parameters • Visual test • IEC cord test PAT-95 • PAT-96 │ USER MANUAL... -
Page 9: Compliance With Standards
- Part 2: Testing Equipment for Tests after Repair, Change or in Case of Repeat Tests. • VDE 0701-0702 Inspection after Repair, Modification of Electrical Appliances. • Repeat Testing of Electrical Equipment. General Requirements for Electrical Safety. • AS/NZS 3760:2010 In-service safety inspection and testing of electrical equipment. PAT-95 • PAT-96 │ USER MANUAL... -
Page 10: Quick Start
You can save measurements in two ways: • by performing a measurement and then assigning it to an object in the memory structure, • entering an object in the memory structure and making a measurement at this memory location PAT-95 • PAT-96 │ USER MANUAL... -
Page 11: Interface
• Turn on the meter (short press) • Turn off the meter (press and hold) • Call up the brightness and volume menu (press briefly when the meter is on) Start measurement Stop measurement PAT-95 • PAT-96 │ USER MANUAL... -
Page 12: Data Transmission
• Sonel PAT Analysis Mobile. The software may be used for many devices manufactured by SONEL S.A. which are equipped with a USB interface. Detailed information is available from the manufacturer and distributors. If the required software has not been purchased with the meter, it may be obtained from the manu- facturer or from an authorised distributor. -
Page 13: Wymiana Bezpieczników
The device is protected by two fast-acting fuses 5 x 20 mm 16 A / 250 V AC. To replace the fuse, unscrew the socket head, place a working fuse in place of the damaged fuse, and then screw on the socket head. NOTE! Do not use fuses other than those listed in this manual. PAT-95 • PAT-96 │ USER MANUAL... -
Page 14: Power Supply
Battery failure. It is recommended to replace Battery status unknown. Contact the customer it with a new one. service centre. Additional information displayed by the meter Battery discharged Charging of the battery is in progress / the battery is charged PAT-95 • PAT-96 │ USER MANUAL... -
Page 15: Battery Power
It is possible to charge the battery when carrying out the measurements. To do this, just connect the power cable to the meter. When the meter is turned off by button or by AUTO-OFF, the charging process is not stopped. PAT-95 • PAT-96 │ USER MANUAL... -
Page 16: General Principles Regarding Using Ni-Mh Rechargeable Batteries
Do not charge or use the batteries in extreme temperatures. Extreme temperatures reduce the lifetime of batteries and rechargeable batteries. Avoid placing devices powered by re- chargeable batteries in very hot environments. The nominal working temperature must be abso- lutely observed. PAT-95 • PAT-96 │ USER MANUAL... -
Page 17: Cleaning And Maintenance
Worn-out electronic equipment should be sent to a collection point in accordance with the regula- tions valid in a given region. Before the equipment is sent to a collection point, do not dismantle any elements. Observe local regulations concerning disposal of packages, waste batteries and rechargeable batteries. PAT-95 • PAT-96 │ USER MANUAL... -
Page 18: Technical Data
Test current: ≥200 mA for R = 0.2 Ω…1.99 Ω • Adjustable upper limit in the range of: 10 mΩ …1.99 Ω with resolution 0.01 Ω • Adjustable measuring time: 3 s…180 s with a resolution of 1 s and option Continuous test PAT-95 • PAT-96 │ USER MANUAL... - Page 19 ≤ 180 V and R ≤ 0.1 Ω • Adjustable upper limit in the range of: 10 mΩ …1.99 Ω with resolution 0.01 Ω • Adjustable measuring time in the range of: 3 s…180 s with resolution of 1 s PAT-95 • PAT-96 │ USER MANUAL...
-
Page 20: Measurement Of Insulation Resistance
Adjustable measuring time: 3 s…3 min with a resolution of 1 s and option Continuous test • Detection of a dangerous voltage before commencing a measurement • Discharging the tested object For R < 250 kΩ the accuracy is not specified. PAT-95 • PAT-96 │ USER MANUAL... - Page 21 Adjustable measuring time: 3 s…3 min with a resolution of 1 s and option Continuous test • Detection of a dangerous voltage before commencing a measurement • Discharging the tested object For R < 1000 kΩ the accuracy is not specified. PAT-95 • PAT-96 │ USER MANUAL...
-
Page 22: Measurement Of Leakage Current
Adjustable upper limit in the range of: 0.01 mA...19.90 mA with resolution of 0.01 mA • Adjustable measuring time in the range of: 1 s…60 s with resolution of 1 s and option Contin- uous test PAT-95 • PAT-96 │ USER MANUAL... - Page 23 Adjustable upper limit in the range of: 0.01 mA…1.99 mA with resolution 0.01 mA • Adjustable measuring time in the range of: 1 s…60 s with resolution of 1 s and option Contin- uous test PAT-95 • PAT-96 │ USER MANUAL...
-
Page 24: Testing Rcds / Prcds
15 mA 5.3 mA…21.0 mA n 0.35 I …1.4 I n n 30 mA 10.5 mA…42.0 mA • Test current flow time: max. 3200 ms • Pulse polarity negative or positive PAT-95 • PAT-96 │ USER MANUAL... -
Page 25: Functional Test
±(5% m.v. + 5 digits) Measurement of current THD Display range Resolution Accuracy 0.00%…999.9% 0.1% ±(5% m.v. + 5 digits) Cosφ measurement Display range Resolution Accuracy 0.00i…1.00i 0.01 ±(5% m.v. + 5 digits) 0.00c…1.00c PAT-95 • PAT-96 │ USER MANUAL... -
Page 26: Pat-96 | Measurement Of Welding Machine Voltage Without Load
Measurement meets the requirements of EN 60974-4 standard Measurement of U voltage Display range Resolution Accuracy (2.5% m.v. + 5 digits) 5.0 V…240.0 V 0.1 V • Measurement meets the requirements of IEC 60974-4 standard PAT-95 • PAT-96 │ USER MANUAL... -
Page 27: Operating Data
EN 61326-1 and cause inter- ferences in other devices. SONEL S.A. hereby declares that the radio device type PAT-95/86 complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following website address: https://sonel.pl/en/download/declaration-of-conformity/... -
Page 28: Additional Data
The current limitation occurs in the first phase of the measurement due to charging the capaci- tance of the tested object The actual test voltage U as a function of the measured insulation resistance R (for maximum test voltage) PAT-95 • PAT-96 │ USER MANUAL... -
Page 29: Manufacturer
The manufacturer of the device and provider of guarantee and post-guarantee service: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com web page: www.sonel.com NOTE! Service repairs must be performed only by the manufacturer. PAT-95 • PAT-96 │ USER MANUAL... - Page 30 NOTES PAT-95 • PAT-96 │ USER MANUAL...
