TP-Link EAP225-Wall Quick Installation Manual

Quick Installation Guide

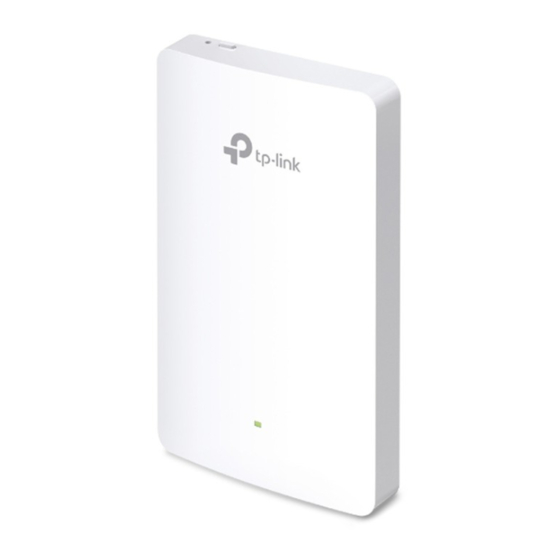

AC1200 Wireless MU-MIMO Wall Plate Access Point
EAP225-Wall

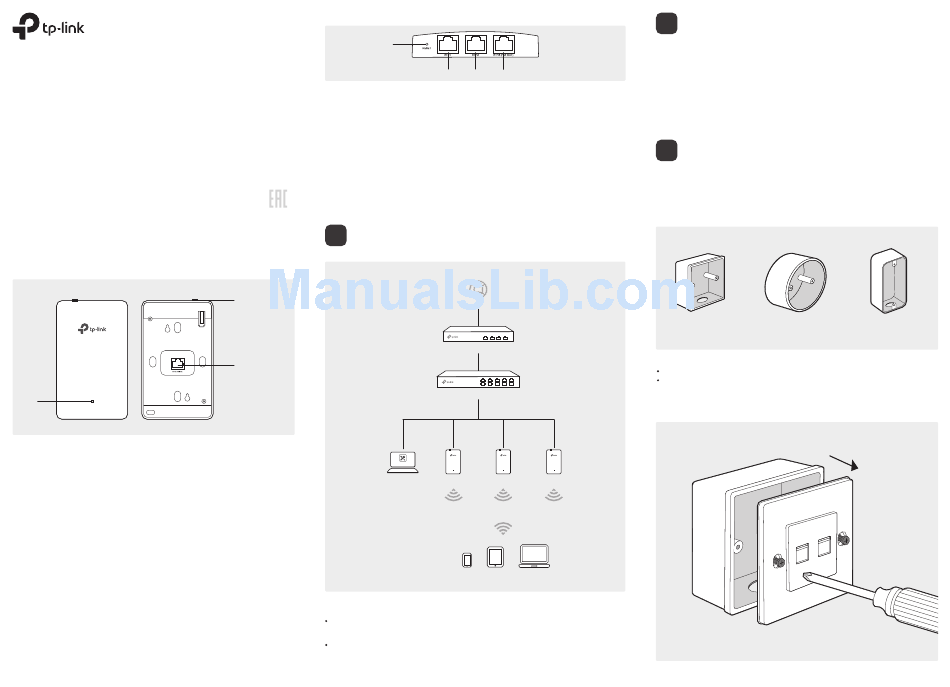

Hardware Overview

Front Panel & Rear Panel
LED
LED Indicator
On: Working normally/Initializing.
Off: Working abnormally/Power off/LED is turned off.
Flashing:
Initialization: The LED flashes twice after initialization is complete.
Upgrade: The LED flashes once per second while upgrading.
Reset: The LED flashes five times in quick session during the reset. The
EAP will then reboot.
ETH0 (PoE IN) Port
Connected to a PSE (Power Sourcing Equipment), such as a PoE switch,
for both data transmission and Power. The device supports 802.3at
inputs.
LED Button
Press the LED button to turn on/off the LED.
Bottom View
RESET
RESET Button
With the device powered on, press and hold the button for 5 seconds to reset
the EAP to its factory defaults.
ETH1 & ETH2 Port
Connected to a client device to transmit data.
ETH3 (PoE OUT) Port
Connected to a client device to transmit data and supply power (PoE
Passthrough). The PoE OUT feature requires 802.3at PoE+ input and the
maximum output is 13W.
Note: To power and connect an 802.3af device to the LAN, you must use
802.3 at PoE+ input.
1

Network Topology

LED Button
ETH0 (PoE IN)
EAP Controller EAP Controller
PC
The EAP225-Wall can only be powered by a PSE device, such as a PoE switch.
Connect the PoE switch to the ETH0 (PoE IN) port with an Ethernet cable.
A DHCP server (typically a router) with DHCP function enabled is required to
assign IP addresses to the EAPs and clients in your local network.
ETH1 ETH2 ETH3 (PoE OUT)
Internet
Router
PoE Switch
EAP EAP EAP
Clients
2
Pre-Installation Checklist
Before installation, be sure that you have the following items:
1. A pre-installed wall junction box
3. A Phillips screwdriver
2. An RJ45 plug 4. A PoE switch
3
Installation Steps
EAP225-Wall can be mounted into an 86mm wall junction box, a standard
EU wall junction box, or a standard US junction box. The junction box should
be pre-installed with a running-in-wall Ethernet cable connected to a PoE
switch.
86mm wall junction box Standard EU wall junction box
Note:
For simplicity, the 86mm wall junction box is used as an example below.
For security reasons, it is recommended not to install the EAP with the louver
downward.
1. Detach the faceplate of the junction box with a Phillips screwdriver.
Standard US wall junction box
