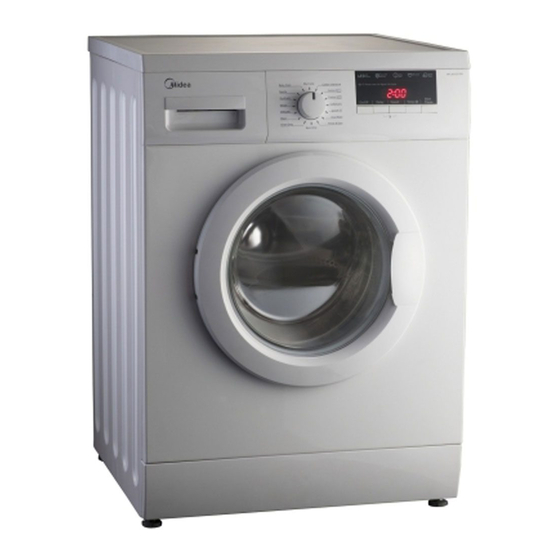

Washing Machine
OWNER'S MANUAL
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MFL80-ES1200
Summary of Contents for Midea MFL80-ES1200
-
Page 1: Washing Machine
Washing Machine OWNER’S MANUAL Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions. -
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Programmes............Washing Programmes Table ........MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ Technical Specifications ......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！ Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... -
Page 4: Installation
SAFETY INSTRUCTIONS sure that your socket is properly and reliably earthed. • Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations. Risk to children! •... - Page 5 SAFETY INSTRUCTIONS result in fire or explosion. • Before hand thoroughly rinse items of washing by hand. Caution! Installing the product! • This washing machine is for indoor use only. • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. •...
-
Page 6: Operating The Appliance
SAFETY INSTRUCTIONS put in or distributed well. • It is forbidden to wash carpets. Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. •... -
Page 7: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... -
Page 8: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface. -
Page 9: Levelling The Washing Machine
INSTALLATION Levelling the washing machine ！ Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor. -
Page 10: Drain Hose
INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. •... -
Page 11: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 12: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)°C.If used under 0°C,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°Cor less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 13: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Cotton 60°... -
Page 14: Control Panel
OPERATIONS Control Panel Model:MFL80-ES1200 Cotton Intensive On/Off ECO Wash Note! • The chart is for reference only, Please refer to real product as standard. -
Page 15: Option
OPERATIONS Start/Pause On/Off Product is switched on or off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. Display The display shows the settings, estimated time remaining, options, and status messages for your washer. - Page 16 OPERATIONS Child Lock To avoid mis operation by children. Delay Speed On/off Start/Pause Press [Delay] and [Speed] 3 sec. till buzzer beep. Caution! • Press the two button 3sec. also to be released the function. • The “Child Lock” will lock all buttons except [ On/Off ]. •...
-
Page 17: Programmes
OPERATIONS Programmes Programmes are available according to thelaundry type. Programmes Cotton To increase the washing effects, main additional washing time is Intensive increased.It is recommended to wash the clothes for babies or worn by the persons with allergic skin. Wash synthetic articles, for example: shirts, coats, blending. While Synthetic washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. -
Page 18: Washing Programmes Table
OPERATIONS Washing Programmes Table Model:MFL80-ES1200 Temp. Programme Load(kg) Default Time Default Speed °C Default 1200 1400 1200 1400 1200 1400 1200 1400 1200 1400 1200 1400 Cotton 1:58 1:58 1:58 1:58 2:00 2:00 1000 1000 1000 1000 1000 1000 Intensive... -
Page 19: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 20: Cleaning The Drain Pump Filter
MAINTENANCES Note! • If the brush is not clean, you can pull out the filter washed separately; • Reconnect, turn on the tap. Clean The Detergent Dispenser 1.Press down the arrow location on softener cover inside the dispenser drawer. 2.Lift the clip up and take out softener cover and wash all grooves with water. 3.Restore the softener cover and push the drawer into position. -
Page 21: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 22: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Dimension Net Weight Rated Power Model Capacity (W*D*Hmm) 8.0kg 595*565*850 68kg 2000W MFL80-ES1200 10 24 10 21... -
Page 23: Product Fiches
MAINTENANCES Model MFL80-ES1200 Capacity 1200/1200/1400 rpm Spin Speed A +++ Energy efficiency class Annual energy consumption 196kWh /annual Power consumption of off - mode 0.5W Power consumption of Left on -mode 1.0W Annual water consumption 11000L /annual Spin- drying efficiency class... - Page 24 MAINTENANCES Note! • Programme setting for testing in accordance with applicable standard En60456. • When using the test programmes, wash the specified load using the maximum spin speed. • The actual parameters will depend on how the applicance is used,and maybe different with the parameters in above mentioned table.
