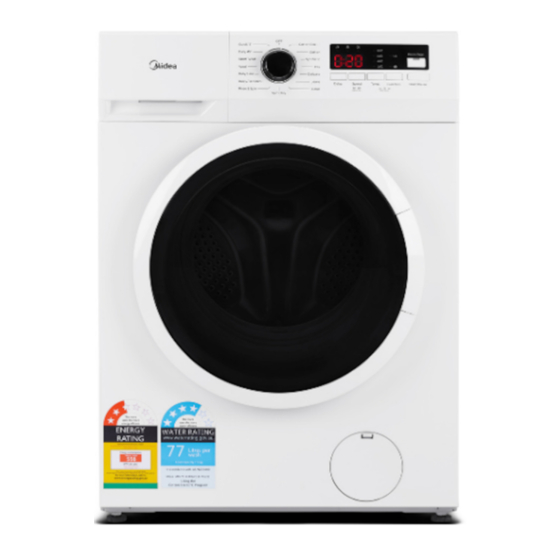

Washing Machine
OWNER'S MANUAL
M FN75-S1403/ C31E-AU(25)
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea MFN75-S1403/C31E-AU(25)
Summary of Contents for Midea MFN75-S1403/C31E-AU(25)
- Page 1 Washing Machine OWNER’S MANUAL M FN75-S1403/ C31E-AU(25) Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATIONS Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............. Programmes ............MAINTENANCES Cleaning And Care ..........Trouble Shooting ............ Technical Specifications ......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! ！... - Page 4 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance the device, unplug the appliance from the mains. • Always unplug the machine and turn off the water supply after use.
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas. • Remove all packages and transport bolts before using the appliance.
- Page 6 SAFETY INSTRUCTIONS • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of damaging appliance! • Your product is only for home use and is only designed for the textiles suitable for machine washing. •...
- Page 7 SAFETY INSTRUCTIONS • Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch,nail,screw or stone etc. may cause serious damages to this machine. • Please check whether the water inside the drum has been drained before opening its door.Please do not open the door if there is any water visible.
-
Page 8: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Supply hose Supply hose hot Drain hose... -
Page 9: Installation
INSTALLATION Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 10 INSTALLATION Levelling the washing machine Warning! ！ • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 11 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose Warning! Warning! ！ ！ • Do not kink or protract the drain hose. •...
-
Page 12: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Washing Main wash Softener... -
Page 13: Before Each Washing
OPERATIONS Before Each Washing • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Dam-board Dam-board Liquid detergent Powder detergent Pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-washing for machines with this function. Programme Programme Bulky/Bedlinen Cotton Eco... -
Page 15: Control Panel
OPERATIONS Control Panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 16 OPERATIONS Option Delay Set the Delay function: 1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.); 3.Press [Start/Pause] to commence the delay operation Delay Setting time Start Choose the Programme Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before starting the programme.
-
Page 17: Other Functions
OPERATIONS Other Functions Temp. ℃, Press the button to regulate the temperature(Cold,20 40℃,60℃,90℃) Speed Press the button to change the speed. 1400: 0-400-600-800-1000-1200-1400 Programme Programme Default Speed(rpm) Default Speed(rpm) 1400 1400 Cotton Eco Rinse & Spin Cotton Bulky/Bedlinen 1400 Synthetic Baby Care 1200 Wool... - Page 18 OPERATIONS Child Lock To avoid mis operation by children. Temp. Function Temp. Choose the Start Press [ ] and [ [Temp.] and [Dry] Temp. Function Programme 3 sec. till buzzer beep. Caution! When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s.
-
Page 19: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Wash synthetic articles, for example: shirts, coats, blending. Synthetic While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. - Page 20 OPERATIONS Programmes Dry Only Select it to dry clothes, the temperature is different .The drying time according to the load . 1Hour W/D For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). When you have an urgent appointment but no more clean shirt left in your cupboard, this program will help you.Time duration is only 1 hour including wash and dry.
-
Page 21: Maintenances
MAINTENANCES Cleaning And Care Warning! ！ • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 22 MAINTENANCES Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 23 MAINTENANCES Cleaning The Drain Pump Filter Warning! ！ • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 24: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly cannot start up Check if the clothes is stuck... -
Page 25: Technical Specifications
MAINTENANCES Technical Specifications Power Supply 220-240V~,50Hz(EU) MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) 7.5kg 595*565*850 68kg MFN75-S1403/C31E-AU(25) 2000W 10 24 10 24... -
Page 26: Testing Methods
MAINTENANCES Testing methods Model: MFN75-S1403/C31E-AU(25) ADDITIONAL INFORMATION FOR Standard performance TESTING: (AS/NZS 2040.1:2005+Amdt1-2007+Amdt2-2009) 1. Water connections:Cold & hot water connection 2. Water supply pressure: 320 kPa 3. Warm wash Program: Cotton Eco 60℃ Display: 5:18/5:52 Cold wash program: Cotton Cold( no temperature display is cold wash) 4.
