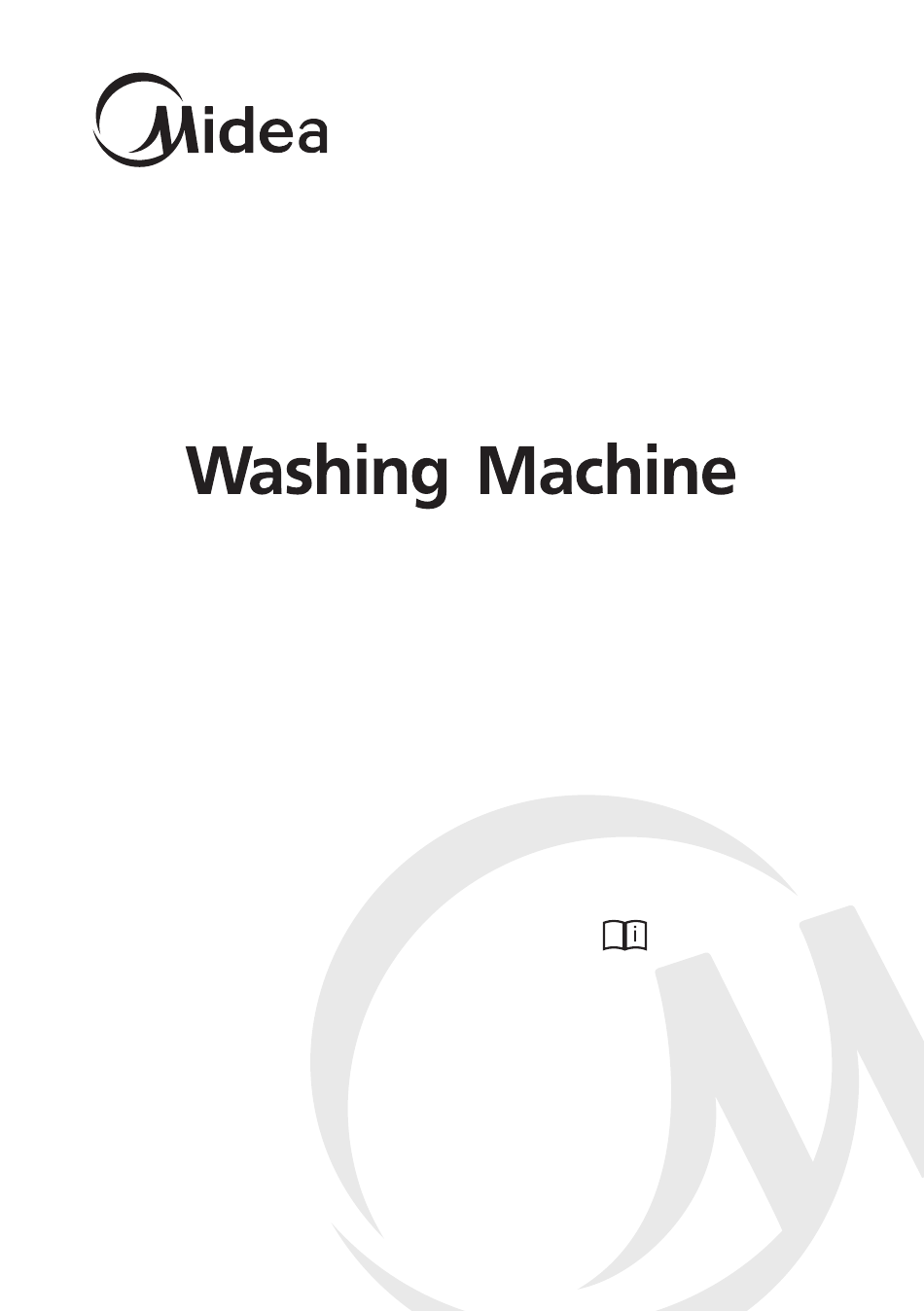

OWNER'S MANUAL
MFL80S14
Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
This manual is for reference only, the factory specifications shall prevail.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFL80S14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MFL80S14

Summary of Contents for Midea MFL80S14

  • Page 1 OWNER’S MANUAL MFL80S14 Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Customer service ........... Technical Specifications .........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Explanation of the symbols: ！...
  • Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years old or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see “Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE •Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. •Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning, maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance Effective from 31 December 2018, the disposal licensing control, import and export permit control and landfill disposal ban in respect of abandoned regulated electrical equipment (REE) have commenced. Any person who is engaged in the storage, treatment, reprocessing or recycling of abandoned REE must obtain a waste disposal licence;...

  • Page 10: Product Description

    INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport 1 x Owner’s manual 1 x Supply hose hole plug...

  • Page 11: Installation

    INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •...
  • Page 12 INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts transport hole plugs.
  • Page 13 INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.

  • Page 14: Operation

    OPERATION Quick Start Caution! • Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 15 OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Close door Plug in Open tap Load Add detergent Note! • Detergent need to be added in case I if the pre-wash function is selected. 2. Washing Select programme Select function or Power On Press remain default...

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-wash function. Programme Programme Rapid 45’ Cotton ECO 40-60 Synthetic Bullky Wool Jeans Rinse &...
  • Page 18 OPERATION Detergent Recommendation Recommended washing Washing Type of laundry and Wash cycles detergent temp. textile Heavy-duty detergent with White laundry made from bleaching agents and 20/30 Cotton,ECO 40-60,Mix,Bulky boil-proof cotton or linen optical brighteners 40/60 Coloured laundry made Colour detergent without Cotton,ECO40-60,Mix,Bulky, Cold/20/ from cotton or linen...

  • Page 19: Control Panel

    OPERATION Control Panel Power Start/Pause Product is switched on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select additional functions and will light when selected. Display The display shows settings, estimated remaining time, options and status messages for your washer.

  • Page 20: Programmes

    OPERATION Programmes Programme Load(kg) Display Time Cotton 3:49 1:30 Synthetic 3:27 Jeans 1:56 Cold Wash 0:58 Allergy Care 2:38 Steam Care 1:57 Quick 15’ 0:15 Rapid 45’ 0:45 ECO 40-60 3:35 Bulky 1:48 Wool 1:07 Rinse & Spin 0:30 Spin Only 0:12 Drum Clean 1:18...
  • Page 21 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Mixed load consisting of textiles made of cotton and synthetics. Synthetic Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
  • Page 22 OPERATION Options Default Default spin speed in rpm Temp.(℃) 1400 Quick 15’ Cold Rapid 45’ ECO 40-60 1400 1000 Bulky Wool 1000 Rinse & Spin Spin Only 1000 Steam Care Allergy Care Cold Wash Cold Jeans 1000 1200 Synthetic 1400 Cotton Drum Clean Note!
  • Page 23 OPERATION Spin Spin When needed, the spinning speed can be adjusted by pressing the Spin button in the following steps: 1400：0-400-600-800-1000-1200-1400 Delay 1. Select a programme 2.Press the Delay button to choose the delaying time 0-24h 3.Press [Start/Pause] to start the delay operation Delay Choose programme Setting time...
  • Page 24 OPERATION Child Lock To avoid mis operation by children. Press [ 3s for Child Lock ] for 3 sec until the buzzer beep. The child lock indicator switches on. Caution! When the Child Lock is activated, the display will alternately show “CL” and the remaining time.

  • Page 25: Maintenance

    MAINTENANCE Cleaning and Care ！ Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 26 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 27 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
  • Page 28 MAINTENANCE Emergency Door Release In case of power failure or other circumstances and door cannot be opened. If it is necessary to open the door under these circumstances, please pull down the pull cord inside emergency door and restore the pull cord after opening the door. Emergency door pull cord pen filter door 2.Using a straight screwdriver...

  • Page 29: Trouble Shooting

    MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck.

  • Page 30: Customer Service

    • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) 63kg MFL80S14 1950W 8.0kg 595*470*850...
