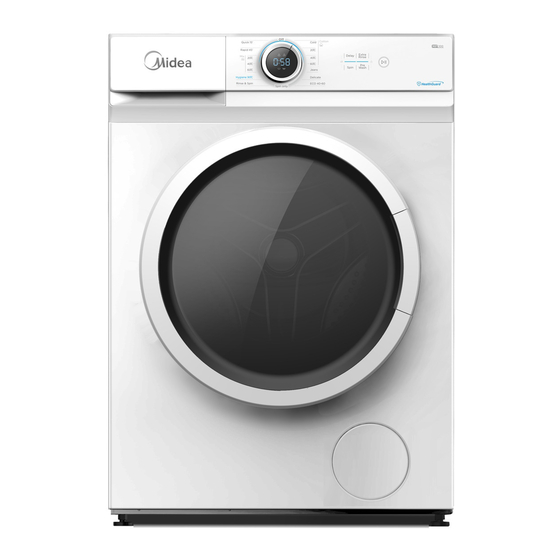

OWNER'S MANUAL
MFL70S12
Read This Manual
Read all instructions and explanations for the
installation before use. Follow the instructions
carefully. Keep the operation instructions handy
for later use. If the appliance is sold or passed
on, ensure that the new owner always receives
this operation instructions.
This manual is for reference only, the factory specifications shall prevail.
Advertisement
Table of Contents
Related Manuals for Midea MFL70S12
Summary of Contents for Midea MFL70S12
- Page 1 OWNER’S MANUAL MFL70S12 Read This Manual Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Customer service ........... Technical Specifications ......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Explanation of the symbols: ！... - Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years old or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Installation
SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see Maintenance - Cleaning of drain pump filter“) to avoid “... - Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
- Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE •Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing. •Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc.
- Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning, maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance Effective from 31 December 2018, the disposal licensing control, import and export permit control and landfill disposal ban in respect of abandoned regulated electrical equipment (REE) have commenced. Any person who is engaged in the storage, treatment, reprocessing or recycling of abandoned REE must obtain a waste disposal licence;...
-
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories 4 x Transport 1 x Owner’s manual Acoustic 1 x Supply hose... -
Page 11: Installation
INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •... - Page 12 INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts transport hole plugs.
- Page 13 INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.
-
Page 14: Operation
OPERATION Quick Start Caution! • Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. -
Page 15: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 16: Detergent Dispenser
OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "case I “after selecting pre-wash function. Programme Programme Spin only Cotton Cold Cotton 20℃ Hygiene 90℃ Cotton 40℃... - Page 17 OPERATION Detergent Recommendation Recommended washing Washing Type of laundry Wash cycles detergent temp. and textile Heavy-duty detergent with White laundry made from bleaching agents and 40 60/ Cotton 40℃, Cotton 60℃, boil-proof cotton or linen optical brighteners Hygiene 90℃ Coloured laundry made Colour detergent without from cotton or linen bleaching agent and optical...
-
Page 18: Control Panel
OPERATION Control Panel Start/Pause Power Product is switched on/off. Press the button to start or pause the washing cycle. Programmes Option This allows you to select an additional Available according to the laundry type. function and will light when selected. Display The display shows the settings, estimated time remaining, options, and status messages for your washer. -
Page 19: Programmes
OPERATION Programmes Programme Load(kg) Display Time 1200 Cotton Cold 2:10 Cotton 20℃ 2:20 2:40 Cotton 40℃ 3:00 Cotton 60℃ 1:48 Jeans 0:50 Delicate 3:28 ECO 40-60 0:12 Rinse & Spin 0:20 Spin Only 2:18 Hygiene 90℃ 1:30 Mix 60℃ 1:20 Mix 40℃... - Page 20 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Washing the baby clothes, it can make the baby wear cleaner Hygiene 90℃ and make the rinse performance better to protect the baby skin. Suitable for washing not very dirty clothes, Rapid 45’...
- Page 21 OPERATION Option Default spin Default Temperature(℃) speed in rpm 1000 1200 Cotton Cold Cold 1000 Cotton 20 1000 ℃ Cotton 40 1000 ℃ Cotton 60 1000 ℃ Jeans 1000 Delicate ECO 40-60 1000 1200 Rinse & Spin 1000 Spin Only 1000 Hygiene 90 ℃...
- Page 22 OPERATION Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once you select it. Delay Set the Delay function: 1.
- Page 23 OPERATION Child Lock To avoid mis operation by children. Extra Rinse Wash Press [Extra Rinse] and [Pre Wash] Start 3 sec. till buzzer beep. Caution! When the Child Lock is activated, the display will alternately show “CL” and the remaining time. Pressing any other button will cause the Child Lock indicator to flash for 3 sec.
-
Page 24: Maintenance
MAINTENANCE Cleaning and Care ！ Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 25 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter needs to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
- Page 26 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
-
Page 27: Trouble Shooting
MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck. -
Page 28: Customer Service
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Washing Dimension Net Weight Rated Power Model Capacity (W*D*Hmm) 7.0kg MFL70S12 55kg 595*400*850 2050W...
