Connecting the Cables

C
ONNECTING A REVOLABS

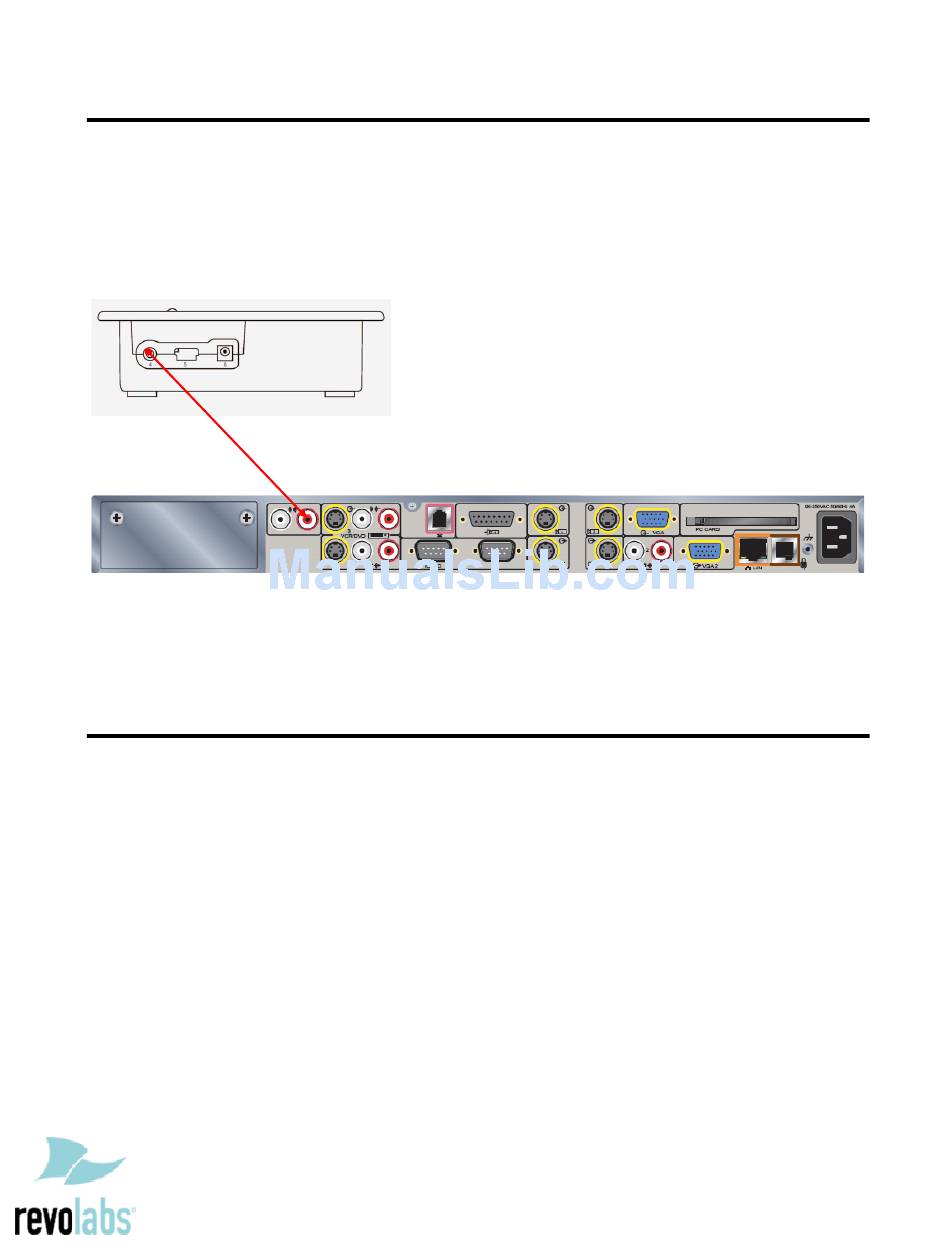

1. Connect a Revolabs 2.5mm to RCA audio cable between the 2.5mm analog
output on the Single Channel System and the red "LINE INPUT" port on the
VSX7000e.

Configuring the VSX7000e Video Codec

C
ONFIGURI NG THE A UDIO MENUS OF THE
1. Select SYSTEM
2. Select ADMIN SETTINGS
3. Select AUDIO
4. Set Red LINE INPUT to AUDIO MIXER
5. ENABLE Echo Canceller
6. DISABLE Polycom microphones by removing checkmark on ENABLE POLYCOM
MICROPHONES
S C S
INGLE HA NNEL YSTEM TO POLYCOM VSX
VSX7000e
7000e
VIDEO CODEC
VIDEO CODEC
