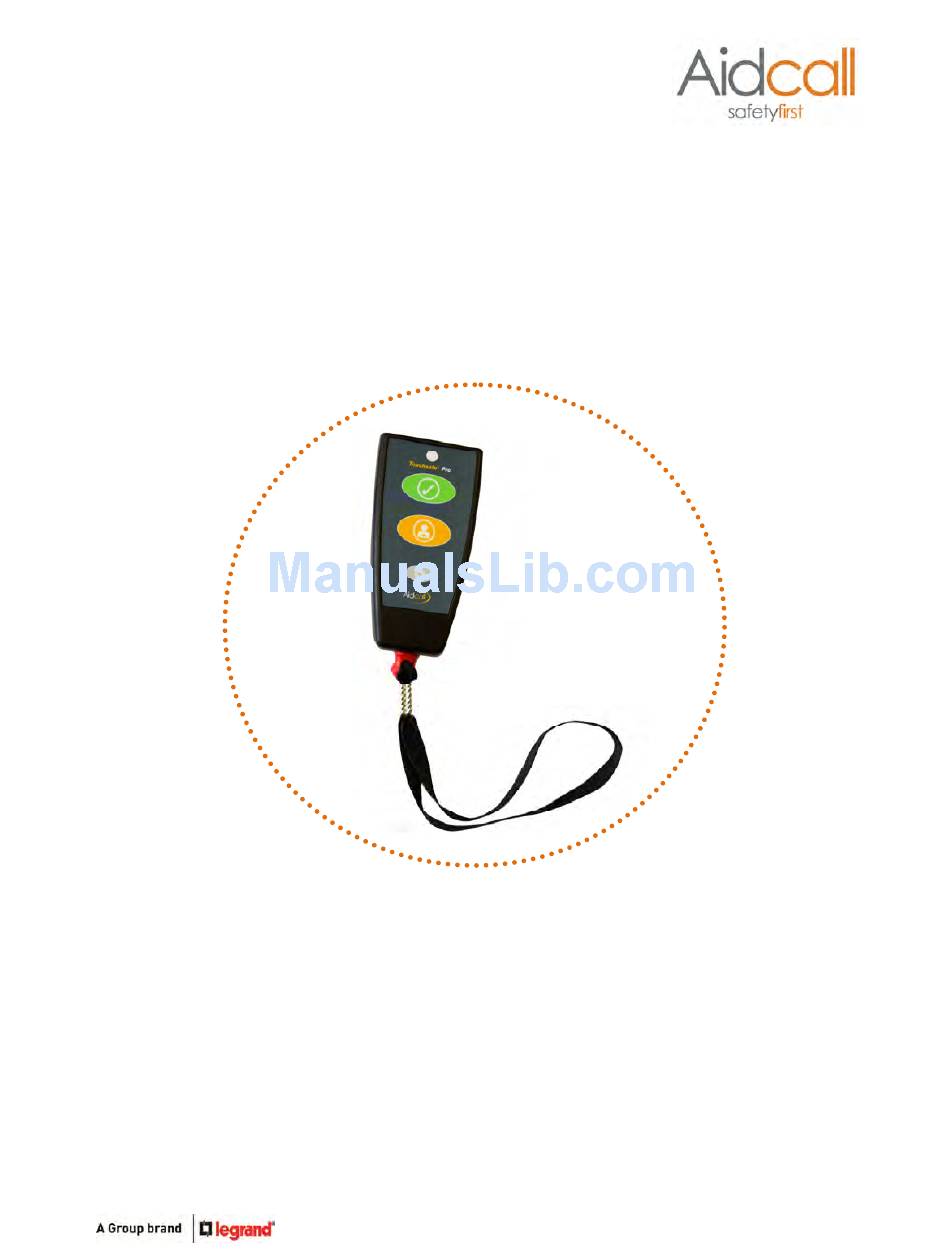

Touchsafe® Pro
Wireless Nursecall System
_________________________________________________________________________________________________
Aidcall operates a policy of continual product improvement and
reserves the right to modify the specification of its products.
If any variation to the details in this document are suspected please
contact Aidcall's Technical Support.
Aidcall, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
T: +44 (0) 1670 357 431 www.aidcall.co.uk
________________________________________________________________
Buddy
User Guide
Doc No. FM5585 issue A Page 1
Advertisement
Table of Contents
Related Manuals for Aidcall Touchsafe Pro
Summary of Contents for Aidcall Touchsafe Pro
- Page 1 Aidcall operates a policy of continual product improvement and reserves the right to modify the specification of its products. If any variation to the details in this document are suspected please contact Aidcall’s Technical Support. Aidcall, a business unit of Legrand Electric Ltd Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF. T: +44 (0) 1670 357 431 www.aidcall.co.uk ________________________________________________________________ ...
-
Page 2: Table Of Contents
CONTENTS Section Topic Page 1 Product Overview 2 2 Important Safety Instructions 3 3 Regulatory Information 4 4 Maintenance & Care 4 5 Buddy Features 5 6 Staff ID Setup 6 7 Nurse Present Operation 7 8 Assistance Call Operation 8 9 Nurse Call Operation 9 10 Emergency Call Operation 10 ... -
Page 3: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Read and understand these instructions before use. Keep these instructions for future reference. Do not disassemble this product or attempt to repair it yourself. No user serviceable parts inside. Refer all servicing to qualified service personnel. This product should only be powered by 1 x 3.7V ½ AA size Lithium Thionyl Chloride battery. Under no circumstances should this product be powered from another power source. Insert the battery in accordance with the polarity symbol inside the battery holder. Only use manufacturer approved ½ AA size 3.7V battery as identified in this manual. Do not expose to direct sunlight. Do not submerge in water and do not use in damp or humid conditions. Do not expose to dripping or splashing water. As with any electronic equipment take care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard. Do not drop or expose to high vibration or shock. Clean with a hard‐surface disinfectant wipe or a damp cloth and a non‐abrasive cleaning product. Polish with a dry duster. DO NOT use a wet cloth. Avoid using harsh, abrasive or corrosive cleaning agents or detergents (e.g. scouring powders, bleaches, polishes, etc.) when cleaning this product. At the end of its life this product should be disposed of and recycled in accordance with the environmental regulations. See the Regulatory Information in section 3 below. ... -
Page 4: Regulatory Information
3. REGULATORY INFORMATION This symbol on the product indicates it complies with all relevant EU Directives as required by law. Safety of Information Technology Equipment; EN 60950‐1:2006+A12:2011 Electro Magnetic Compatibility; EMC 2004/108/EC Restriction of Hazardous Substances; RoHS 2011/65/EU A copy of the complete Declaration of Conformity is available from Aidcall. This symbol on the product indicates it is classed as Electrical or Electronic Equipment and should not be disposed of with other commercial waste at the end of its working life. The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using the best available recovery and recycling techniques to minimise impact on the environment, treat hazardous substances and avoid increasing landfill. For product disposal please contact your supplier and check the terms and conditions of the purchase contract and ensure this product is not mixed with other commercial waste for disposal. This symbol on batteries indicates separate collection. Batteries contain chemicals that can be hazardous to health and the environment and should not be disposed of in the waste bin. The EU Directive (2006/6/EC) has been put in place to ensure the safe disposal and recycling of batteries. Return used batteries to your supplier or drop‐off at your local municipal waste recycling depot. NTENTS 4. MAINTENANCE & CARE ... -
Page 5: Buddy Features

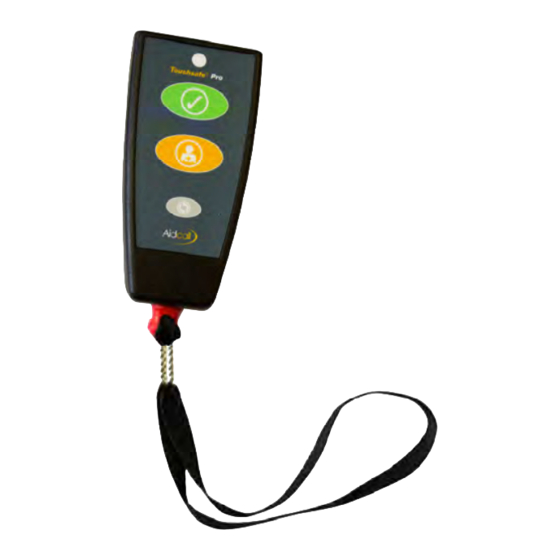

5. BUDDY FEATURES The key features of the Buddy are identified below; Aidcall Part No. ZNC695 Reassurance LED Green = Normal Green Nurse Present Button = Low Battery Warning Orange Nurse Call Button Belt Clip on Rear Light Grey Cancel Button Red Emergency Pull‐Pin Wrist Lanyard ... -
Page 6: Staff Id Setup
6. STAFF ID SETUP You can assign each staff members name to their Buddy ID in the Master Nursecall Panel. This means the staff members name will be recorded in the system log alongside each event they’ve dealt with. On the Master Panel, touch the Log On button and an “Enter Password” box will appear on the screen as shown alongside… Touch the symbol and choose the Manager Log On option from the pull down box. Enter the required password (4 digits) using the keypad and touch the Log On button in the bottom left hand corner of the keypad. The screen will change to show the parameters available for the Manager Log On – see below; Managers Log On Sceen Touch the Staff ID button and the screen will change as shown below... ... -
Page 7: Nurse Present Operation
7. NURSE PRESENT OPERATION On a routine visit; press the Green Present button on your Buddy ‐ the red LED on the Call Point will flash once and the unit will beep once. This will notify Nurse Present on the Nursecall panel. Or, if you are responding to a call; press the Green Present button on your Buddy ‐ the red LED on the Call Point will go out and the beep will stop. This will notify Nurse Present on the Nursecall panel. CALLING NURSE PRESENT HC. 345 ID. 001 Point the Buddy towards the Call Point and press the Green Present button to register “Nurse Present” Note: the Buddy must be within 1.5 metres of the Call Point ... -
Page 8: Assistance Call Operation
8. ASSISTANCE CALL OPERATION After pressing the Green button to register Nurse Present you can press the Orange Nurse Call button to request Assistance. After a short delay the Red LED will start to flash on the Call Point and the unit will beep to indicate the call has been received on the Nursecall panel. The Red LED will flash and the unit will beep when a CALLING call for assistance is made ASSISTANCE HC. 345 ID. 001 Point the Buddy towards the Call Point and press the Orange Nurse Call button to request “Assistance” Note: the Buddy must be within 5 metres of the Call Point ... -
Page 9: Nurse Call Operation
9. NURSE CALL OPERATION You can point the Buddy towards any Call Point at any time and press the Orange Nurse Call button to initiate a call. After a short delay the Red LED will start to flash on the Call Point and the unit will beep to indicate the call has been received on the Nursecall panel. The Red LED will flash and the unit will beep when a CALLING call is made CALL HC. 345 ID. 001 Point the Buddy towards any Call Point and press the Orange Nurse Call button to activate a call Note: the Buddy must be within 5 metres of the Call Point ... -
Page 10: Emergency Call Operation
10. EMERGENCY CALL OPERATION To make an emergency call pull the Red Pull‐Pin out of the bottom of the Buddy using the lanyard, after a short delay the Red LED will start to flash on the Call Point and the unit will beep to indicate the call has been received on the Nursecall panel. The Red LED will flash and the unit will beep when a CALLING call for help is made EMERGENCY HC. 345 ID. 001 Pull the Red Pull‐Pin out of the Buddy and point it towards the Call Point to make an Emergency call Note: the Buddy must be within 5 metres of the Call Point Hard Tug ... -
Page 11: To Cancel A Call
11. TO CANCEL A CALL Press the small Light Grey button on your Buddy ‐ this will cancel the call off the Nursecall panel. Note: the Light Grey button on the Call Point can also be used to cancel the call. CALLING CANCEL HC. 345 ID. 001 Point the Buddy towards the Call Point and press the small Light Grey button to cancel the call Note: the Buddy must be within 1.5 metres of the Call Point ... -
Page 12: Replacing The Battery
the battery performance if left for long periods and there may be several months of battery life remaining. When the low battery warning starts the battery will continue to function for a short period but always arrange for its replacement as soon as possible. To replace the battery, remove the screw from the rear of the Buddy and carefully remove the top cover. Note: the lid will remain attached on the keypad tail. Remove the battery from its holder on the PCB inside the Buddy base. Note: Buddy programming is retained when the battery is removed/replaced. Used batteries must not be disposed of in domestic waste. Do not incinerate or mutilate used batteries, the chemicals released are corrosive and my cause injury to eyes or skin and may be toxic if inhaled. Only replace with Manufacturer Approved battery type: 3.7V ½ AA Size Lithium Thionyl Chloride Replacement batteries are available from Aidcall; order Part No. F00171 IMPORTANT: always mark the battery with the date it was replaced for reference on future Service visits. INSIDE BUDDY BASE Undo Refit Screw Buddy and Lid Remove and Lid from Replace ...
