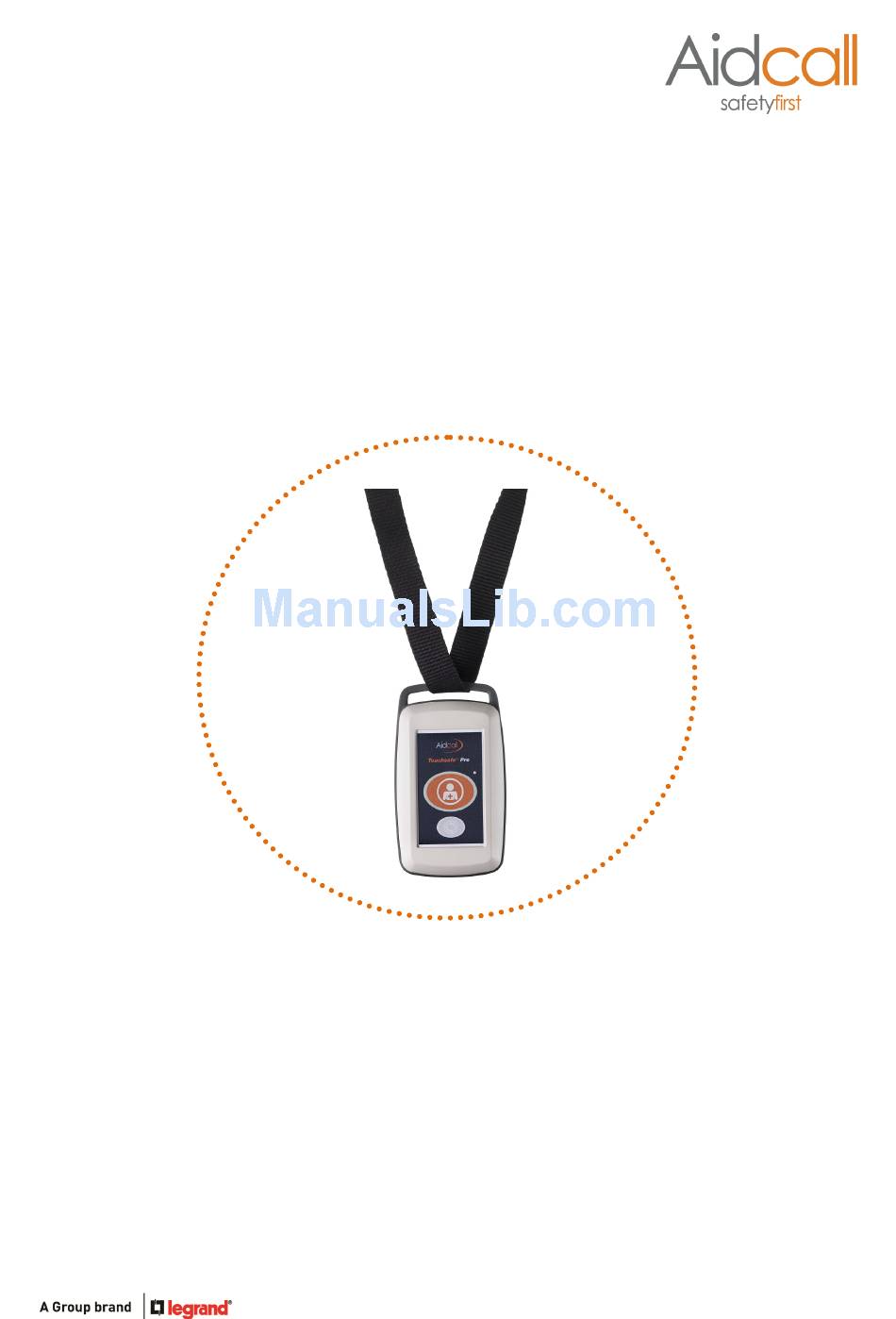

Aidcall Touchsafe Pro Pendant User Manual

Wireless nursecall system pendant v3.00a

Advertisement

Touchsafe® Pro
Wireless Nursecall System
_________________________________________________________________________________________________































Aidcall operates a policy of continual product improvement and
reserves the right to modify the specification of its products.

If any variation to the details in this document are suspected please
contact Aidcall's Technical Support.






Aidcall, a business unit of Legrand Electric Ltd

Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.

T: +44 (0) 1670 357 431   www.aidcall.co.uk

________________________________________________________________
Pendant V3.00a
User Guide

Doc No. FM5545 issue B Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touchsafe Pro Pendant and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aidcall Touchsafe Pro Pendant

  • Page 1                                         Aidcall operates a policy of continual product improvement and  reserves the right to modify the specification of its products.     If any variation to the details in this document are suspected please  contact Aidcall’s Technical Support.               Aidcall, a business unit of Legrand Electric Ltd    Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.     T: +44 (0) 1670 357 431   www.aidcall.co.uk     ________________________________________________________________  Doc No. FM5545 issue B Page 1   ...
  • Page 2: Table Of Contents

    CONTENTS       Section  Topic  Page        1  Product Overview  2  2  Important Safety Instructions  3  3  Regulatory Information  4  4  Maintenance & Care  4  5  Pendant Features  5  6  Pendant Operation  6  7  Replacing the Battery  7      CONTENTS   1.  PRODUCT OVERVIEW    Touchsafe Pro Pendants are battery powered and communicate via two‐way radio transmissions to ensure  all calls are transmitted and received correctly. The Pendant will raise a standard call on the Nursecall  system; the call can only be cancelled by locating the Pendant and pressing the cancel button.  ...
  • Page 3: Important Safety Instructions

    2.  IMPORTANT SAFETY INSTRUCTIONS     Read and understand these instructions before use. Keep these instructions for future reference.  Do not disassemble this product or attempt to repair it yourself.     No user serviceable parts inside. Refer all servicing to qualified service personnel.    This product should only be powered by 1 x 3.7V ½ AA size Lithium Thionyl Chloride battery.   Under no circumstances should this product be powered from another power source.     Insert the battery in accordance with the polarity symbol inside the battery holder.   Only use manufacturer approved ½ AA size 3.7V battery as identified in this manual.     Do not expose to direct sunlight.     Do not submerge in water and do not use in damp or humid conditions.    Do not expose to dripping or splashing water. As with any electronic equipment take care not to spill  liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.      Do not drop or expose to high vibration or shock.      Clean with a hard‐surface disinfectant wipe or a damp cloth and a non‐abrasive cleaning product.   Polish with a dry duster. DO NOT use a wet cloth.       Avoid using harsh, abrasive or corrosive cleaning agents or detergents (e.g. scouring powders, bleaches,  polishes, etc.) when cleaning this product.        At the end of its life this product should be disposed of and recycled in accordance with the  environmental regulations. See the Regulatory Information in section 3 below.         ...
  • Page 4: Regulatory Information

    3.  REGULATORY INFORMATION       This symbol on the product indicates it complies with all relevant EU Directives as required by law.  Radio & Telecommunication Terminal Equipment; R&TTE Directive 1999/5/EC  Safety of Information Technology Equipment; EN 60950‐1:2006+A12:2011  Electro Magnetic Compatibility; EMC 2004/108/EC  Restriction of Hazardous Substances; RoHS 2011/65/EU  A copy of the complete Declaration of Conformity is available from Aidcall.      This symbol on the product indicates it is classed as Electrical or Electronic Equipment and should not be  disposed of with other commercial waste at the end of its working life.    The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place  to recycle products using the best available recovery and recycling techniques to minimise impact on the  environment, treat hazardous substances and avoid increasing landfill.    For product disposal please contact your supplier and check the terms and conditions of the purchase  contract and ensure this product is not mixed with other commercial waste for disposal.       This symbol on batteries indicates separate collection. Batteries contain chemicals that can be    hazardous to health and the environment and should not be disposed of in the waste bin.     The EU Directive (2006/6/EC) has been put in place to ensure the safe disposal and recycling of  batteries.            Return used batteries to your supplier or drop‐off at your local municipal waste recycling depot.        NTENTS   4.  MAINTENANCE & CARE ...
  • Page 5: Pendant Features

    5.  PENDANT FEATURES    The key features of the Pendant are identified below;                          Aidcall Part No. ZNC665        Neck Lanyard     with Safety Closure                      Red Call Reassurance LED   Orange Call Button      Light Grey Cancel Button   ...
  • Page 6: Pendant Operation

    6.  PENDANT OPERATION    To make a call press the Orange button once, after a short delay the Red LED will start to flash to indicate  the call has been received on the Nursecall panel.              The Red LED will flash  Press the Orange button    when a call is made  to activate a call            NURSECALL PANEL DISPLAY    The Nursecall panel will display the call like this…            The screen banner is orange for a Pendant call.  Touch the banner to display Client Notes.  Press the Accept button on the banner to silence the alarm   and notify all other panels the call is being dealt with.  The screen banner changes to purple when a call is accepted.    TO CANCEL THE CALL      You must locate the    Pendant and press the ...
  • Page 7: Replacing The Battery

            Always replace the battery within 72 hours of a low battery warning.    If the warning changes to CRITICAL replace the battery IMMEDIATELY.         To replace the battery, remove the 2 screws on the rear of the Pendant and carefully remove the top cover.  Note: the lid will remain attached on the keypad tail. Remove the battery from the retaining clips on the  PCB inside the Pendant base.    Used batteries must not be disposed of in domestic waste. Do not incinerate or mutilate used  batteries, the chemicals released are corrosive and my cause injury to eyes or skin and may be    toxic if inhaled.    Only replace with Manufacturer Approved battery type: 3.7V ½ Size AA Lithium Thionyl Chloride   Replacement batteries are available from Aidcall; order Part No. F00171                INSIDE PENDANT BASE            Refit  Undo     Pendant  2 Screws    Back ...
