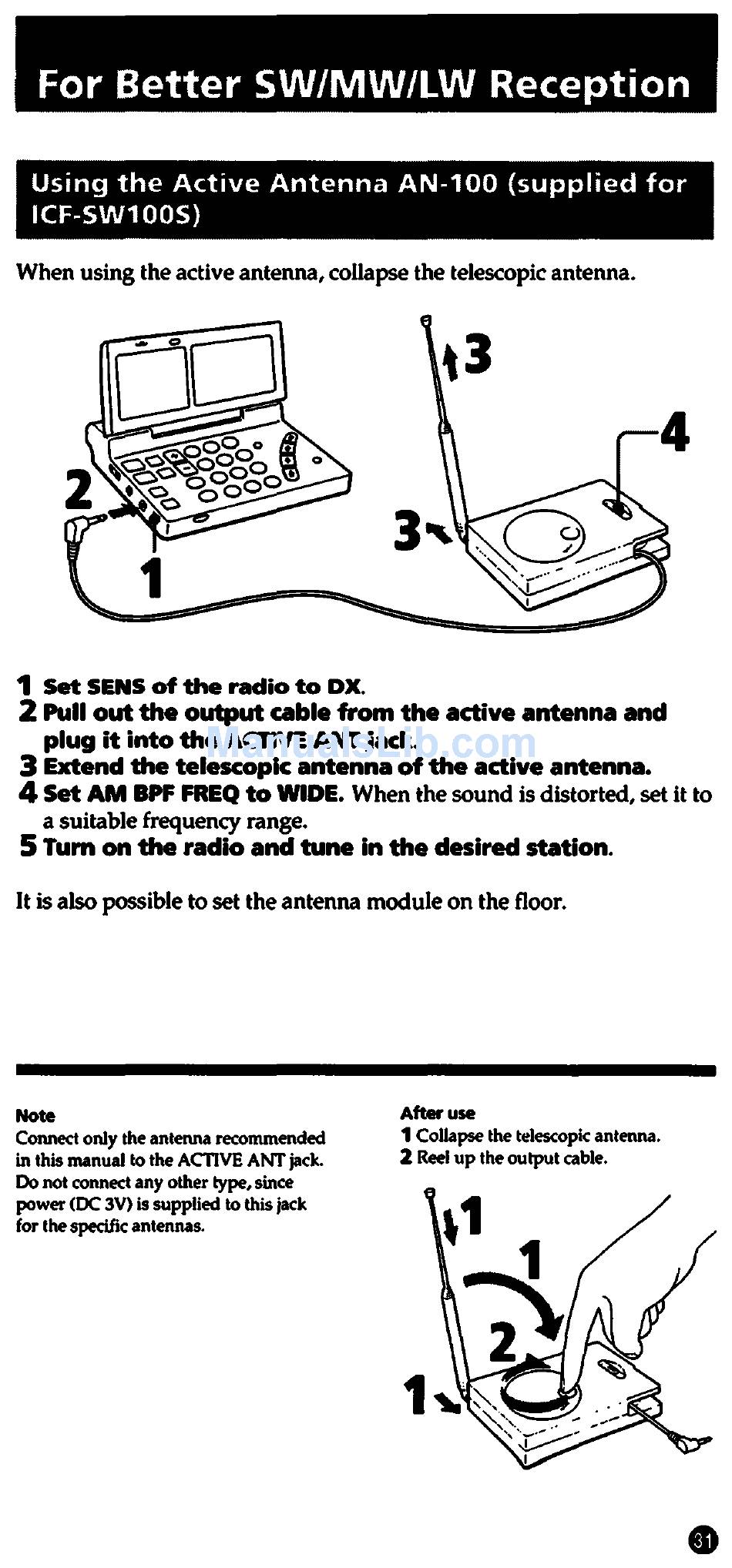

For Better SW/MW/LW Reception
Using the Active Antenna AN-100 (supplied for
ICF-SW1005)
When using the active antenna, collapse the telescopic antenna.
1
Set SENS
of
the radio to DX.
2
Pull out
the
output cable from the active antenna and
plug it into the
ACTIVE ANT
jack.
3
Extend the telescopic antenna of the active antenna.
4
Set AM BPF FREQ
to
WIDE.
When the sound is distorted, set it to
a suitable frequency range.
5
Tum on
the
radio and tune in the desired station.
It is also possible to set the antenna module on the floor.
Note
Connect only the antenna recommended
in this manual to the
ACTIVE ANT
jack.
Do not connect any other type, since
power (DC 3V) is supplied to this jack
for the specific antennas.
After
use
1
Collapse the telescopic antenna.
2
Reel up the output cable.
•
