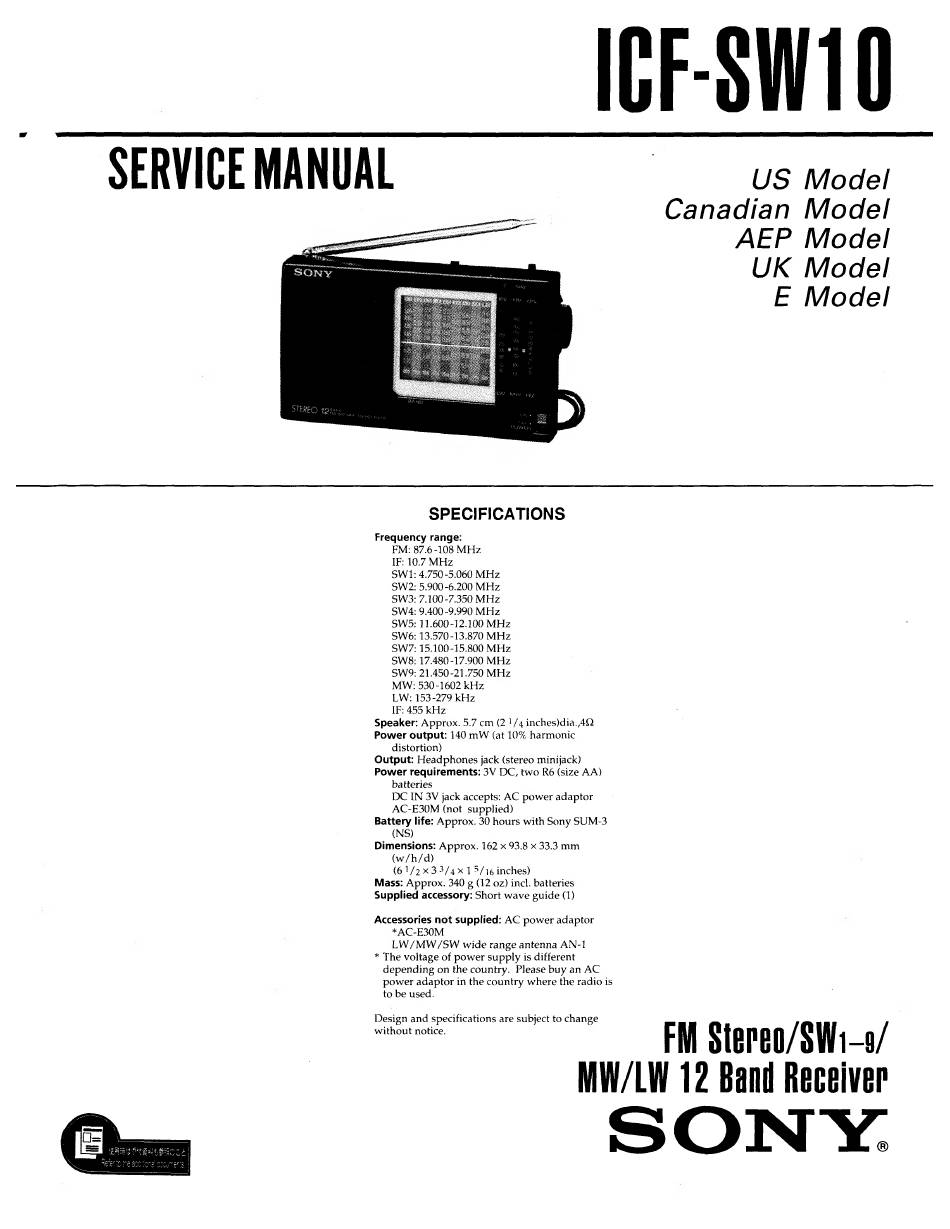

Sony ICF-SW10 Service Manual

ICF-SW10
SERVICE MANUAL | US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
Frequency range:
FM: 87.6 -108 MHz
IF: 10.7 MHz
SWI: 4.750 -5.060 MHz
SW2: 5.900 -6.200 MHz
SW3: 7.100 -7.350 MHz
SW4: 9.400 -9.990 MHz
SW5: 11.600 -12.100 MHz
SW6: 13.570-13.870 MHz
SW7: 15.100-15.800 MHz
SWS: 17.480 -17.900 MHz
SW9: 21.450 -21.750 MHz
MW: 530-1602 kHz
LW: 153-279 kHz
IF: 455 kHz
Speaker: Approx. 5.7 cm (2 !/4 inches)dia..4Q
Power output: 140 mW (at 10% harmonic
distortion)
Output: Headphones jack (stereo minijack)
Power requirements: 3V DC, two R6 (size AA)
batteries
DC IN 3V jack accepts: AC power adaptor
AC-E30M (not supplied)
Battery life: Approx. 30 hours with Sony SUM-3
(NS)
Dimensions: Approx. 162 x 93.8 x 33.3 mm
(w/h/d)
(61/2 x 33/4 x 15/16 inches)
Mass: Approx. 340 g (12 oz) incl. batteries
Supplied accessory: Short wave guide (1)
Accessories not supplied: AC power adaptor
*AC-E30M
LW/MW/SW wide range antenna AN-1
* The voltage of power supply is different
depending on the country. Please buy an AC
power adaptor in the country where the radio is
to be used.
Design and specifications are subject to change
wamowt nats FM Stereo/SWi-9/
