Summary of Contents for Hisense LCDF0035

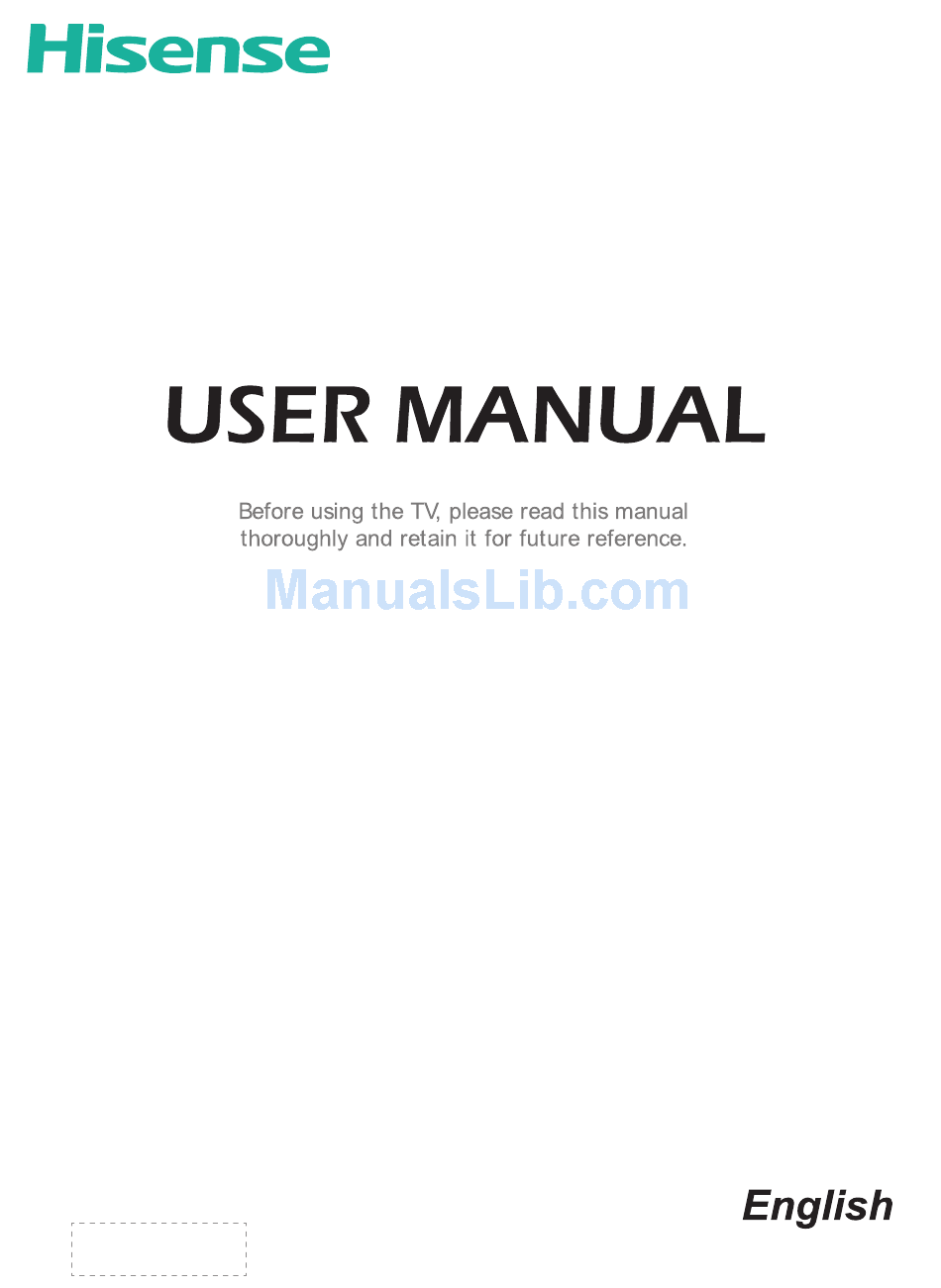

- Page 1 ES-G 条形码定位框 35x10.5mm 物料号：...
-
Page 2: Fcc Statement
HDMI Licensing LLC. Hisense and associated logos where applicable are registered trademarks of Hisense Group in the United States and/or other countries. All other trademarks are property of their respective owners. © 2013 Hisense USA, Corporation. - Page 4 Important Safety Instructions 1. Read these instructions. 16. An outside antenna system should not be located in the 2. Keep these instructions. vicinity of overhead power lines or other electric light or 3. Heed all warnings. power circuits, or where it can fall into such power lines 4.
-
Page 5: Power Source
Important Safety Instructions 22. When you connect the product to other equipment, turn LCD Panels are manufactured using an extremely high off the power and unplug all of the equipment from the level of precision technology, however sometimes parts wall outlet. Failure to do so may cause an electric shock of the screen may be missing picture elements or have and serious personal injury. -
Page 8: When Installing The Tv Against A Wall Or Enclosed Area
Important Safety Instructions When Installing the TV Against a Wall or Enclosed Area Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below Inadequate air 41°F (5°C). Install with stand Install on the wall 12 inches... -
Page 9: Table Of Contents
Contents Getting Started Viewing the Remote Control ................3 Pairing the Remote ..................4 Installing Batteries in the Remote Control ............4 Making Connections ..................5 Turning the TV on or off .................. 11 Changing Channels / Volume ................. 11 Turning the TV On for the First Time .............. -
Page 10: Getting Started
Getting Started Viewing the Remote Control Keys on the front of the remote control MIC: Receive the voice Mute the sound Power Off/On INPUT Select inputs TV: Display the TV Media: Launch the Multi-Media player. History: Display the applications History Apps: Launch the all applications screen. -
Page 11: Pairing The Remote
3. Select Find nearby devices to search the remote control, and the remote control will appear in available devices, then press [▲/▼] button to select the Hisense Vision Remote Control and press [OK] to pair. Using the Air Mouse and Voice Input The remote control supports air mouse and voice input (requires remote control pairing). -
Page 12: Making Connections
Getting Started Making Connections NOTES Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure. Not all A/V devices have the ability to connect to a TV, please refer to the user manual of your A/V device for compatibility and connection procedure. -
Page 13: Connecting A Headphone
Getting Started Connecting an A/V Device with Component (YP ) Cable 1. Use a component cable to connect the external A/V device’s component output jacks to the TV’s YP jacks. Use an audio cable to connect the external A/V device’s component audio jacks to the TV’s AUDIO (L/R) jacks. 2. - Page 14 Getting Started Connecting a PC with VGA Cable 1. Use a VGA cable to connect the PC’s VGA output jack to the TV’s VGA jack. Use an audio cable to connect the PC’s audio output jack to TV’s PC/DVI AUDIO IN jack. 2.
-
Page 15: Connecting To A Wired Network
Getting Started Connecting to a Wired Network You can attach your TV to your LAN by one of the three following ways: You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 LAN cable. -
Page 16: Connecting To A Wireless Network
IEEE 802.11n router. When you play video over a IEEE 802.11b/g connection, the video may not play smoothly. NOTES You must use the Hisense’s built-in Wireless LAN Adapter to use a wireless network, the set doesn’t support external USB network adapter. - Page 17 Getting Started 3. Press button, go to Settings > Local Settings > HDMI settings to configure the HDMI CEC function. Control for HDMI: Allow the TV to control compatible HDMI devices. Device auto power off: When HDMI CEC is enabled, this function turns off HDMI CEC devices when you turn off your TV. TV auto power on: When HDMI CEC is enabled and you turn on an HDMI CEC device, this function turns on your TV automatically.
-
Page 18: Turning The Tv On Or Off
Step 3 When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power Legal notice Hisense legal information. cord. It may take 15-20 seconds for the TV to be ready after Step 4 pressing the power button. -
Page 19: Settings
Settings Accessing the Main Menu You can change various settings for your TV from the Settings menu. Settings press WIRELESS & NETWORKS Wi- Fi Ethernet Bluetooth You can also access the Settings menu from the menu that appears Status & Others when the Home menu is displayed. -
Page 20: Setting Up Channels
Settings SYSTEM System information. Date, time & location Set date, time, time zone and formats. Accessibility Manage accessibility options. Developer options Developer use options. About TV System information. Setting up channels Network Channel Settings Tuner mode WIRELESS & NETWORKS Antenna Wi- Fi AUTO CHANNEL SEARCH Ethernet... -
Page 21: Parental Control
Settings Ethernet You can adjust: 1 Press button to display the Settings menu. Use the Automatic Network Setup while your connecting the TV to a network that supports DHCP. To set up your TV’s 2. Go to Settings > Privacy & Control > Parental Control. cable network connection automatically, follow these steps: Enter password: When you first use this function, the How to set up automatically... -
Page 22: Viewing The E-Manual
Settings Viewing the E-manual DLNA Settings Computer, TV and other digital devices can be connected This TV has a built-in E-manual that contains information via DLNA. You can use the TV set as a DLNA DMP (Digital about your TV’s key features and instructions for using them. Media Player) device to enjoy movies, pictures, music and other multimedia materials stored on your home network devices through DLNA connection. -
Page 23: Media Share Settings In Computer
Settings Media Share Settings in Computer Settings to Share Files 1. Click “Library” and move the cursor to select “Media If your computer does not support DLNA, you may install Sharing...” software that supports DLNA such as TVersity or Windows Media Player. -
Page 24: Advanced Features
Advanced Features Accessing Home Menu Press [Home] button to access the Home menu. Weather Network State Time Recommendations Notifications Navigate bar All Apps Home Widget Home Screen You can access various content and applications from the Home screen. The home screen contains Notifications, All Apps, and shortcuts to select applications and websites. -
Page 25: Himedia
5. Press to return the previous directory. Download the Twonky Beam application using the link found on the Hisense website at www.hisense-usa.com. 6. Press [OK] to play the file. Confirm the device is connected to the same local area 7. Press button to display/exit the options menu. -
Page 26: Other Information
Other Information Trouble Shooting When something appears wrong with your TV refer to below chart. If the proposed remedy’s do not work , then unplug the AC cord from wall, wait at least 60 seconds, plug AC back in and then turn on the TV. If the problem still cannot be solved, please contact the help line provided on the warranty card or a professional technician. - Page 27 Other Information SYMPTOMS POSSIBLE SOLUTIONS Confirm that TV still has power and is operational. Change the batteries in the remote control. Check if the batteries are correctly installed. Confirm the remote control is paired with the TV (see “Pairing the Remote”). Remote control does not work.
- Page 28 Other Information SYMPTOMS POSSIBLE SOLUTIONS Check the power control settings. The power supply may be interrupted. The TV turns off suddenly. Check if the Auto sleep feature is activated in the Time settings. Check if the movie aspect ratio is different form TV. The image can’t be shown on the full screen.
