Kwikset 275 Installation And User Manual

66877-001
Rev 01

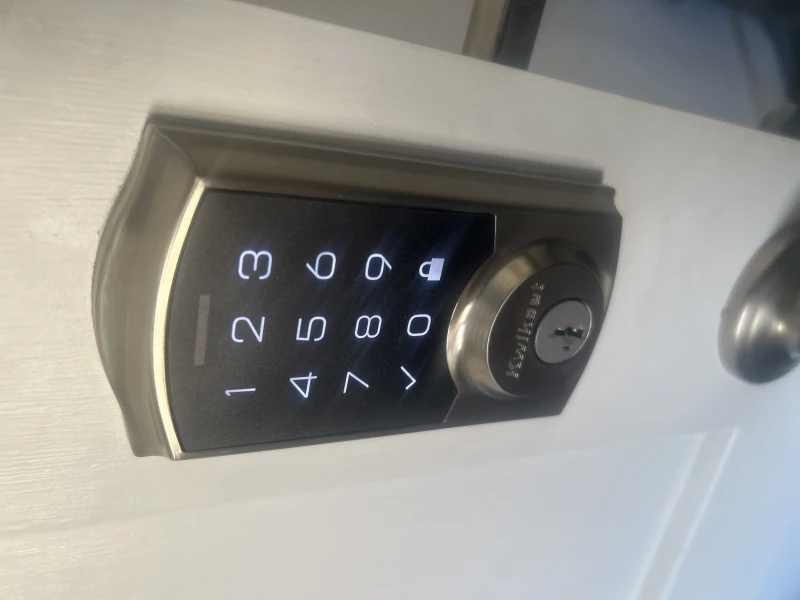

275 Touchscreen
Electronic Deadbolt
Installation and User Guide
Required tools
4 AA Batteries Ruler Phillips screwdriver
Additional Tools (depending on application)
Wood
block
Hammer Pliers
1 Prepare the door and check dimensions
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep
Measure to confirm that the hole in
A
the door is either 2-1/8" (54 mm) or
1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
Note: Additional door preparation may be
required for doors with 1-1/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep
2 Install the latch and strike
Hold the latch in front of the door hole, with
A
the latch face flush against the door edge.
A
Is the slotted hole centered in the door hole?
YES
or
slotted hole
is centered
No adjustment is Rotate latch face as
required. Proceed shown to extend latch.
to next step.
Kwikset
Technical Support
1-800-327-5625
www.kwikset.com
Measure to confirm that the backset is
B
either 2-3/8" or 2-3/4" (60 or 70 mm).
b a
2-3/8" or 2-3/4" c k
s e
60 or 70 mm
Is the door edge chiseled?
B
YES
Install latch in door with
supplied screws.
NO
slotted hole is
NOT centered
Make sure
slotted hole is at
bottom of latch.
180°
A
Parts in the box
Latch
A
Exterior Assembly
E
Interior Cover
J
C
Measure to confirm that the hole in
the door edge is 1" (25 mm).
t
NO
or
chiseled
not
chiseled
Remove rectangular
face from latch and
install drive-in collar.
A
Align tabs with
B
holes in collar.
Ensure collar
snaps into place.
A
Pull collar to test
for tight fit.
Install latch in door with
wood block and hammer.
K (2x)
Make sure
slotted hole is at
bottom of latch.
1 / 4
Drive-In Collar Strike
B C
Keys Mounting Plate
F G
Latch and Interior Assembly
Strike Screws Screws
K L
Measure to confirm that the
D
door is either 1-3/8" or 1-3/4"
(35 mm or 44 mm) thick.
1"
25 mm
C Install strike on the door frame.
Make sure hole in door frame is drilled a
minimum of 1" (25 mm) deep.
K (2x)
D
Make sure the latch bolt is fully retracted (in the
unlocked position).
Cylinder
D
Interior
Assembly
H
Mounting Plate
Screws
M
1-3/8"– 1-3/4"
35 mm or 44 mm
C
door frame
unlocked
