Alarm Lock 700 SERIES Installation & Operating Instructions

OPERATING INSTRUCTIONS
BEFORE INSTALLING THE LOCK COVER:
1) Select:
For continuous alarm, leave the black jumper plug on the terminal strip, as installed.
For two minute auto-alarm shutdown, remove the black jumper plug from the terminal strip.
2) Connect the battery connector to the 9-volt battery observing the proper polarity. A short beep will sound ensuring that the lock is powered
and ready.
3) Install the lock cover with four (4) screws supplied.
4) Close the door.
OPERATIONAL TESTING
1) Lock and unlock the door using the cylinder key and note a small beep will sound when the deadbolt is retracted, indicating a disarmed con-
dition. The door can now be opened without an alarm, by pushing the push bar.
2) Lock the door again and push the push bar to open it. Immediately the alarm will pulse loudly and one of the following will occur:
A) If continuous alarm has previously been selected the alarm will sound until the lock is manually reset by locking the deadbolt with the key.
B) If auto-alarm shutdown has been selected, the alarm will sound for two minutes then reset.
LOW BATTERY DETECTION
When the battery becomes weak, the sounder will emit a short beep approximately once a minute indicating the battery needs replacing.
RETRIGGERABLE OPERATION
If the unit has a retriggerable alarm (Model 710), after the initial two minute alarm and auto shutdown, the alarm will retrigger if the door is
opened again. This function will remain retriggerable until the door is relocked with the key. NOTE: Whenever an alarm is caused by open-
ing the door, and the door is left open, the two minute alarm shutdown will be inhibited.
DOGGING OPERATION
Using the 3/16" allen wrench, provided, insert it into the dogging latch through the hole in the channel insert. Turn the dogging latch counter-
clockwise a half turn, push in the pushbar, and turn the dogging latch clockwise a quarter turn until it stops. Release the pushbar and note it
stays depressed and the door is unlatched.
ALARM LOCK LIMITED WARRANTY
ALARM LOCK SYSTEMS, INC. warrants each of its products to be free from manufacturing defects in materials and work-
manship for fifteen months following the date of manufacture. ALARM LOCK will, within said period, at its option, repair or
replace any product failing to operate correctly, without charge to the original purchaser or user.
This warranty shall not apply to any equipment or any part thereof which has been repaired by others, improperly installed,
improperly used, abused, altered, damaged, subjected to accident, nuisance, flood, fire or acts of God, or on which any serial
numbers have been altered, defaced or removed. Seller will not be responsible for any dismantling, reassembly or reinstalla-
tion charges.
In order to exercise the warranty, the product must be returned by the user or purchaser, shipping costs prepaid, and insured
to ALARM LOCK. After repair or replacement, ALARM LOCK assumes the cost of returning products under warranty.
There are no warranties, express or implied which extend beyond the description on the face hereof. There is no express or
implied warranty of merchantability or a warranty of fitness for a particular purpose. Additionally, this warranty is in lieu of all
other obligations or liabilities on the part of ALARM LOCK.
This warranty contains the entire warranty. It is the sole warranty and any prior agreements, or, representations, whether
oral or written, are either merged herein or are expressly cancelled. ALARM LOCK neither assumes, nor authorizes any
other person purporting to act on its behalf to modify, to change, nor to assume for it, any other warranty or liability concern-
ing its products.
In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the product, for
any commercial loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of
the product. Seller's warranty, as hereinabove set forth, shall not be enlarged, diminished or affected by and no obligation or
liability shall arise or grow out of Seller's rendering of technical advice or service in connection with Buyer's order of the
goods furnished hereunder.
Warning: Despite, frequent testing, and due to, but not limited to, any or all of the following; criminal tampering, electrical or
communications disruption, it is possible for the system to fail to perform as expected. Therefore, the consumer is advised to
take any and all precautions for his or her safety including, but not limited to, fleeing the premises and calling police or fire
department, in order to mitigate the possibilities of harm and/or damage.
This warranty shall be construed in accordance with the laws of the State of New Jersey.
WI1863 02/10
INSTALLATION & OPERATING INSTRUCTIONS

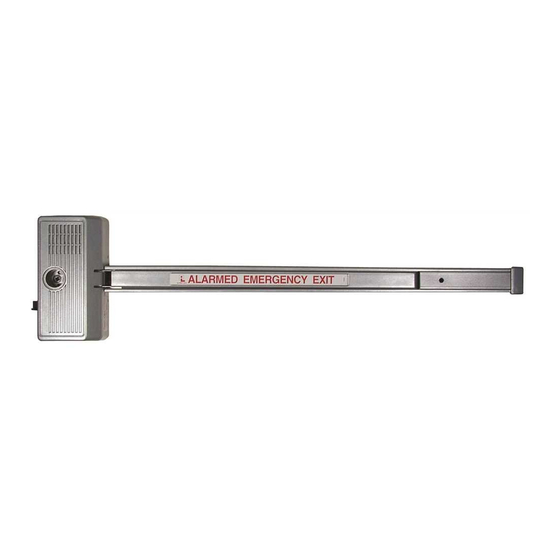

WATERPROOF ELECTRONIC PANIC LOCKS
700 SERIES MODELS
ALARM LOCK SYSTEMS, INC.
345 BAYVIEW AVE., AMITYVILLE, NY 11701
