Omega DPF700 Quick Start

WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects
in materials and workmanship for a period of 61 months from date
of purchase. OMEGA's WARRANTY adds an additional one (1) month
grace period to the normal five (5) year product warranty to cover
handling and shipping time. This ensures that OMEGA's customers
receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation.
OMEGA's Customer Service Department will issue an Authorized
Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA's WARRANTY does not
apply to defects resulting from any action of the purchaser, including
but not limited to mishandling, improper interfacing, operation outside
of design limits, improper repair, or unauthorized modification. This
WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive
corrosion; or current, heat, moisture or vibration; improper specification;
misapplication; misuse or other operating conditions outside of
OMEGA's control. Components in which wear is not warranted, include
but are not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various
products. However, OMEGA neither assumes responsibility for
any omissions or errors nor assumes liability for any damages
that result from the use if its products in accordance with
information provided by OMEGA, either verbal or written.
OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT
THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING
ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION
OF LIABILITY: The remedies of purchaser set forth herein are
exclusive, and the total liability of OMEGA with respect to
this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the
purchase price of the component upon which liability is based.
In no event shall OMEGA be liable for consequential, incidental
or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used,
nor shall it be used: (1) as a "Basic Component" under 10 CFR 21
(NRC), used in or with any nuclear installation or activity; or (2) in
medical applications or used on humans. Should any Product(s) be
used in or with any nuclear installation or activity, medical application,
used on humans, or misused in any way, OMEGA assumes no
responsibility as set forth in our basic WARRANTY/DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold
OMEGA harmless from any liability or damage whatsoever arising out
of the use of the Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer
Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA,
PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER
FROM OMEGA'S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO
AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence.
FOR WARRANTY RETURNS, FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair
please have the following
charges. Have the following
information available BEFORE
contacting OMEGA: information available BEFORE
contacting OMEGA:
1. Purchase Order number under
which the product was 1. Purchase Order number to cover
PURCHASED, the COST of the repair or
2. Model and serial number of calibration,
the product under warranty, and 2. Model and serial number of the
3. Repair instructions and/or product, and
specific problems relative to 3. Repair instructions and/or specific
the product. problems relative to the product.
OMEGA's policy is to make running changes, not model changes,
whenever an improvement is possible. This affords our customers the
latest in technology and engineering.
OMEGA is a trademark of OMEGA ENGINEERING, INC.
© Copyright 2018 OMEGA ENGINEERING, INC. All rights reserved.
This document may not be copied, photocopied, reproduced, translated, or
reduced to any electronic medium or machine-readable form, in whole or in
part, without the prior written consent of OMEGA ENGINEERING, INC.
MQS1766/0218
ARTWORK/PRODUCT ART/
DWGS/START HERE ARROW
5
To Change Scale Factor Value To Change Scale Factor Value
1. Press MENU until the 1. Press MENU until the
sCale sCale
display shows SCALE . display shows SCALE .
RECALL /SET /ADV MENU RECALL RESET /SET
2. Press 2. SET to show Press SET to show
the current mathmatical the current mathmatical In/SC In/SC
operation. operation.
RECALL /SET /ADV MENU RECALL RESET /SET
3. Press 3. SET to select Press SET to select
the setting from IN/SC the setting from IN/SC I n S . C I n
or IN . S C . or IN . S C .
RECALL /SET /ADV MENU RECALL RESET /SET
4. Press 4. ADV to show Press ADV to show
current scale factor current scale factor 6 0 . 0 0 6
value. value.
RECALL /SET /ADV MENU RECALL RESET /SET
5. Press 5. ADV to select Press ADV to select
the digit you want to the digit you want to 6. 0 00 6.
change. change.
RECALL /SET /ADV MENU RECALL RESET /SET
6. Press 6. SET to Press SET to
increase the value of the increase the value of the
6. 2 00 6.
flashing digit. flashing digit.
RECALL /SET /ADV MENU RECALL RESET /SET
7. Press MENU to store 7. Press MENU to store
the value into volatile the value into volatile
memory. memory.
RECALL /SET /ADV MENU RECALL RESET /SET
ARTWORK/PRODUCT ART/
DWGS/START HERE ARROW
6
To Change the Decimal Point Position: To Change the Decimal Point Position:
1. Press MENU until the 1. Press MENU until the
deCpt
display shows dECPt . display shows dECPt .
/ADV MENU RESET RECALL /SET /ADV MENU RECALL
2. Press 2. SET to show Press SET to show
the current location of the current location of F F . F F F F
the decimal point. the decimal point.
/ADV MENU RESET
RECALL /SET /ADV MENU RECALL
3. Press 3. SET to Press SET to
S . C move the decimal move the decimal
F f F . F F F
point to the right. point to the right.
Continue to press Continue to press
/ADV MENU RESET RECALL /SET /ADV MENU RECALL
SET until the meter SET until the meter
displays AutO for displays AutO for
auto ranging. auto ranging.
0 . 0 0
4. Press MENU to store 4. Press MENU to store
the decimal point into the decimal point into
store
/ADV MENU RESET
volatile memory. volatile memory.
RECALL /SET /ADV MENU RECALL
0 00
/ADV MENU RESET
2 00
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its regulations that apply. OMEGA is constantly pursuing certification of its
products to the European New Approach Directives. products to the European New Approach Directives.
/ADV MENU RESET
This device is marked with the international caution symbol. It is This device is marked with the international caution symbol. It is
important to read the Setup Guide before installing or commissioning this important to read the Setup Guide before installing or commissioning this
device as it contains important information relating to safety and EMC. device as it contains important information relating to safety and EMC.
WARNING: These products are not designed for use in, and should not be used for, WARNING: These products are not designed for use in, and should not be used for,
patient connected applications. patient connected applications.
The information contained in this document is believed to be correct but OMEGA The information contained in this document is believed to be correct but OMEGA
Engineering, Inc. accepts no liability for any errors it contains, and reserves the right Engineering, Inc. accepts no liability for any errors it contains, and reserves the right
to alter specifications without notice. to alter specifications without notice.
/ADV MENU RESET
The information contained in this document is believed to be
correct, but OMEGA accepts no liability for any errors it contains,
and reserves the right to alter specifications without notice.
For complete product manual:
www.omega.com/manuals/manualpdf/M1676.pdf
deCpt
TM
RESET /SET /ADV MENU RESET
F F . F F F F
RESET /SET /ADV MENU RESET
F f F . F F F
RESET /SET /ADV MENU RESET

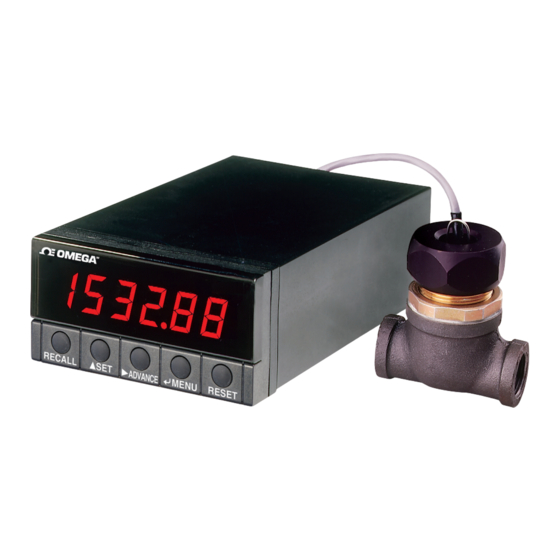

DPF700
store
Low-Cost Ratemeter/
Totalizer/Controller
RESET /SET /ADV MENU RESET
omega.com info@omega.com
