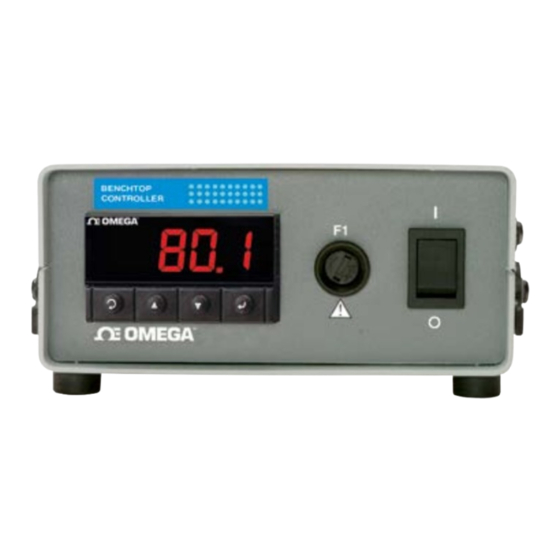

OMEGA CSi32J
Benchtop Controller
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
Used and in Excellent Condition
Open Web Page
https://www.artisantg.com/57293-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r
Advertisement
Table of Contents
Related Manuals for Omega CSi32J
Summary of Contents for Omega CSi32J
- Page 1 OMEGA CSi32J Benchtop Controller In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/57293-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
-
Page 2: Benchtop Controller
User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info CSi32 Benchtop Controller... - Page 3 Fax: (203) 359-7700 For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human applications.
-
Page 4: Table Of Contents
Table of CSi32 Benchtop Controller Contents Table of Contents Section ................Page Section 1 Introduction ..................1 1.1 Precautions ................1 1.2 Safety Warnings and IEC Symbols ........1 1.3 Statement on CE Marking ............2 1.4 Available Models ..............2 Section 2 Installation .................. - Page 5 List of CSi32 Benchtop Controller Figures List of Figures Figure Description ............Page IEC Symbols ....................1 Available Models ..................2 3a. Front Panel (108 to 125 Vac Models) ............4 3b. Rear Panel (Thermocouple Models) ............4 3c. Rear Panel (RTD Models) ................. 5 3d.
-
Page 6: Section 1 Introduction
Introduction Section 1 - Introduction Your CSi32 series benchtop controller is ideal for laboratory use and applications requiring portable temperature or process control. Pre-wired input and output receptacles on the rear panel enable quick and easy connections to main ac power, signal input, control output and two way digital communications. -
Page 7: Statement On Ce Marking
EMI/ ® EMC regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon verification of compliance. -
Page 8: Section 2 Installation
If you have any questions about the shipment, please call our Customer Service Department at 1-800-622-2378 or 203-359-1660. We can also be reached on the Internet at omega.com, e-mail: info@omega.com When you receive the shipment, inspect the container and equipment for any signs of damage. -
Page 9: Section 3 Operation
The Universal Thermocouple Panel Jack Shown is patented. CONTROLLER REAR PANEL VIEW FOR THE FOLLOWING MODELS OUTPUT 1 (FUSE: F2) F5A, 250V (FAST BLOW) MODELS: CSi32K MODELS: CSi32K-C24 5mm DIA. X 20mm LONG CSi32J CSi32J-C24 CSi32E CSi32E-C24 OUTPUT 2 (FUSE: F3) CSi32T CSi32T-C24 F5A, 250V (FAST BLOW) 5mm DIA. -
Page 10: Rear Panel Connection (Rtd, Mv, Ma Models)
Operation 3.3 Rear Panel (RTD, MV, MA Models) BENCH TOP CONTROLLER REAR PANEL VIEW OUTPUT 1 (FUSE: F2) F5A (250V) MODELS: CSi32RTD MODELS: CSi32RTD-C24 5mm DIA. X 20mm LONG OUTPUT 2 (FUSE: F3) INPUT CONNECTOR WIRING F5A (250V) 5mm DIA. X 20mm LONG 1 2 3 4 5 1 2 3 4 5 RS232/485 OPTION PORT... -
Page 11: Controller Settings And Programming
Operation 3.4 Controller Setup and Programming 3.4.1 Input Type Setup No setup or programming is required. Your unit has been manufactured, programmed and calibrated for the input type you ordered by model number. Do not change or reprogram the controllers input type. Incorrect readings and/or control will occur. -
Page 12: Section 4 Rs232/485 Communication
RS-232 or RS-485 Comunication (Optional) Section 4 - RS-232 or RS-485 Communication (Optional) 4.1 Communication Cable Connections Your controller unit has been factory pre-wired and configured for ease of use with an RJ12 rear panel connection that will requires no additional wiring. An interface cable, Part No. -
Page 13: Section 5 Maintenance
Maintenance Section 5 - Maintenance 5.1 Calibration This unit has been fine tuned and factory calibrated to give optimum performance over its full operating range for the input type you have selected by model number. It is recommended that the unit be returned annually for recalibration. -
Page 14: Section 6 Troubleshooting
Troubleshooting Guide Section 6 - Troubleshooting Guide Problem Solution 1. Unit will not turn on. a. Check all electrical connections. b. Check front panel fuses. c. Unit requires service, contact our customer service department. 2. Unit turns on, but will not control a. Check all electrical connections. b. -
Page 15: Section 7 Specifications
Accuracy at 25ºC: ±0.5°C temp nominal 0.03% rdg ±0.03% range process and strain Power Standard Models: 108 to 125 Vac, 50/60 Hz. Input Connection Thermocouple Models: Universal Female Panel Jack (Patented) (J, K, T, E, R, S, N) (Accepts both standard or miniature male thermocouple connector) RTD, MA, MV Models: 5 Position terminal block with #3-48 Phillips-... - Page 16 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 17 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
