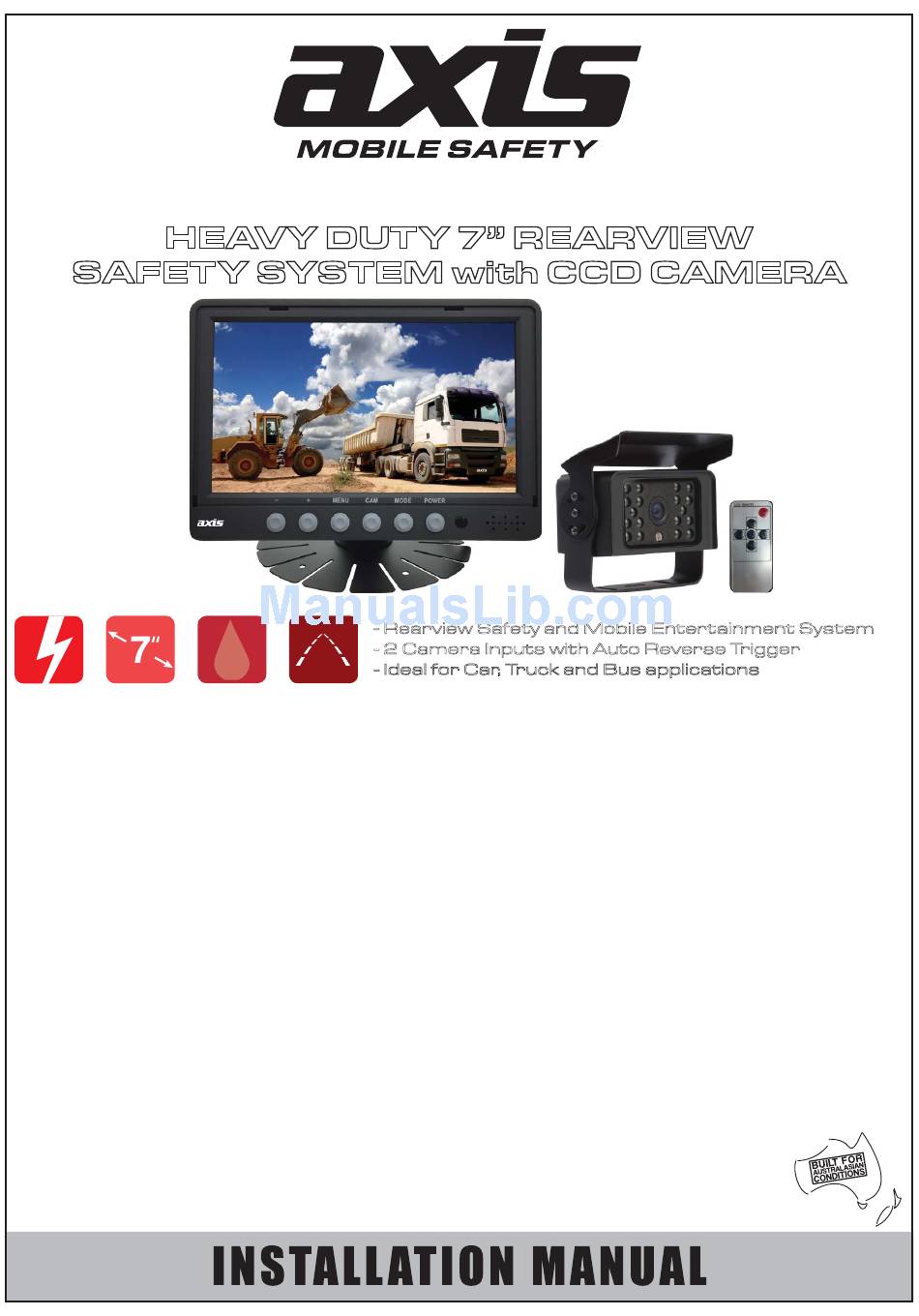

Axis JS022K Installation Manual

HEAVY DUTY 7" REARVIEW
SAFETY SYSTEM with CCD CAMERA
12 V
SYSTEM LCD CCD CAMERA
MONITOR
MONITOR:
- Monitor:
- Power Input:
- Power Consumption:
- Aspect Ratio:
- Video System:
- Resolution:
- Contrast Ratio:
- Viewing Angle:
- Operating Temp:
- Camera Inputs:
- Parking Guidelines:
- Speaker:
- Dimensions:
INCLUDED:
- Dash Mount Monitor Bracket
- Monitor Sunvisor
- Monitor Remote Control
- 2 Meter Power/Trigger/2 Video Input Loom
- Installation Hardware
- Installation Manual
JS022K
- Rearview Safety and Mobile Entertainment System
IP67
- 2 Camera Inputs with Auto Reverse Trigger
WEATHER
- Ideal for Car, Truck and Bus applications
P R O O F
PARKING
GUIDELINES
178mm (7") TFT Active Matrix LCD
LED Backlighting
12V - 24V
10W Max
16:9 Widescreen
Auto PAL/NTSC
800 (W) X 480 (H)
400:1
70° x 70° x 60° x 70°
-20 ~ +70° C
2 x 4-Pin
Yes, adjustable
Built In
180mm (W) x 123mm (H)
CAMERA:
- Image Device: 1/3" Sharp CCD Image Sensor
- Picture Resolution: 582 x 500 Pixels
- Horizontal Resolution: 420 TV Lines
- Minimum Illumination: 1 Lux (LED On)
- Signal-To-Noise Ratio: Better Than 45 Db
- Field Of View: 120°
- Image: Mirror
- IR LED Quantity: 18 Pcs
- IR LED Automatic On/Off: 5 Lux On (Night) / Off (Day)
- Waterproof Rating: IP67
- Power Supply: 12V (From Monitor)
- TV System: PAL
INCLUDED:
- 20 Meter 4-Pin Camera Extension Cable
- Camera Mounting Bracket
- Adjustable Camera Sunvisor
- 1 Meter 4-Pin Camera Fly Lead
