To Take Drywall Readings - Delmhorst QuickNav Owner's Manual

4. The unit will read %MC on a wood scale between 6% and 60%.
5. To hold a reading on-screen, press the HOLD (SELECT) KEY. Press the HOLD
(SELECT) KEY again to return to measuring mode.
ò
6. Use the key to highlight EXIT. Then, use the SELECT key to return to the MAIN
MENU when finished.
NOTE: The QuickNav is calibrated to give %MC readings on Douglas Fir. If you are taking
readings on other species of wood, refer to the species correction table on page 16.

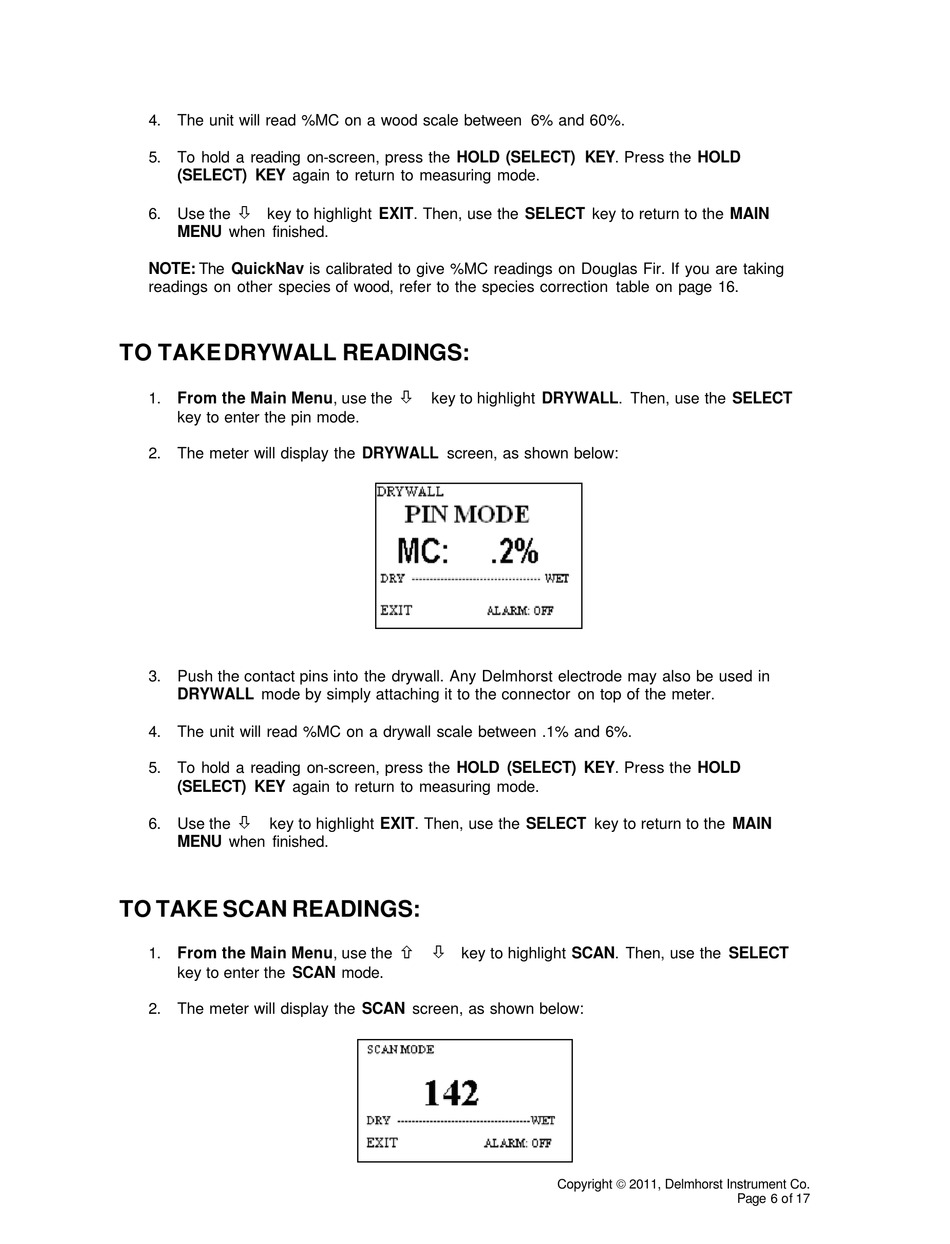

TO TAKE DRYWALL READINGS:

1. From the Main Menu, use the
key to enter the pin mode.
2. The meter will display the DRYWALL screen, as shown below:
3. Push the contact pins into the drywall. Any Delmhorst electrode may also be used in
DRYWALL mode by simply attaching it to the connector on top of the meter.
4. The unit will read %MC on a drywall scale between .1% and 6%.
5. To hold a reading on-screen, press the HOLD (SELECT) KEY. Press the HOLD
(SELECT) KEY again to return to measuring mode.
ò
6. Use the key to highlight EXIT. Then, use the SELECT key to return to the MAIN
MENU when finished.
TO TAKE SCAN READINGS:
1. From the Main Menu, use the
key to enter the SCAN mode.
2. The meter will display the SCAN screen, as shown below:
ò
key to highlight DRYWALL. Then, use the SELECT
ñ ò
key to highlight SCAN. Then, use the SELECT
