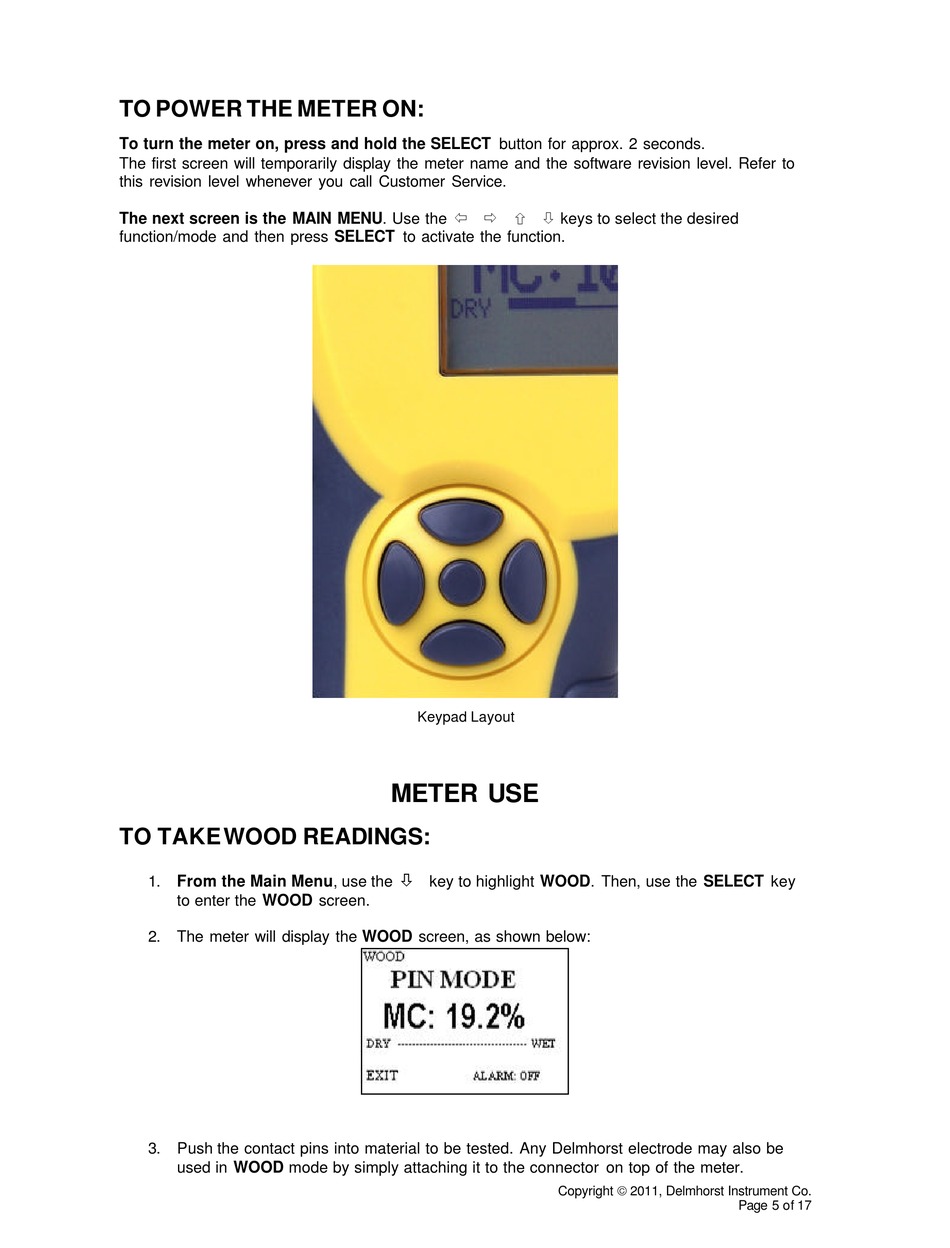

TO POWER THE METER ON:

To turn the meter on, press and hold the SELECT button for approx. 2 seconds.
The first screen will temporarily display the meter name and the software revision level. Refer to
this revision level whenever you call Customer Service.
The next screen is the MAIN MENU. Use the ï ð ñ ò keys to select the desired
function/mode and then press SELECT to activate the function.

TO TAKE WOOD READINGS:

1. From the Main Menu, use the
to enter the WOOD screen.
2. The meter will display the WOOD screen, as shown below:
3. Push the contact pins into material to be tested. Any Delmhorst electrode may also be
used in WOOD mode by simply attaching it to the connector on top of the meter.
Keypad Layout
METER USE
ò
key to highlight WOOD. Then, use the SELECT key
Copyright © 2011, Delmhorst Instrument Co.
Page 5 of 17
