Planet Networking & Communication WNAP-6305 Quick Installation Manual

802.11n Wireless
150Mbps
WNAP-6305
Outdoor Access Point

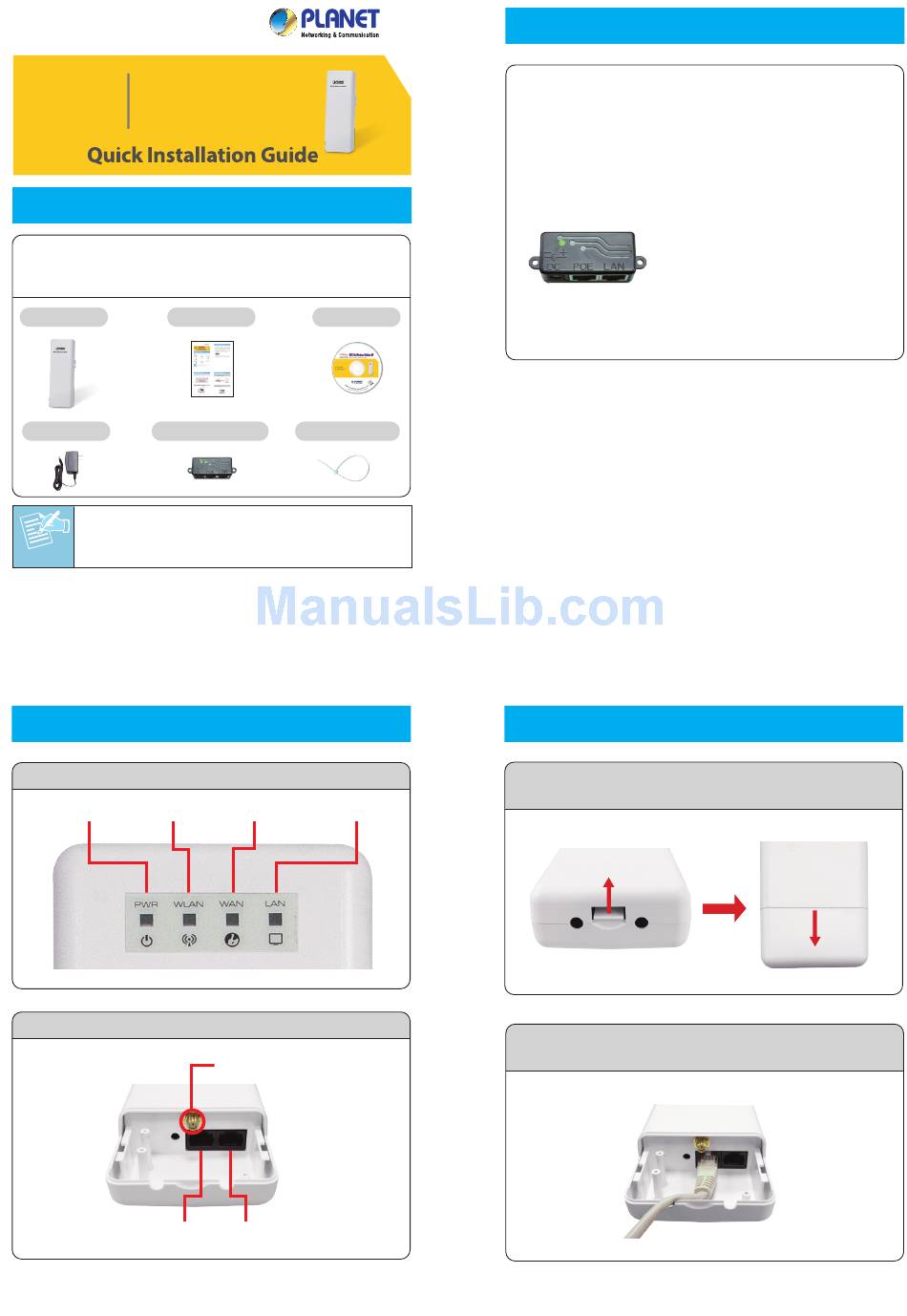

1. Package Contents
Thank you for choosing PLANET WNAP-6305. Before
installing the AP, please verify the contents inside the
package box.
WNAP-6305 Quick Guide
PoE Injector
Power Adapter
If there is any item missed or damaged, please
contact the seller immediately.
Note
3. Physical Introduction
Rear Panel Description – LED Indication
Power LED Wireless LED
Rear Panel Description – Port & Connector
LAN Port
(Connect to PC via PoE Injector)
CD-ROM
Mounting Tie x 2
– 1 –
WAN Port LED LAN Port LED
SMA Connector
(Connect to External Antenna)
WAN Port
(Connect to DSL/Cable Modem)
– 3 –
2. Installation Precautions
1. Users MUST use a proper and well-installed surge
arrestor and grounding
otherwise, a random lightening could easily cause fatal
damage to WNAP-6305. EMD (Lightning) DAMAGE
IS NOT COVERED UNDER WARRANTY.
2. Users MUST use the "Power cord & PoE Injector"
shipped in the box with the WNAP-6305. Use of other
options will cause damage to the WNAP-6305.
3. Users MUST power off the WNAP-6305 first before
connecting the external antenna to it; otherwise,
damage might be caused to the WNAP-6305 itself.
4. Hardware Installation
STEP 1: Push the latch in the bottom of WNAP-6305 to
remove the sliding cover.
STEP 2: Plug the RJ-45 Ethernet cable into the LAN Port
of WNAP-6305.
kit with WNAP-6305;
– 2 –
– 4 –
