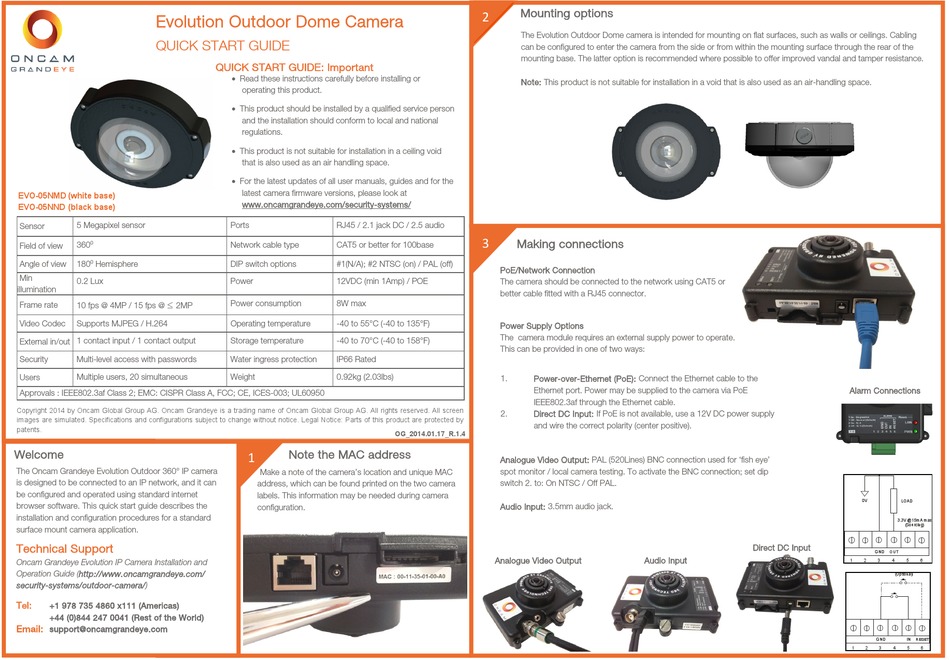

Oncam EVO-05NMD Quick Start Manual

Evolution Outdoor Dome Camera

QUICK START GUIDE

EVO-05NMD (white base)
EVO-05NND (black base)
5 Megapixel sensor
Sensor
0
360
Field of view
0
Angle of view 180 Hemisphere
Min
0.2 Lux
illumination
≤
Frame rate
10 fps @ 4MP / 15 fps @ 2MP
Video Codec Supports MJPEG / H.264
External in/out 1 contact input / 1 contact output
Security Multi-level access with passwords
Users Multiple users, 20 simultaneous
Approvals : IEEE802.3af Class 2; EMC: CISPR Class A, FCC; CE, ICES-003; UL60950
Copyright 2014 by Oncam Global Group AG. Oncam Grandeye is a trading name of Oncam Global Group AG. All rights reserved. All screen
images are simulated. Specifications and configurations subject to change without notice. Legal Notice: Parts of this product are protected by
patents.
Welcome
The Oncam Grandeye Evolution Outdoor 360° IP camera
is designed to be connected to an IP network, and it can
be configured and operated using standard internet
browser software. This quick start guide describes the
installation and configuration procedures for a standard
surface mount camera application.
Technical Support
Oncam Grandeye Evolution IP Camera Installation and
Operation Guide (http://www.oncamgrandeye.com/
security-systems/outdoor-camera/)
Tel:
+1 978 735 4860 x111 (Americas)
+44 (0)844 247 0041 (Rest of the World)
Email:
support@oncamgrandeye.com
QUICK START GUIDE: Important
 Read these instructions carefully before installing or
operating this product.
 This product should be installed by a qualified service person
and the installation should conform to local and national
regulations.
 This product is not suitable for installation in a ceiling void
that is also used as an air handling space.
 For the latest updates of all user manuals, guides and for the
latest camera firmware versions, please look at
www.oncamgrandeye.com/security-systems/
Ports RJ45 / 2.1 jack DC / 2.5 audio
Network cable type CAT5 or better for 100base
DIP switch options #1(N/A); #2 NTSC (on) / PAL (off)
Power 12VDC (min 1Amp) / POE
Power consumption 8W max
Operating temperature -40 to 55°C (-40 to 135°F)
Storage temperature -40 to 70°C (-40 to 158°F)
Water ingress protection IP66 Rated
Weight 0.92kg (2.03lbs)
Note the MAC address
1
Make a note of the camera's location and unique MAC
address, which can be found printed on the two camera
labels. This information may be needed during camera
configuration.
Mounting options
2
The Evolution Outdoor Dome camera is intended for mounting on flat surfaces, such as walls or ceilings. Cabling
can be configured to enter the camera from the side or from within the mounting surface through the rear of the
mounting base. The latter option is recommended where possible to offer improved vandal and tamper resistance.
Note: This product is not suitable for installation in a void that is also used as an air-handling space.
3
Making connections
PoE/Network Connection
The camera should be connected to the network using CAT5 or
better cable fitted with a RJ45 connector.
Power Supply Options
The camera module requires an external supply power to operate.
This can be provided in one of two ways:
1. Power-over-Ethernet (PoE): Connect the Ethernet cable to the
Ethernet port. Power may be supplied to the camera via PoE
IEEE802.3af through the Ethernet cable.
2. Direct DC Input: If PoE is not available, use a 12V DC power supply
and wire the correct polarity (center positive).
OG_2014.01.17_R.1.4
Analogue Video Output: PAL (520Lines) BNC connection used for 'fish eye'
spot monitor / local camera testing. To activate the BNC connection; set dip
switch 2. to: On NTSC / Off PAL.
Audio Input: 3.5mm audio jack.
Analogue Video Output
Direct DC Input
Audio Input
Alarm Connections
0V
LOAD
3.3V @15mA max
(Sourcing)
GND OUT
1 2 3 4 5 6
(Optional)
GND IN RESET
1 2 3 4 5 6
