Page 1 Oncam C-SERIES Installation and User Manual C-SERIES INDOOR C-SERIES OUTDOOR PLUS INSTRUCTION MANUAL - C-SERIES - 006-0064-0538 - Rev 8...
Page 2: Table Of Contents
Motion / Analytics ........................ 174 Users ............................. 185 Device ........................... 189 Peripherals ..........................211 6. Technical Support ......................218 Appendix A ..........................219 Appendix B ..........................220 Appendix C ..........................225 © Oncam Global Group AG, 2022. All rights reserved.
Page 3: Legal And Warnings
Every care has been taken in the preparation of this and the accompanying installation documentation. ©Oncam Global Group AG, 2013 - 2020. All rights reserved. No part of this manual may be reproduced except for your express personal use. Oncam and their affiliate’s further reserve the right to alter, amend or revise this document and any product specifications without any obligation to provide notice of such changes.
Page 4 Installation & User Manual – Oncam C-SERIES Series Copyright © Copyright 2022 ONVU Technologies AG. All rights reserved. Oncam is a trading name of ONVU Technologies AG. Regulatory Information 1.1.6.1 Europe This product complies with the applicable CE marking directives and harmonized standards: •...
Page 5 In many cases, issues can be resolved over the phone or via remote diagnostic tools. Support If you require any technical assistance, please contact your Oncam reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response.
Page 6: Table 1 Port Pre - Configuration
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury or property damage. RISK OF EXPLOSION If components are replaced incorrectly. SHARP Indicates cautionary warning of sharp edge or object. 1.1.13.2 Iconography Note: Indicates important information. © Oncam Global Group AG, 2022. All rights reserved.
Page 8 • Only use lint free soft paper towels or a microfiber cloth. After cleaning the dome apply clean, dry air to complete drying and leave no dust. © Oncam Global Group AG, 2022. All rights reserved.
Page 10: Introduction
C-Series really comes into its own. Thanks to a wide range of onboard technologies developed by the Oncam team, combined with an intuitive user interface and seamless ONVIF implementation, users have the freedom to configure and tailor the camera to best serve their installation environment.
Page 11: Camera Installation
(Indoor or outdoor) simultaneously using the Camera Configuration Tool. Please see C-Series Camera Configuration Tool User manual section 8. https://www.oncamgrandeye.com/resources/c-series-camera-config-tool/ © Oncam Global Group AG, 2022. All rights reserved.
Page 12: Placement And Orientation
Installation & User Manual – Oncam C-SERIES Series Placement and Orientation Camera placement is an important factor when planning your deployment. The Oncam C-Series camera has an exceptionally wide viewing angle. Consider the camera location for providing comprehensive coverage of a wide area. Mount the camera with an unobstructed view and consider scene optimization when one portion of the scene is bright and another dark.
Page 13: Connection
RJ45 and Punch Down For increased flexibility during camera installation, two methods of connection to the Oncam C- Series camera are available - RJ45 and Punch Down (or IDC). As part of the installation, if a network installer is bringing ethernet to every camera position then you can plug the cable straight into the camera.
Page 14: Figure 1 Drilling Template
The camera has been designed to be mounted with #8 or 4mm countersunk screws, however the length and fixing support material (plugs etc.) need to be specified by the installer on a case by case basis. © Oncam Global Group AG, 2022. All rights reserved.
Page 15: Figure 4 Punch Down Adapter
Figure 5 Identify Wiring Type for Punch Down Strip sheath to approximately 7cm [2 3/4"]. So, you have enough wires to punch down, excess wire can be cut after punching down. © Oncam Global Group AG, 2022. All rights reserved.
Page 16: Figure 6 Punch Down Wires
Connect the camera module, the clips will hold the camera in place. For RJ45 simply plug the camera module in, for the punch down simply connect the camera. Figure 8 Connecting of Camera Module © Oncam Global Group AG, 2022. All rights reserved.
Page 17: Figure 9 Connecting Of Ethernet Cable
Figure 9 Connecting of Ethernet Cable Using the security hex tool, tighten the 3 captive screws. Figure 10 Securing the Camera Module Remove and recycle the protective lens cover. Figure 11 Protective Lens Cover Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 18: Figure 12 Cover Twist
25mm [1"] thick. After selecting a suitable position, drill a ⌀100mm (⌀4") hole. Figure 13 Drilling Hole Feed a suitable ethernet cable to the hole. Figure 14 Feeding Ethernet cable to the hole © Oncam Global Group AG, 2022. All rights reserved.
Page 19: Figure 15 Connecting Of Rj45 / Punch Down
Figure 15 Connecting of RJ45 / Punch down Using wire cutters carefully snip two of the support tabs. Figure 16 Snipping of Support tabs for Punch down Figure 17 Snipping of Support tab for Ethernet Cable Sharp Edges © Oncam Global Group AG, 2022. All rights reserved.
Page 20: Figure 18 Removal Of Plug Using Pliers
Figure 19 Inserting of Grommet Remove the two mount screws, put to one side. These will be used later to mount the rear camera enclosure. Figure 20 Mount Screws Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 21: Figure 21 Indoor Enclosure Opening
Punch down only: insert the punch down adaptor (accessory located in the box packaging) and punch down the ethernet cable using the guide. Figure 22 Inserting Punch down adaptor Figure 23 Punch down Ethernet cable © Oncam Global Group AG, 2022. All rights reserved.
Page 22: Figure 24 Identify Wiring Type For Punch Down
If using punch down press the wires down to ensure they do not obstruct the camera module. Figure 25 Punch Down Wires After wires are punched down, cut off any excess wires. © Oncam Global Group AG, 2022. All rights reserved.
Page 23: Figure 26 Inserting Rear Enclosure Into Recessed Mount
Remove and recycle the protective cover from the rear of the camera module. Figure 27 Protective Cover Remova RJ45 Only. If the RJ45 cable is to be used, plug it in now. Figure 28 Plug in RJ45 Cable © Oncam Global Group AG, 2022. All rights reserved.
Page 24: Figure 29 Plugin Of Camera Module Into The Recessed Enclosure
The camera can be aligned for the correct view if required. Figure 30 Securing of Recessed Enclosure into the Ceiling Remove and recycle the protective lens cover. Figure 31 Protective Lens Cover Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 25: Figure 32 Clipping Of Front Cover
Run a drop conduit using external (male) thread M20 or 3/4" NPT conduit. The pendant mount will screw directly onto the conduit. Figure 34 Pendant Mount The two thread sizes use the same hole. © Oncam Global Group AG, 2022. All rights reserved.
Page 26: Figure 35 Mounting Screws Removal
Open the camera enclosure. Figure 36 Opening of Camera Enclosure C IC Punch down only: insert the punch down adaptor (accessory located in the box packaging). Figure 37 Punch Down Adaptor © Oncam Global Group AG, 2022. All rights reserved.
Page 27: Figure 38 Punch Down Ethernet Cable
Figure 39 Identify Wiring Type for Punch Down Strip sheath to approximately 7cm [2 3/4"] so you have enough wires to punch down. Excess wire can be trimmed after punching down. © Oncam Global Group AG, 2022. All rights reserved.
Page 28: Figure 40 Punch Down Wires
Figure 41 Secure Camera Enclosure onto the Pendant Mount Remove and recycle the protective cover from the rear of the camera module. Figure 42 Protective Cover Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 29: Figure 43 Connecting Camera Using Rj5 / Punch Down
There is a "top" to the camera image represented by this marker, it is recommended that this directional top is used to orientate the camera image as required. Care must be taken as over-adjusting the angle may unscrew the camera. © Oncam Global Group AG, 2022. All rights reserved.
Page 30: Figure 45 Locking Screw
Figure 47 Align and close the Camera Enclosure Front Cover Panoramic+ Tilt Mount -Surface Mounting Using a spirit level to make sure it is straight, affix the drilling template to the wall by removing the self-adhesive backing. © Oncam Global Group AG, 2022. All rights reserved.
Page 31: Figure 48 Drilling Template
The camera has been designed to be mounted with #8 or 4mm countersunk screws, however the length and fixing support material (plugs etc.) need to be specified by the installer on a case-by-case basis. © Oncam Global Group AG, 2022. All rights reserved.
Page 32: Figure 50 Mount To Wall
Figure 50 Mount to wall Open camera enclosure. Figure 51 Opening of Camera Enclosure Mount the rear of the camera enclosure to the bracket with the screws retained above. Figure 52 Mounting of Camera Enclosure © Oncam Global Group AG, 2022. All rights reserved.
Page 33: Figure 53 Punch Down Adapter
Figure 54 Identify Wiring Type for Punch Down Strip sheath to approximately 7cm [2 3/4"]. So, you have enough wires to punch down, excess wire can be cut after punching down. © Oncam Global Group AG, 2022. All rights reserved.
Page 34: Figure 55 Punch Down Wires
Connect the camera module, the clips will hold the camera in place. For RJ45 simply plug the camera module in, for the punch down simply connect the camera. Figure 57 Connecting of Camera Module © Oncam Global Group AG, 2022. All rights reserved.
Page 35: Figure 58 Connecting Of Ethernet Cable
Figure 58 Connecting of Ethernet Cable Using the security hex tool, tighten the 3 captive screws. Figure 59 Securing the Camera Module Remove and recycle the protective lens cover. Figure 60 Protective Lens Cover Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 36: Figure 61 Cover Twist
This will unlock the catch on the inside of the mount and allow the camera angle to be 25 30 carefully adjusted. CLIC There are physical and audible “clicks” at each 5-degree set angle. Figure 63 – Hex Tool Unlocks © Oncam Global Group AG, 2022. All rights reserved.
Page 38: Figure 66 Drilling Template
Remove the gland from the rear enclosure (the two glands are highlighted with icons to denote which one should be used; This is the one for the ethernet cable). Figure 67 Gland Identification Figure 68 Removal of Gland © Oncam Global Group AG, 2022. All rights reserved.
Page 39: Figure 69 Sealing Of Cable
Figure 69 Sealing of Cable Push the gland back into the rear enclosure, ensure it is bedded back into place. Figure 70 Gland into Rear Enclosure Figure 71 Check positioning © Oncam Global Group AG, 2022. All rights reserved.
Page 40: Figure 72 Gland Alignment
Figure 73 Rear Enclosure If a cable terminated with a RJ45 connector is used, then plug it into to RJ45 socket. Figure 74 Plugging RJ45 Connector to RJ45 Socket © Oncam Global Group AG, 2022. All rights reserved.
Page 41: Figure 75 Removal Of Rj45 Board
(accessory located in the box packaging). Figure 75 Removal of RJ45 Board Figure 76 Insert Punch Down Board Strip and punch down the ethernet cable. Figure 77 Punch Down Ethernet Cable © Oncam Global Group AG, 2022. All rights reserved.
Page 42: Figure 78 Identify Wiring Type For Punch Down
Excess wire can be trimmed after punching down. After wires are punched down, cut off any excess wires. Remove and recycle the protective film from the thermal pad. Figure 79 Protective Film Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 43: Figure 80 Protective Cover Removal
Figure 81 Camera Module Connection Ensure all three clips are correctly engaged. Taking the front of the enclosure, which was set aside; reattach the retaining tether. Figure 82 Reattach Front Cover © Oncam Global Group AG, 2022. All rights reserved.
Page 44: Figure 83 Protective Cover Removal
Figure 85 Protective Cover Removal Pendant Mount Kit (Including Sunshield) Run a drop conduit or pendant arm with an internal (female) 1 ½ " NPT thread. Run the ethernet cable through the conduit. © Oncam Global Group AG, 2022. All rights reserved.
Page 45: Figure 86 Ethernet Cable Onto The Pendant Mount
These will be used later to mount the rear camera enclosure. Figure 87 Removal of Mounting Screws The camera comes assembled, using the security hex bit, loosen the 3 captive screws. Figure 88 Loosen Captive Screws © Oncam Global Group AG, 2022. All rights reserved.
Page 46: Figure 89 Opening Of Camera Enclosure
Remove the gland from the rear enclosure (the two glands are highlighted with icons to denote which one should be used; this is the one for the ethernet cable). Figure 90 Gland Identification Figure 91 Removal of Gland © Oncam Global Group AG, 2022. All rights reserved.
Page 47: Figure 92 Sealing Of Cable
Figure 92 Sealing of Cable Push the gland back into the rear enclosure ensure it is bedded back into place. Figure 93 Gland into Rear Enclosure Figure 94 Check Positioning © Oncam Global Group AG, 2022. All rights reserved.
Page 48: Figure 95 Gland Alignment
Figure 96 Secure Rear Enclosure to the Pendant Mount If using a cable terminated with RJ45 connector, plug it into to RJ45 socket. Figure 97 RJ45 Connector into RJ45 Socket © Oncam Global Group AG, 2022. All rights reserved.
Page 49: Figure 98 Removal Of Rj45 Board
(accessory located in the box packaging). Figure 98 Removal of RJ45 Board Figure 99 Insert Punch Down Board Strip and punch down the ethernet cable using the guide. Figure 100 Punch Down of Ethernet Cable © Oncam Global Group AG, 2022. All rights reserved.
Page 50: Figure 101 Identify Wiring Type For Punch Down
Excess wire can be trimmed after punching down. After wires are punched down, cut off any excess wires. Remove and recycle the protective film from the thermal pad. Figure 102 Protective Film Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 51: Figure 103 Protective Cover Removal
Figure 105 Camera Module Alignment There is a "top" to the camera image represented by direction of this arrow, it is recommended that this directional top is used to orientate the camera image as required. © Oncam Global Group AG, 2022. All rights reserved.
Page 52: Figure 106 Reattach The Front Cover
With care, place the front of the camera enclosure onto the rear of the enclosure and tighten the 3 captive security screws using the hex tool. Figure 108 Secure Front Enclosure © Oncam Global Group AG, 2022. All rights reserved.
Page 53: Figure 109 Protective Film
Installation & User Manual - Oncam C-SERIES Series Remove and recycle the protective film from dome. Figure 109 Protective Film Completed installation. Figure 110 Camera after installation © Oncam Global Group AG, 2022. All rights reserved.
Page 54: Figure 111 Undo The Locking Screw
With the two halves apart, run the ethernet cable through the center of the tilt adaptor. Figure 112 Run Ethernet Cable Whilst still apart, screw the tilt adaptor into the pendant mount. Figure 113 Screw To Pendant © Oncam Global Group AG, 2022. All rights reserved.
Page 55: Figure 114 Adjust The Angle
Taking the CA-OPM1-O Outdoor Pendant Mount (required) screw the mount to the tilt adaptor. Note the arrow points “up” with regard the Panoramic+ image. Figure 116 – Screw On Pendant Mount © Oncam Global Group AG, 2022. All rights reserved.
Page 56: Figure 117 - Mounting Screws
Once the front is loose, open the camera enclosure and undo the retaining tether. Put the front enclosure back in the box for safe keeping. Figure 119 Opening of Camera Enclosure © Oncam Global Group AG, 2022. All rights reserved.
Page 57: Figure 120 Gland Identification
For Punch down pull though 6cm [2 1/2"]. Pull the cable backwards to flip the seal inside out to ensure the seal is at its best. Figure 122 Sealing of Cable © Oncam Global Group AG, 2022. All rights reserved.
Page 58: Figure 123 Gland Into Rear Enclosure
Figure 123 Gland into Rear Enclosure Figure 124 Check Positioning Ensure the tabs of the gland are aligned as shown. Figure 125 Gland Alignment © Oncam Global Group AG, 2022. All rights reserved.
Page 59: Figure 126 Secure Rear Enclosure To The Pendant Mount
Figure 127 RJ45 Connector into RJ45 Socket If using the punch down, remove the RJ45 board and replace it with the punch down board (accessory located in the box packaging). Figure 128 Removal of RJ45 Board © Oncam Global Group AG, 2022. All rights reserved.
Page 60: Figure 129 Insert Punch Down Board
Installation & User Manual – Oncam C-SERIES Series Figure 129 Insert Punch Down Board Strip and punch down the ethernet cable using the guide. Figure 130 Punch Down of Ethernet Cable © Oncam Global Group AG, 2022. All rights reserved.
Page 61: Figure 131 Identify Wiring Type For Punch Down
Remove and recycle the protective film from the thermal pad. Figure 132 Protective Film Removal Remove and recycle the protective cover from the rear of the camera module. Figure 133 Protective Cover Removal © Oncam Global Group AG, 2022. All rights reserved.
Page 62: Figure 134 Camera Module
Taking the front of the enclosure, which was set aside; reattach the retaining tether. Figure 135 Reattach the front cover Remove and recycle the protective lens cover. Figure 136 Protective Lens Cover © Oncam Global Group AG, 2022. All rights reserved.
Page 63: Figure 137 Secure Front Enclosure
Remove and recycle the protective film from dome. Figure 138 Protective Film Having fitted the camera and confirmed the perfect angle – tighten the locking screws. Figure 139 Lock Angles Rain Guard 3.5.4.1 Pendant drop © Oncam Global Group AG, 2022. All rights reserved.
Page 64: Figure 140 Remove Mounting Screws
3 location pins ensuring the captive mounting holes are clear Firmly push the rain guard onto the pendant mount, the rain guard has retaining features built in to hold it in place. Figure 141 Align Rain Guard © Oncam Global Group AG, 2022. All rights reserved.
Page 65: Figure 142 Screw Rear Enclosure To Pendant Mount
Having used the drilling template to mark and drill the holes in the surface (steps: Figure 66 Figure 72 Feed the ethernet cable through the middle of the rain guard and into the camera enclosure. Figure 143 Align Rain Guard © Oncam Global Group AG, 2022. All rights reserved.
Page 66: Figure 144 - Insert Gland, Install To Surface
Continue installing the camera from onwards. Figure 74 Plus Board There is a second gland entry point provided for the input / output devices. This is marked with an Figure 145 IO Entry Gland © Oncam Global Group AG, 2022. All rights reserved.
Page 67: Figure 146 Multi - Core Cable
Run the cable downwards, and up to the screw terminals along the path shown in Figure 148 , keeping clear of the camera. Figure 149 Figure 148 Cable through Screw Terminals © Oncam Global Group AG, 2022. All rights reserved.
Page 68: Figure 149 Cable Path To Screw Terminals
When connecting alarm inputs/output, use the DC GND connection next to the A M IN/A M OUT (not the DC GND next to DC 12V). Figure 151 Alarm Input Signal © Oncam Global Group AG, 2022. All rights reserved.
Page 69: Figure 152 Audio Microphone
3.5.5.4 DC Power The cable type required depends on the distance from the power supply to the camera placement - if in doubt consult a qualified person. Figure 154 DC Power © Oncam Global Group AG, 2022. All rights reserved.
Page 70: Figure 155 Camera Module Removal
Fold the camera module box back up - we will use the box to support the camera module and protect the lens during installation of the heater module. Figure 156 Camera Module Box © Oncam Global Group AG, 2022. All rights reserved.
Page 71: Figure 157 Protective Cover Removal
Figure 158 Camera Module Box Ensure the protective lens cap is in place. Take the heating module, remove and recycle the film that protects the thermal pad. Figure 159 Remove Protective Film © Oncam Global Group AG, 2022. All rights reserved.
Page 72: Figure 160 Align Heater Module
Tighten the 4 screws using the hex tool. Figure 161 Secure the Heater Module Place the camera module back into the box for protection until required for installation. Figure 162 Camera Module Box © Oncam Global Group AG, 2022. All rights reserved.
Page 73: Figure 163 Step 1 - Wall Mount Plate
Figure 164 Step 2 - Mounting Holes Using a 4.5mm or #9 pan head screw, fix the wall mount plate to the wall. Figure 165 Step 3 - Fixing Wall Mount into the Wall © Oncam Global Group AG, 2022. All rights reserved.
Page 74: Figure 166 Step 4 - Feeding Ethernet Cable Through The Hook Plate
Figure 167 Step 5 - Hook Plate Placement Taking the arm body feed the ethernet cable through the center, hook it onto the hook plate. Figure 168 Step 6 - Arm Body © Oncam Global Group AG, 2022. All rights reserved.
Page 75: Figure 169 Step 7 - Arm At Right Angle
Mount the wall plate to the pole mount bracket. This bracket gives a suitable mount for the wall mount, then follow steps 4 - 8 above from section 3.4.5 (Outdoor Pendant Wall Mount Bracket). © Oncam Global Group AG, 2022. All rights reserved.
Page 76: Sd Card Support
SD card. Figure 171 microSD Card Slot The SD card should be inserted with the gold contacts face up - towards the lens. Figure 172 Inserting microSD Card © Oncam Global Group AG, 2022. All rights reserved.
Page 77: Uninstalling And Returns
Remove the front cover. Figure 174 Camera Front Cover Undo the 3 retaining front screws with a security hex tool. Ensure the screws are fully disengaged. Figure 175 Retaining Front Screws using Hex Tool © Oncam Global Group AG, 2022. All rights reserved.
Page 78: Figure 176 Camera Module Off The Rear
The camera has been designed in a modular form. This should allow for simple replacement in case of RMA. Only when advised, simply return the camera module rather than the whole enclosure. It is not necessary to remove the whole camera, just the camera module. © Oncam Global Group AG, 2022. All rights reserved.
Page 79: Figure 178 Retaining Front Screws Using Hex Tool
Hex Tool Care should be taken to support the camera. Pull the camera module off the rear. Remove the ethernet cable by unplugging the RJ45 or unclip the punch down board. © Oncam Global Group AG, 2022. All rights reserved.
Page 80: Camera Access
To access the camera for the first time, you will need to discover the IP address of the camera. This can be discovered using your ONVIF compatible VMS (for a list of supported VMS partners please go to https://www.oncamgrandeye.com), the Oncam C-Series Camera Configuration Tool (download from https://www.oncamgrandeye.com/resources/c-series-camera-config-...
Page 81 To communicate with a camera on a Link Local address the PC must also have a Link Local address allocated. This can be done manually if needed in all PC operating systems. This can also be done within the Oncam Camera Configuration Tool by clicking on the Link Local toggle switch to turn the feature on.
Page 82: First Time Access - Set Primary Administrator Username And Password
Open the Camera Configuration Tool on a PC that is on the same network as the cameras. As soon as the App is initiated it will discover the Oncam C-Series cameras on your network and display key information including the Friendly name, Model number, MAC Address and most importantly the IP Address of the camera.
Page 83: Figure 183 Camera Web Interface, Set Password
- Minimum of 8 characters and a maximum of 32. - The password requires at least one uppercase letter (A-Z), one lowercase letter (a-z), one number (0-9) and one special character. The following special characters are supported (~!@#$%^&*_-+=`|(){}[]:;',.?/). © Oncam Global Group AG, 2022. All rights reserved.
Page 84: Figure 184 Cct, Set Password
Set an easily identifiable and memorable username for the Primary Administrator. The name must be a between 4-12 characters in length. The username can consist of uppercase letters (A-Z), lowercase letters (a-z) and numbers (0-9). Special characters are not supported. © Oncam Global Group AG, 2022. All rights reserved.
Page 85: Figure 185 Cct Username And Password Setting
- Minimum of 8 characters and a maximum of 32. - The password requires at least one uppercase letter (A-Z), one lowercase letter (a-z), one number (0-9) and one special character. The following special characters are supported (~!@#$%^&*_-+=`|(){}[]:;',.?/). © Oncam Global Group AG, 2022. All rights reserved.
Page 86: Figure 186 Cct Password Confirmation
4.2.1.3 Accessing the Camera Using the login credentials created, the camera is now ready to be configured using your compatible VMS, the Camera Web Interface or the C-Series Camera Configuration tool. © Oncam Global Group AG, 2022. All rights reserved.
Page 88: Figure 188 Dashboard Overview Fullscreen
Video/Audio – Camera Modes and Media Profiles for Streaming Video, Audio and Metadata, Image settings, Overlays, Global Compression and Audio Events - Alarm rule creation based on event triggers Recording - Create, manage and search continuous and event recordings on the SD card © Oncam Global Group AG, 2022. All rights reserved.
Page 89 The login page will be displayed over the Camera Web Interface; therefore the Camera Web Interface will still be visible in the background when you log out. However, it will not be accessible until you log back in. © Oncam Global Group AG, 2022. All rights reserved.
Page 90: Network
Once a message has been read it will turn grey. Network Network Configuration 5.2.1.1 Network Settings Configure essential camera network settings such as IP address, DNS, Gateway and NTP. The following settings are accessible: xxxxxxxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx © Oncam Global Group AG, 2022. All rights reserved.
Page 91: Figure 190 Network Configuration
IP address for the DNS server to be used. If DNS is set to manual but the IP address is retrieved via DHCP, the camera will reassign the address based on the settings received from the DHCP server. 5.2.1.6 NTP Server © Oncam Global Group AG, 2022. All rights reserved.
Page 92: Figure 191 Advanced Network Configuration
ONVIF. Instead of the standard port, an alternate port number can be used if required. Default is 80. Any user defined port needs to be in the range of 1024 – 65535. © Oncam Global Group AG, 2022. All rights reserved.
Page 93: Figure 192 Advanced Network Snmp
Figure 192 Advanced Network SNMP 5.2.2.2.4.1 Enable SNMP Enable SNMP by toggling to On 5.2.2.2.4.2 UDP Port Select your UDP port number, the available range is 1024 -65535. Default is 161. © Oncam Global Group AG, 2022. All rights reserved.
Page 94 5.2.2.2.4.7 SNMP V2c Connection Example: Activate SNMP V2 via Camera Web Interface as above. Use MIB Browser tool, Load ONCAM-MIB module provided in the firmware package, complete connection settings, Enter Camera IP, Port 161, Read Community “public” and Write community “private”...
Page 95: Figure 193 Advanced Network Eap
If you would like to check the Password you have entered and it is safe to do so, select the view icon and the password will be displayed. Select it again and the password will be hidden © Oncam Global Group AG, 2022. All rights reserved.
Page 96: Video/Audio Streaming
Multiple Streams (max four), at up to 30 fps. Image Output Modes offer the choice of Fisheye only, Panoramic+ only, or Multi-Mode where combinations of these views and various other dewarped views are possible. © Oncam Global Group AG, 2022. All rights reserved.
Page 97: Figure 194 Media Profile Overview
Default is Multiple Streams. If a different Performance Mode is selected, the Apply button will change color. Select it to apply the change. A pop-up warning message will be displayed, select Confirm to apply the change. © Oncam Global Group AG, 2022. All rights reserved.
Page 98: Figure 195 Media Profiles, Camera Mode Change Request
Fisheye only camera – All streams will be 360° Fisheye. Panoramic+ only camera – All streams will be 180° Panoramic+. Multi-Mode camera – All streams can display a different view, up to 4 different streams can be supported simultaneously. © Oncam Global Group AG, 2022. All rights reserved.
Page 99 5.3.1.4 Default Media Profiles and Video Encoders The Oncam C-Series camera supports up to four hardware video encoders which capture, compress, and convert video data into a format suitable for streaming and/or recording. Four default Media Profiles (MP1 - MP4 when in Multiple Streams Mode) have been created to represent each video encoder.
Page 100: Figure 197 Media Profile Edit
To create a Media Profile via the Camera Web Interface, go to Video/Audio > Media Profiles, select icon located under the Media Profile summary table. The following Media Profile settings can be selected and edited. © Oncam Global Group AG, 2022. All rights reserved.
Page 101: Figure 198 Media Profile, New Profile Creation
Up to 15 fps (60 & 50Hz) Up to 20Mbps 2160 x 2160 (C-08) 1920 x 1920 (C-12) 30 fps (60Hz) / 25 fps Tertiary Encoder Up to 10Mbps 1440 x 1440 (C-08) (50Hz) © Oncam Global Group AG, 2022. All rights reserved.
Page 102: Figure 199 Media Profile, Video Source Selection
The following views are supported: Figure 199 Media Profile, Video Source Selection Fisheye: (360° View) The standard non-dewarped 360-degree fisheye view, ideal for total situational awareness. Available in Fisheye Only Mode and Multi-Mode © Oncam Global Group AG, 2022. All rights reserved.
Page 103 Corridor+ allows you to watch both directions of a 360-image at the same time, with no blind spots even when objects move from one view to the other. Available in Multi-Mode. © Oncam Global Group AG, 2022. All rights reserved.
Page 105: Figure 200 Media Profile, Video Source Change Confirmation
It converts digital video into a format that takes up less capacity when it is stored or transmitted. The four default media profiles (MP1-MP4) are set to H.264 by default. H.265 © Oncam Global Group AG, 2022. All rights reserved.
Page 106: Table 3 C-12 Video Resolutions Supported By Encoder And Video Source
768 x 480 (0.37 MP) 1152 x 480 (0.6 MP) 576 x 432 (0.25 MP) 512 x 512 (0.26 MP) 800 x 320 (0.26 MP) 640 x 400 (0.26MP) 768 x 320 (0.25 MP) © Oncam Global Group AG, 2022. All rights reserved.
Page 107: Table 4 C-08 Video Resolutions Supported By Encoder And Video Source
To show that TrueDetail HDR is enabled and that the two encoders are linked the following symbol is shown next to each media profile, if you hover above the symbol a pop-up will be displayed to explain this linkage between the two encoders. © Oncam Global Group AG, 2022. All rights reserved.
Page 108: Figure 201 Media Profile, Truedetail Hdr Impact
The maximum frame rates available for each encoder in Normal Image sensor mode are: High Speed Mode: Primary Encoder (MP1) up to 60 fps (60Hz) up to 50 fps (50Hz) Multiple Streams Mode: Primary Encoder (MP1) © Oncam Global Group AG, 2022. All rights reserved.
Page 110 TrueDetail HDR will be disabled automatically if you request 60 fps. Requesting more than one stream from the camera (Multiple Stream Mode) will reduce this frame rate to 30 fps. © Oncam Global Group AG, 2022. All rights reserved.
Page 111 Exposure Priority to Frame Rate, accessible via Video/Audio > Imaging Settings > Low Light Technology. The camera also needs to be in 60Hz Power Line Frequency Mode, accessible via Video/Audio > Image Settings. © Oncam Global Group AG, 2022. All rights reserved.
Page 112: Figure 202 Media Profile Bit Rate Control
Up to 40,000 bps (40Mbps) 20,000 bps (20Mbps) Secondary Encoder (MP2) Up to 20,000 bps (20Mbps) 10,000 bps (10Mbps) Tertiary Encoder (MP3) Up to 10,000 bps (10Mbps) 5,000 bps (5 Mbps) © Oncam Global Group AG, 2022. All rights reserved.
Page 113: Table 5 Encoder Bit Rate Level
Tertiary Encoder (MP3) Up to 10,000 bps (10Mbps) 5,000 bps (5 Mbps) ow – Res Encoder (MP4) Up to 5,000 bps (5Mbps) 1,000 bps (1Mbps) Table 6 Encoder Bit Rate Level © Oncam Global Group AG, 2022. All rights reserved.
Page 114 I-frame. 5.3.1.6.12 StreamLite Compression Stream ite is Oncam’s advanced real time adaptive video encoder enhancement technology that is applied to industry compression standards like H.264 & H.265. It uses smart dynamic object & motion-based algorithms, to analyze the video stream on the fly and identify what’s really important.
Page 115: Figure 203 Media Profile Streamlite Compression
GoP length when motion is detected to ensure no loss of detail. Use the toggle to apply Dynamic GoP and select your GoP Maximum length. Advanced settings and configuration for this feature are available via Video/Audio > Global StreamLite Compression. © Oncam Global Group AG, 2022. All rights reserved.
Page 117: Figure 204 Media Profile Video Multicast
Sets the Time to Live value in the multicast IP packets. The default is set to 1. 5.3.1.6.14.5 AutoStart Enable to automatically restart Video Multicast after the camera reboots V2.0.x firmware or above required to access this feature. © Oncam Global Group AG, 2022. All rights reserved.
Page 118 Global Audio settings tab using the link provided or go to: Video/Audio > Global Audio > External Audio Output Settings. Then follow your VMS instructions to enable and use this feature. V2.0.x firmware or above required to access this feature. © Oncam Global Group AG, 2022. All rights reserved.
Page 119: Figure 205 Media Profile Audio
Enable to add Metadata streaming to the Media Profile and configure it using the parameters below. Metadata can be analyzed by external systems, such as certain ONVIF NVR/VMS systems. Figure 206 Media Profile Metadata © Oncam Global Group AG, 2022. All rights reserved.
Page 120 Video/Audio > Multicast tab and use the start / stop control next to this profile. This will invoke the StartMulticastAPI, the client will then directly use RTP with the Multicast address and port. Refer to your VMS documentation for any additional steps to enable streaming using Multicast. © Oncam Global Group AG, 2022. All rights reserved.
Page 121 5.3.1.12 Adjust Dewarped View From the summary table select the Adjust View icon next to the media Profile view you would like to review V2.0.x firmware or above required to access this feature. © Oncam Global Group AG, 2022. All rights reserved.
Page 122: Figure 207 Media Profile Adjust Dewarped View
Camera Web Interface > Video / Audio > Image Settings > Camera Mount Position > Wall The camera automatically produces a panoramic view that is a dewarped 180-degree image. Figure 208 Media Profile Adjust Panoramic+ View © Oncam Global Group AG, 2022. All rights reserved.
Page 123 Oncam Angle Compensation Technology, they are perfectly parallel. The purpose of the Angle Compensation Technology is to correct the image so that all vertical lines in the scene (such as door or window frames, pillars, lamp posts etc.) are shown...
Page 125: Figure 209 Media Profile Adjust Corridor+ View
To adjust the Scene Offset, in the image click and hold the left mouse button, then drag the mouse up and down to the desired view. Click on the lock icon to lock this setting. © Oncam Global Group AG, 2022. All rights reserved.
Page 126: Figure 210 Media Profile Adjust T Corridor+ View
The camera automatically produces a dewarped T Corridor+ View. Figure 210 Media Profile Adjust T Corridor+ View Two image adjustment controls are available for this dewarped view, Scene Offset and Rotate. © Oncam Global Group AG, 2022. All rights reserved.
Page 127 Go to Camera Web Interface > Video / Audio > Image Settings > Camera Mount Position > and select Wall or Ceiling based on installation. The camera will initially show a fisheye view that can be dewarped into the desired VCam view. © Oncam Global Group AG, 2022. All rights reserved.
Page 128: Figure 211 Media Profile Adjust Vcam View
Click on the lock icon to lock this setting. Use a combination these three settings to get the desired VCam view, as the example below shows. © Oncam Global Group AG, 2022. All rights reserved.
Page 129: Figure 212 Media Profile Adjusted Vcam View
5.3.2.1 Image Settings Controls Oncam cameras are designed to adapt to the current lighting and scene conditions to produce optimal images at all times with default settings. Configure settings for any flicker-inducing, infra-red, or high dynamic range lighting conditions. Occasionally, user preferences, unusual conditions or areas of interest in the scene can require other special adjustments.
Page 130: Figure 213 Image Setting Overview
In High Speed Mode, TrueDetail HDR will not be applied to the image if the selected frame rate is above 30 fps even if it shown as enabled in the Camera Web Interface. © Oncam Global Group AG, 2022. All rights reserved.
Page 131 5.3.2.4 Advanced Light Management Technology Oncam’s Advanced Light Management Technology dynamically manages the available light to achieve the best results in every corner of every 360-degree scene. Whether it be extreme low light or a complex mixed lighting environment, it automatically optimizes image quality whatever light available to produce clearer, full-color, lower noise surveillance videos, while maintaining the sharpness of static or moving objects even in very low light conditions.
Page 132: Figure 214 Image Preference
Contrast increases or decreases the contrast level of the whole image. Use this control to compensate for very evenly lit scenes where there will be no extremes of bright or dark. © Oncam Global Group AG, 2022. All rights reserved.
Page 133 This control has no effect on exposure, so if the scene is over- or under-exposed, the Exposure Compensation or TrueDetail HDR features should be used to address this, but the WDR control may be used in conjunction with those if required. Default is off. © Oncam Global Group AG, 2022. All rights reserved.
Page 134: Figure 215 Wdr Image Setting
Range is -100 to +100. Default is 0. 5.3.2.11 Camera Mount Position This control lets any Oncam-enabled dewarping systems know in which orientation the camera is installed, so the dewarping systems can make sure the VCam images stay the right way up and move naturally.
Page 135: Figure 216 Camera Mounting
"Night". However, any visible light also present will soften the images because it is focused differently. To avoid this, use Auto mode to switch to visible light when there is enough illumination. © Oncam Global Group AG, 2022. All rights reserved.
Page 136: Figure 217 Ir Cut Filter Mode
Set the period of time the visible light level must remain below the threshold set by Switch to Night Mode Below before switching to Night Mode. Use this setting to prevent temporary lighting © Oncam Global Group AG, 2022. All rights reserved.
Page 137: Figure 218 Color Space Mode
If you are not sure, use BT.601 Studio Swing. If incorrect, it will have the least harmful effect on the image. In Oncam's tests, most display systems were found to use BT.601 SS regardless of the flags and so that is the default setting.
Page 138: Figure 219 Overlays Overview
Screen Captions and select the + Add button located in the top right-hand corner. 5.3.3.4 Configure on Screen Caption Settings The following On Screen Caption settings can be selected and edited. © Oncam Global Group AG, 2022. All rights reserved.
Page 139: Figure 220 Overlay On Screen Caption
5.3.3.4.4 ont Size Choose the size of the text font. Range is between 8-40 and the default is set to 8. © Oncam Global Group AG, 2022. All rights reserved.
Page 140: Figure 221 Overlays Privacy Region
Privacy Regions and select the + Add button located in the opposite right-hand corner. 5.3.3.9 Configure Privacy egion Settings The following Privacy Region settings can be selected and edited. Figure 221 Overlays Privacy Region 5.3.3.9.1 Name Set an easily identifiable Privacy Region name. © Oncam Global Group AG, 2022. All rights reserved.
Page 141: Figure 222 Video / Audio Overlays Privacy Region
When you return to the main dashboard or view the live stream via your VMS, the region will be displayed in blue, protecting the area required. © Oncam Global Group AG, 2022. All rights reserved.
Page 142: Figure 223 Video / Audio Overlays Privacy Region Overview
StreamLite Compression – lobal Settings Controls Stream ite is Oncam’s advanced real time adaptive video encoder enhancement technology that is applied to industry compression standards like H.264 & H.265. It uses smart dynamic object & motion-based algorithms, to analyze the video stream on the fly and identify what’s really important.
Page 143: Figure 224 Global Streamlite Setting Colormap And Dynamic Roi
5.3.4.2 ColorMap Compression ColorMap is Oncam’s advanced color compression technology. By acting only on unperceivable colors in the scene, it can lead to an additional 20% bandwidth saving on top of traditional compression technologies. Shrink bandwidth and storage even further, without compromising image quality and level of details.
Page 144 If this option is enabled regions will grow considerably when objects interact, and thus particular attention should be paid to Region Size Scaling. The larger the regions the less efficient the encoding. © Oncam Global Group AG, 2022. All rights reserved.
Page 145: Figure 225 Global Streamlite Dynamic Gop Length Setting
It is the recommended option once calibration has been completed. Tracked objects is the best choice when the user only wants to return to standard GoP when a confirmed object is in the scene. © Oncam Global Group AG, 2022. All rights reserved.
Page 146 These advanced settings are recommended for tuning the compression to a particular scene when experience is showing some changes are needed to the way Dynamic FPS is triggered and how it returns to normal. © Oncam Global Group AG, 2022. All rights reserved.
Page 147: Figure 226 Global Streamlite Dynamic Fps Reduction Setting
For Motion Areas: 100% on the trigger threshold setting equates to a rectangle surrounding the area of motion being 25% of the scene, so 10% would equate to an area 2.5% of the scene. © Oncam Global Group AG, 2022. All rights reserved.
Page 148: Figure 227 Global Streamlite Motion Setting
It is a scale of how large a group of changing pixels is before it is determined as a motion area for investigation by the analytics engine. Default Settings should work for most scenes. 5.3.4.7 Save © Oncam Global Group AG, 2022. All rights reserved.
Page 149: Figure 228 Global Audio Settings
If your camera is mounted in the Outdoor housing and the audio settings are not accessible, make sure the module is properly located and screwed down so that the correct connections are made. 5.3.5.3 Audio Input Settings © Oncam Global Group AG, 2022. All rights reserved.
Page 150 This will only be applied to profiles where the Audio Encoder is enabled. Go to Video/Audio > Media Profiles and scroll down to Audio Encoder and enable. V2.0.x firmware or above required to access this feature. © Oncam Global Group AG, 2022. All rights reserved.
Page 151: Figure 229 Global Audio Settings, Audio Multicast
Video/Audio > Multicast tab and use the start / stop control next to this profile. This will invoke the StartMulticastAPI, the client will then directly use RTP with the Multicast address and port. 5.3.5.4 External Audio utput © Oncam Global Group AG, 2022. All rights reserved.
Page 152 Multicast settings for the Camera. Any Multicast changes made in a Media profile will be reflected in this table. V2.0.x firmware or above required to access this feature. © Oncam Global Group AG, 2022. All rights reserved.
Page 153: Recording
The camera supports a microSD card, minimum Class 10 up to 512GB. The card will need to be formatted to FAT32 before it can be used. To format the card using the Camera Web Interface, go to Recording > Storage Devices © Oncam Global Group AG, 2022. All rights reserved.
Page 154: Figure 231 Recording Format Microsd Card
The following warning pop up message will be displayed, if you are happy to proceed select Apply Figure 232 Recording Formatting Warning A notification message will be displayed in the bottom left-hand corner confirming the card is being formatted. © Oncam Global Group AG, 2022. All rights reserved.
Page 155: Figure 233 Recording Formatting In Progress
To instigate a recording, create a recording configuration. Two types of recordings are supported; continuous for recording all the time and event based for recordings based on a trigger such as a motion alarm. © Oncam Global Group AG, 2022. All rights reserved.
Page 156: Figure 235 Recording Configuration Overview
Recording Configuration, and select + Create Recording button located in the top right-hand corner. Figure 235 Recording Configuration Overview The following recording settings can be selected and configured. Figure 236 Recording Create a Configuration © Oncam Global Group AG, 2022. All rights reserved.
Page 157: Table 7 Storage Requirements Estimation
Recording configurations can be given a priority level to ensure preference is given to the most important recording configuration. Set the priority level of the recording where 1 is the most important and 2 is the least. © Oncam Global Group AG, 2022. All rights reserved.
Page 158 2. Purge Old Files instructs the camera to carry on recording and overwrite the oldest footage first. 5.4.2.1.8 Additional options for Event based ecording: When selecting Event as the recording type the additional options below will also need to be configured. © Oncam Global Group AG, 2022. All rights reserved.
Page 159: Figure 237 Event Based Recording
Make the changes required and save them. Recording type cannot be changed. To switch between recording types, create two configurations, one of each type and enable one at a time. © Oncam Global Group AG, 2022. All rights reserved.
Page 161: Figure 239 Recording Search
Restrict the search to a particular media profile, alternatively search all available profiles. If a particular recording configuration has been selected as a search parameter, then the media profile selected at this stage, must match the profile used in the chosen configuration. © Oncam Global Group AG, 2022. All rights reserved.
Page 162 V C version 2.2.2 Weatherwax is an example of a compatible player and version. Audio recordings will be downloaded in the recording format set in Global Audio Settings. © Oncam Global Group AG, 2022. All rights reserved.
Page 163: Events
Event based Recording Configurations are accessible via ecording > ecording Configuration. These are also alarm rules, and therefore will also be displayed in the alarm rules summary table. © Oncam Global Group AG, 2022. All rights reserved.
Page 164: Figure 241 Events Overview
Camera can be configured to perform an action on behalf of the user in case of an action Action Engine Completed trigger in the camera. The following actions are supported on the camera: © Oncam Global Group AG, 2022. All rights reserved.
Page 165 Configuration configuration has been changed. The camera has four predefined encoder configurations that can be modified only. This event can help client systems adjust to accommodate the settings that have changed. © Oncam Global Group AG, 2022. All rights reserved.
Page 166 It includes information about the Sessions audio decoder token. This event is generated alongside Active Audio Encoder Connections. When a client connects to the camera over RTSP stream and the profile © Oncam Global Group AG, 2022. All rights reserved.
Page 167 Includes information about the tokens that are included in the recording. The Create Track event is generated when a Create Track track is created, this typically happens when © Oncam Global Group AG, 2022. All rights reserved.
Page 168 Region Motion Detector event is generated Rule Engine/Region for the motion alarms for a specific region Motion Motion Detector defined by a polygon. Polygon region needs to be defined via the analytics rule. © Oncam Global Group AG, 2022. All rights reserved.
Page 169 A Whole Scene Motion Detector event is Whole Scene Video Source generated when motion occurs in any part of Motion Detector the scene. This event information is also sent © Oncam Global Group AG, 2022. All rights reserved.
Page 170: Figure 243 Events Trigger Action
I/O. 5.5.1.2.5 Send an Email Notification If Email Action is selected the following parameters need to be completed: Figure 243 Events Trigger Action © Oncam Global Group AG, 2022. All rights reserved.
Page 171 Enter the email address of the email recipients you would like notified. Separate multiple email addresses with a comma. 5.5.1.2.6 ecording If Recording Action is selected the following parameters need to be completed: © Oncam Global Group AG, 2022. All rights reserved.
Page 173 To edit an Alarm Rule via the camera interface, go to Events > Alarm Rules. From the table select Edit next to the rule that requires editing. Make the changes required and save them. © Oncam Global Group AG, 2022. All rights reserved.
Page 174: Motion / Analytics
Depending on your chosen NVR/VMS and the vendor of the solution, you may also have the option of adding an analytics license to the camera. Depending on your analytics license the following additional Analytics Types are available: 1) Loitering Object Detector 2) Line Counting © Oncam Global Group AG, 2022. All rights reserved.
Page 175: Figure 246 Motion Analytics Overview
Each rule creates its own events and data. You must give each rule a unique name and then configure the appropriate options for each rule. Figure 246 Motion Analytics Overview © Oncam Global Group AG, 2022. All rights reserved.
Page 176: Figure 247 Motion Analytics Create New
Draw and save a region then arm the regions to create associated events and metadata. Multiple Rules of this type can be created. This rule creates the following events and metadata: © Oncam Global Group AG, 2022. All rights reserved.
Page 177: Figure 248 Motion Analytics Draw Region
Each Motion Region Detector rule can be armed and disarmed via this slider. 5.6.1.2.3.3 Add ule Once the rule is created, click ADD RULE to apply it. All rules once created will be listed in the Motion/Analytics > Rules > table list. © Oncam Global Group AG, 2022. All rights reserved.
Page 178 There are no settings for this rule, once the rule is created, click ADD RULE to save it. All rules once created will be listed in the Motion/Analytics > Rules > table list. © Oncam Global Group AG, 2022. All rights reserved.
Page 179 Interface via Motion/Analytics > Global Settings. This rule creates the following events and metadata: tns1:RuleEngine/LoiteringDetector/ObjectIsLoitering Sample Data: <tt:Source> <tt:SimpleItem Name="VideoSourceConfigurationToken" Value="VideoSource"/> <tt:SimpleItem Name="VideoAnalyticsConfigurationToken" Value="testToken"/> <tt:SimpleItem Name="Rule" Value="LoiteringDetector1"/> </tt:Source> <tt:Key> <tt:SimpleItem Name="ObjectId" Value="4"/> © Oncam Global Group AG, 2022. All rights reserved.
Page 180 Interface via Motion/Analytics > Global Settings. This rule created the following Events and metadata: tns1:RuleEngine/ons1:TripWire/Counter Sample Data: <tt:Source> <tt:SimpleItem Name="VideoSourceConfigurationToken" Value="VideoSource"/> <tt:SimpleItem Name="VideoAnalyticsConfigurationToken" Value="testToken"/> <tt:SimpleItem Name="Rule" Value="Tripwire1"/> </tt:Source> <tt:Data> <tt:SimpleItem Name="LeftToRight" Value="7"/> <tt:SimpleItem Name="RightToLeft" Value="1"/> </tt:Data> © Oncam Global Group AG, 2022. All rights reserved.
Page 181 When you have clicked your last point, the region will close automatically when you hit Save Area. 5.6.1.2.9.2 Add ule Once the rule is created, click ADD RULE to apply it. © Oncam Global Group AG, 2022. All rights reserved.
Page 182 Calibration Settings are changed via camera Web Interface: Motion/Analytics > Global Settings. This rule creates the following events and metadata: tns1:RuleEngine/ons1:LiveOccupancy/CountChanged Sample Data: <tt:Source> <tt:SimpleItem Name="VideoSourceConfigurationToken" Value="VideoSource"/> <tt:SimpleItem Name="VideoAnalyticsConfigurationToken" Value="testToken"/> <tt:SimpleItem Name="Rule" Value="LiveOccupancy1"/> </tt:Source> <tt:Data> © Oncam Global Group AG, 2022. All rights reserved.
Page 183: Figure 249 Motion Analytics Edit Rules
Analytics rules can be edited or deleted. Some rules have no editable settings so can only be deleted. Choose Edit next to the rule to access the edit screen from the Rule summary table located in Motion Analytics > Rules Figure 249 Motion Analytics Edit Rules © Oncam Global Group AG, 2022. All rights reserved.
Page 184: Figure 250 Motion Analytics Global Settings
This setting only effects Whole Scene Motion Detector, Motion Region Detector and Region Object Detector rules which create motion alarm data. © Oncam Global Group AG, 2022. All rights reserved.
Page 185: Users
Primary Administrator with a different name, the camera must be eset to actory Defaults, accessible via Device > Maintenance/Support. Figure 251 Users Overview 5.7.1.2 How to Create a New User © Oncam Global Group AG, 2022. All rights reserved.
Page 186: Figure 252 New User Creation
For existing installations where repetitive or sequential characters have been setup using Firmware prior to V2.x, these will still be supported, however any new users created will need to follow the new security criteria for password setting. © Oncam Global Group AG, 2022. All rights reserved.
Page 187 5.7.1.3.1 How to Edit a User To edit a user account via the Camera Web Interface, go to Users, and select the Edit button next to the user account that requires editing © Oncam Global Group AG, 2022. All rights reserved.
Page 188: Figure 253 User Summary Table Update
To remove this account and replace it with a Primary Administrator with a different name, the camera must be eset to actory, accessible via Device > Maintenance/Support. © Oncam Global Group AG, 2022. All rights reserved.
Page 189: Device
All key camera identification information is accessible in this area. This includes the camera name, model number, serial number and the firmware version. The camera model name can also be set here to identify itself as an Oncam Evolution 12 for ease of implementation into existing ONVIF installations.
Page 190 Firmware’s are applied. C-08 camera supports Firmware Version 2.1.5 and above. Prior to upgrading, check the latest camera firmware available is supported by your NVR/VMS version. © Oncam Global Group AG, 2022. All rights reserved.
Page 191: Figure 257 Device Information Evo-12 Onvif Emulation
5.8.1.6 NVI Emulation To ensure that C-12 camera can be seamlessly integrated into an existing Oncam Evolution 12 installation, enabling this mode will change the ONVIF Model name of the camera to EVO- 12NxD. The camera will then be recognized as an Evolution 12 camera and can be configured as required.
Page 192: Figure 258 Date / Time Overview
The Camera's internal Real Time Clock (RTC) is also updated using this time. If Manual is selected, overtype the current displayed time and date with the correct time and date. © Oncam Global Group AG, 2022. All rights reserved.
Page 193: Figure 259 Date / Time Manual Setting
In this section, the NTP server address can be changed, this has been prepopulated with a Public NTP address. To change it, type your preferred NTP IP address or domain name and save changes. © Oncam Global Group AG, 2022. All rights reserved.
Page 194: Figure 260 Date / Time Ntp Network Setting
Several self-help and escalation tools are available. In this section, you can check in on your camera if something is not working as expected, reboot or reset the camera, download and share support logs and restore from a previously saved backup. © Oncam Global Group AG, 2022. All rights reserved.
Page 195: Figure 262 Maintenance Support Reboot
-The following Reboot Confirmation pop-up will be shown displaying the selected cameras, check all cameras that require a reboot are captured correctly on the list. - Select the Tick icon to apply. © Oncam Global Group AG, 2022. All rights reserved.
Page 196: Figure 263 Cct Maintenance Support Reboot
(located on the bottom right hand side) on the front of the camera module for 12 seconds until the Status LED turns off and then let go. © Oncam Global Group AG, 2022. All rights reserved.
Page 197 1. Via Software Tool 2. Via Physical Button Press 1. Software tools: Camera Web Interface: Navigate to Device > Maintenance/Support select Reset To Factory Defaults, choose the preferred reset option and confirm. © Oncam Global Group AG, 2022. All rights reserved.
Page 198: Figure 265 Maintenance Support Reset
Set User ID will be shown in the ACTIONS column for the reset cameras. The camera can also be reset by an ONVIF compatible VMS interface. 2. Physical Button Press: © Oncam Global Group AG, 2022. All rights reserved.
Page 199 This file can also be used to update other compatible Oncam cameras to the same configuration, saving valuable time during installation. A saved configuration file can also make it easier to replicate a precise camera setup as part of the support process.
Page 200: Figure 267 Maintenance And Support Backup
No sensitive information, such as user credentials is contained in the logs. To download log information collected by the camera, via the camera interface go to: Device > Maintenance/Support > Logs and select the Download button. © Oncam Global Group AG, 2022. All rights reserved.
Page 201: Table 9 Status Led
Oncam Evolution cameras. This feature enables a selection of predefined Oncam CGI API commands. For a list of supported commands please contact a member of the Technical Support team. This legacy support can be turned off if necessary.
Page 202: Figure 268 Maintenance Support Status Led
5.8.3.8 Vendor Support License If an advanced level of support information is required, the Oncam Technical Support team will provide a time limited license key that will need to be entered via the Camera Web Interface: Device > Maintenance/Support > Vendor Support License. This enables the option to temporarily create more detailed logging information to further assist in the diagnosis of any reported issue.
Page 203: Figure 269 Firmware Update
- The new firmware will be validated, uploaded, and then installed. Once complete the camera will be rebooted. - Progress bars will be displayed on the screen for each stage. The update process will take approximately 10 minutes depending on network speed and traffic. © Oncam Global Group AG, 2022. All rights reserved.
Page 204: Figure 270 Firmware Update Progress Display
-Select the Upload button in the top right-hand corner of the pop-up, it will be highlighted in red when you hover over it. -Navigate to the location where the new firmware file is saved. Select the file and the update process will begin. © Oncam Global Group AG, 2022. All rights reserved.
Page 205: Figure 272 Cct Firmware Update Multiple Cameras Progress Bars
Installation & User Manual - Oncam C-SERIES Series -The firmware will initially be validated to check it is suitable and signed by Oncam prior to being uploaded to the cameras. -Once validated, the pop-up will close, and you will return to the CCT dashboard.
Page 206 Licenses > Analytics Licenses. For More information on Advanced Analytics see: 5.6Motion / Analytics Please contact your Oncam sales representative for further information and to obtain an advanced analytics license. Once you have been provided with a license key enter it here and validate it to further extend the functionality of the camera.
Page 207: Figure 273 License Overview
To access the camera for the first time a secure username and password will need to be set for the primary administrator. Default user passwords are not supported, users will be required to © Oncam Global Group AG, 2022. All rights reserved.
Page 208 It is recommended to set the appropriate access level based on the requirements of each client to protect the integrity of the camera configuration and associated data. © Oncam Global Group AG, 2022. All rights reserved.
Page 209 Installation & User Manual - Oncam C-SERIES Series 5.8.6.2.7 Secured irmware All firmware is digitally signed and authorized by Oncam. During the firmware update process, the camera will check for a digital signature on the firmware and only proceed if it is verified.
Page 210: Figure 274 Download Root Ca
You can now connect to the camera over HTTPS without security warning. Follow the process defined in your VMS to upload the Root CA to your VMS if required. HTTPS enables RTP, WebRTC video and all data to be encrypted. © Oncam Global Group AG, 2022. All rights reserved.
Page 211: Peripherals
If you have a C-Series Outdoor Plus camera, and you plug a PoE cable into the camera module while it's removed from the outdoor housing, no IOs will be detected. Bear this in mind if you're © Oncam Global Group AG, 2022. All rights reserved.
Page 212: Figure 276 Peripheral Input / Output Overview
"ALM IN 1" and "ALM IN 2". In the camera software and the ONVIF-conformant camera API, they are named as follows: Input Type & Spec Plus Module Camera Software Input Name InputToken Name © Oncam Global Group AG, 2022. All rights reserved.
Page 213: Figure 277 Peripheral Edit Input
Choose the setting that corresponds to the behavior of the connected equipment. 5.9.1.3.2 ALM IN 2 / H 2 HW2 works just like HW1, except for the different name of the ONVIF Token and the signal in the camera software. © Oncam Global Group AG, 2022. All rights reserved.
Page 214: Figure 278 Peripheral Edit Alarm Output
If you want to assign the ALM OUT output as a rule action in the camera's internal Events system, simply choose the Action Type oncam:HardwareOutput in the Create New Rule page and select alarm_out_ctrl as the Output. Go to Events > Alarm Rules and click Create New Rule to begin.
Page 215 If you want to assign the LED 1 output as a rule action in the camera's internal Events system, simply choose the Action Type oncam:HardwareOutput in the Create New Rule page and select led1_ctrl as the Output. Go to Events > Alarm Rules and click Create New Rule to begin.
Page 216: Figure 279 Peripheral Edit Led Output
When Output Mode is set to Momentary, use the Pulse Delay to control how long the output remains active when triggered. For example, if the output is wired to sound an alarm while active, this would set the duration of the alarm. © Oncam Global Group AG, 2022. All rights reserved.
Page 217 If you want to assign the LED 2 output as a rule action in the camera's internal Events system, simply choose the Action Type oncam:HardwareOutput in the Create New Rule page and select led2_ctrl as the Output. Go to Events > Alarm Rules and click Create New Rule to begin.
Page 218: Technical Support
Installation & User Manual – Oncam C-SERIES Series 6. Technical Support Should you require any technical assistance, please contact your Oncam reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can visit to: https://support.oncamgrandeye.com/s/...
Page 219 For access to all streaming UR ’s the username and password is required. Required codec (MJPEG, H.264, H.265) must be selected in the media profile to be streamed. Only one MJPEG encoder can be set. © Oncam Global Group AG, 2022. All rights reserved.
Page 220 Figure 51 Opening of Camera Enclosure .......................... 32 Figure 52 Mounting of Camera Enclosure ........................32 Figure 53 Punch down Adapter ............................33 Figure 54 Identify Wiring Type for Punch Down ....................... 33 © Oncam Global Group AG, 2022. All rights reserved.
Page 221 Figure 110 Camera after installation ..........................53 Figure 111 Undo The Locking Screw ..........................54 Figure 112 Run Ethernet Cable............................54 Figure 113 Screw To Pendant............................54 Figure 114 Adjust The Angle ............................55 © Oncam Global Group AG, 2022. All rights reserved.
Page 222 Figure 170 Step 8 - Pendant Arm ............................. 75 Figure 171 microSD Card Slot ............................76 Figure 172 Inserting microSD Card ........................... 76 Figure 173 microSD Card Insertion / Ejection ........................77 © Oncam Global Group AG, 2022. All rights reserved.
Page 223 Figure 229 Global Audio Settings, Audio Multicast......................151 Figure 230 Multicast Summary Table ..........................153 Figure 231 Recording Format microSD card ........................154 Figure 232 Recording Formatting Warning ........................154 Figure 233 Recording Formatting in progress ......................... 155 © Oncam Global Group AG, 2022. All rights reserved.
Page 224 Figure 276 Peripheral Input / Output Overview ......................212 Figure 277 Peripheral Edit Input ........................... 213 Figure 278 Peripheral Edit Alarm Output ........................214 Figure 279 Peripheral Edit LED Output .......................... 216 © Oncam Global Group AG, 2022. All rights reserved.
Page 225 Table 7 Storage Requirements Estimation ........................157 Table 8 Events Trigger List ............................. 170 Table 9 Status LED ................................. 201 Table 10 Plus Module Alarm Input ..........................213 Table 11 Plus Module Alarm Output ..........................214 © Oncam Global Group AG, 2022. All rights reserved.

This manual is also suitable for:

C-08 outdoor C-12 indoor C series

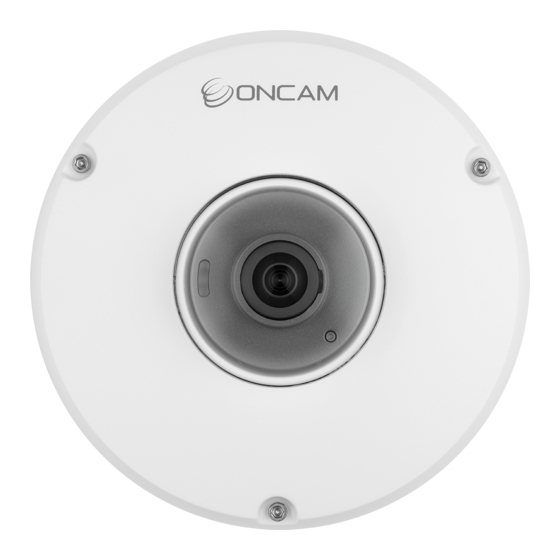

Oncam C-12 Outdoor Plus Installation And User Manual

Table of Contents

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oncam C-12 Outdoor Plus

Summary of Contents for Oncam C-12 Outdoor Plus
