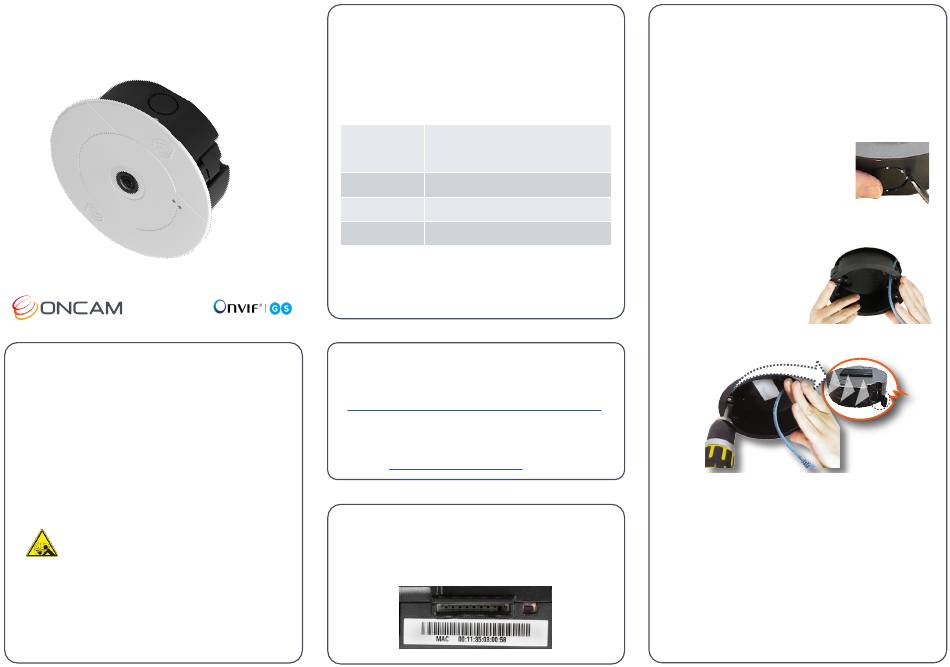

Oncam EVO-12-NRD Quick Start Manual

Evolution 12 Recessed Camera
QUICK START GUIDE
Important
• Read these instructions carefully before
installing or operating this camera.
• This camera should be installed by a qualified
service person and the installation should
conform to local and national regulations.
• This camera conforms to UL2043, which
certifies it as suitable for installation in a wall or
ceiling used also as an air handling space.
• Certified as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should take
adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
Welcome

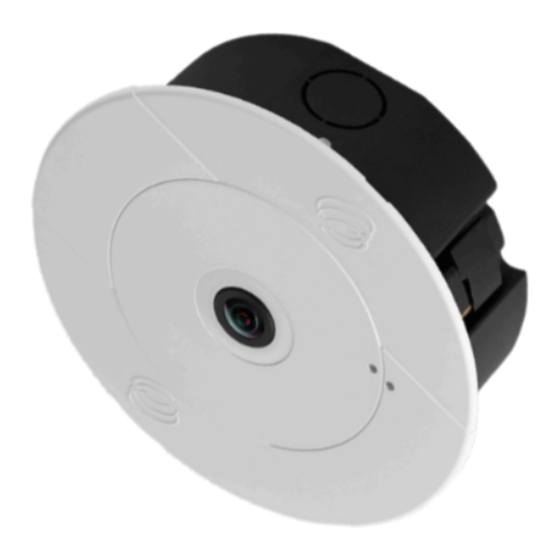

The Oncam Evolution 12 Recessed 360° camera is
designed to be connected to an IP network. Configure and
operate the camera using a standard internet browser.
Described are the installation and configuration
procedures for a standard surface mount camera
application.
Power Input
Operating
Temperature
Enclosure
Weight
Supplied Parts
EVO-12-NRD
• EVO-12 Camera
• Back Box
• Trim Cover
Technical Support
For the A&E, Specification, Installation and User Manual,
Software and Firmware visit:
www.oncamgrandeye.com/resources/product-downloads/
Tel: UK +44 (0)20 7371 6640
US +1 978 735 4860
Email: support@oncamgrandeye.com
MAC Address
Document the camera's installation location and unique
MAC address. Find the MAC address printed on the
camera label. This information may be needed during the
camera configuration.
12 VDC, 1.0 A (min) LPS, NEC Class 2
power supply or Power over Ethernet
(PoE),
IEEE standard 802.3af
0 to +40°C (-32 to +104°F)
Aluminum with polymer trim cover
0.8 kg (1.76 lbs)
• Quick Start Guide
• Drilling Template
Mounting & Installation
The Evolution Indoor Recessed camera is a recessed
mounting for drop ceilings or walls with a maximum
cross section of 25.4 mm (1-inch).
1. Remove the camera cover.
2. Detach the cover retaining strap from the casing by
removing the retaining nut.
3. Remove the camera by loosening the thumb screw.
4. Remove the cable entry cover.
Cable side and top options are
available.
5. Cut a 152 mm (6-inch) hole
in the mounting location. A
template is supplied.
6. Pass the network cable through the cable entry
hole in the casing.
7. Adjust the casing and
insert the casing into the
pre-made hole.
8. Secure the casing
by tightening the two
screws engaging the
two retention fins.
9. Connect the network cable to the camera and
reinsert the camera into the casing. Fasten the
thumb screw firmly.
10. Reattach the cover retaining strap with the retaining
nut.
11. Aligning the magnets, place the cover on the
casing.
12. Remove the lens protector.
13. Ensure the LED lights illuminate.
Recessed View
