Installer Guide
and User Manual
for the

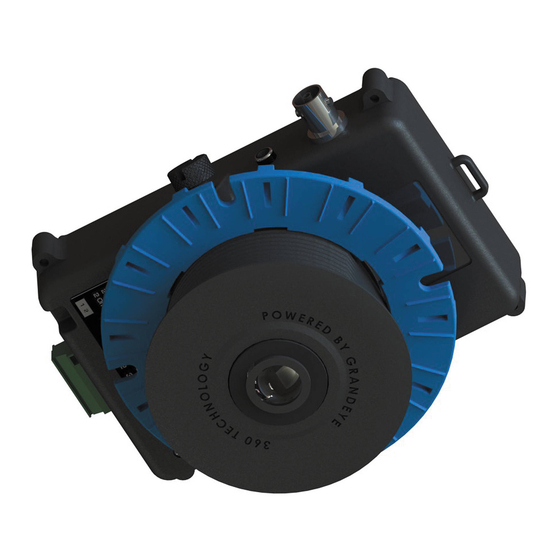

Evolution Camera Range
Oncam Grandeye
This document contains proprietary data or information pertaining to items, or components, or
processes, or other matter developed or acquired at the private expense of the Oncam Grandeye and is
restricted to use only by persons authorized by Oncam Grandeye in writing to use it. Disclosure to
unauthorized persons would likely cause substantial competitive harm to Oncam Grandeye business
position. Neither said document nor said technical data or information will be furnished or disclosed to or
copied or used by persons outside Oncam Grandeye without the express written approval of Oncam
Grandeye
Installation & Operation Guide: Oncam Grandeye 360
Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK
T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com
Evolution Camera Range
o
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oncam Evolution EVO-05NID
Summary of Contents for Oncam Evolution EVO-05NID
- Page 1 This document contains proprietary data or information pertaining to items, or components, or processes, or other matter developed or acquired at the private expense of the Oncam Grandeye and is restricted to use only by persons authorized by Oncam Grandeye in writing to use it. Disclosure to unauthorized persons would likely cause substantial competitive harm to Oncam Grandeye business position.
- Page 2 Oncam Grandeye and its affiliates reserve the right to revise, alter or amend this publication in its entirety or any portion hereof. Although Oncam Grandeye and its affiliates do their best to provide current and accurate information in this manual, Oncam Grandeye and its affiliates make no guarantee, representation or warranty, either express or implied, regarding the accuracy of the information contained in this manual.
-
Page 3: Important Safety Instructions
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 4: Table Of Contents
Supplied Parts ..........................17 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 5 Admin tab ............................35 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 6 Appendix G – Drill Template, Evolution Indoor Camera - USA ..............62 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 7: Oncam Grandeye 360° Ip Camera Basics
The ability to ‘see’ in all directions at once makes Oncam Grandeye 360° IP cameras ideally suited for total situational awareness. -
Page 8: Evolution - Outdoor Dome Camera (For External And Internal Use)
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 9: Planning Your Deployment
One ceiling‐mounted camera can cover an entire room. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 10: Zones Of Coverage
At a counter or customer service desk, the identity of the customer is verifiable. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 11: Object Recognition
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 12: Positioning Multiple Cameras
Image controls include: Brightness / Contrast / Saturation Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 13: Summary
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 14: Installation Steps
EVOLUTION 360° IP camera. Please refer to the Camera Web Interface configuration chapter for a more detailed explanation on features and functionality. All Oncam Grandeye 360° IP cameras can be either wall mounted or ceiling/table mounted. These cameras have an exceptionally wide viewing angle, so some consideration should be given to camera location. -
Page 15: Pendant Mounting
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 16: Evolution Indoor Concealed Camera
Do not over tighten the locking nut. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 17: Evolution Outdoor Dome Camera
The Gore® Vent is relatively fragile, do not probe or touch it unnecessarily Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 18: Installation Steps
This may invalidate the warranty. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 19: Pendant Mounting
150mm (4 to 6”) in diameter, with the stainless steel clamping bands provided. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 20: Sun Shield
Flat Washers Nylon lock nuts Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 21: Evolution Corner Wall Mount Adapter Obe-05-O#A
*This needs to be used with the wall mount kit - OBE-04-O#A Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 22: Installation
The indoor enclosure base plate is then mounted to the pendant adapter with the cables passing through it. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 23: Corner Mount Applications
Cables are passed through this hole and into the mount arm, which is fastened to the cleat plate as described above. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 24: Audio Input
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 25: Preparing The Camera For Installation
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 26: Alarms Out
Camera Module. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 27 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 28: Dome Handling And Cleaning
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 29: First Time Operation
DHCP server or router to automatically assign unique, valid IP addresses to each camera. The alternative is a manually configured network using static IP addresses. Install the Oncam Grandeye IP Configuration Tool. The latest version of this is available on the Oncam Grandeye website www.oncamgrandeye.com... -
Page 30: Finding Available Cameras
10.3 Finding Available Cameras The Oncam Grandeye IP Configuration Tool is used to find the IP address of installed Oncam Grandeye 360° IP cameras, whether or not they are addressable on your current sub‐LAN. Press the Refresh List or Discover button to find new cameras or update information on cameras already in the list. -
Page 31: Camera Web Interface
0.25M Pixel 528 x 480 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 32 Image tab. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 33: Image Tab
WDR processing that is applied to the image. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 34: Image Time/Date Overlay
Wall mount setting is selected. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 35: Admin Tab
! You may lose your connection to the Web interface if the IP address changes to another subnet! Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 36: User Management Settings
View Triggers button to do this. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 37 Use the Delete button to delete a trigger from the list Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 38 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 39: Camera Settings
Max FP S : Number of frames per second sent by the camera. A value of 0 means the frame rate is unlimited. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 40: Clock Settings
The camera module can support either one or two camera streams. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 41 15 fps 15 fps Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 42: Audio Settings
H.264 or MJ PEG R TS P stream from the camera. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 43: Factory Defaults
A message will appear on the screen after the 'S end' request and the 'R eboot' request has been actioned. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 44 ! You may lose your connection to the Web interface if the IP address changes to another subnet! Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 45: Privacy Tab
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 46: Motion Detection Tab
The sensitivity may be changed. Available settings are Low, Medium, High or a C ustom setting. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 47: Connecting Directly To The Camera Streams
To view the ¼ MP MJPEG video stream use http://192.168.0.200:80/video.cgi?camera=26 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 48: Connecting Via Onvif Profile S Or Psia
Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 49: Contact Technical Support
Include a detailed description of the problem, the model number of the cameras you are using and any relevant configuration information. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 50: Copyright And Legal Notices
EULA and any amendments thereto. Use of some Oncam Grandeye and some third party materials and other services included in or accessed through the software may be subject to other terms and conditions typically found in a separate license agreement. The software may include product activation and other technology designed to prevent unauthorized use and copying. -
Page 51: Appendix A - Technical Specifications
The following pages contain the technical specifications for the Evolution range of cameras. Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... - Page 52 Most major VMS / VMS / HDVR systems (contact Oncam Sales for latest list) Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 53 Oncam Grandeye SDK integration pack, Evolution Accessories, IP Configuration Tool, 360-degree Viewer, OnVu360 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 54 Most major VMS / VMS / HDVR systems (contact Oncam Sales for latest list) Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 55 Oncam Grandeye SDK integration pack, Evolution Accessories, IP Configuration Tool, 360-degree Viewer, OnVu360 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 56 Up to 20 simultaneous users depending on the resolutions settings Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
- Page 57 Oncam Grandeye SDK integration pack, Evolution Accessories, IP Configuration Tool, 360-degree Viewer, OnVu360 Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
-
Page 58: Appendix B - Frame Rate, Resolution & Storage Needs
18 Appendix C – NVR and Storage Partners For an up to date list of NVR / VMS partners that support the Oncam Grandeye 360° IP cameras, please visit the Oncam Grandeye web site www.oncamgrandeye.com Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. -
Page 59: Appendix D - Drill Template, Evolution Outdoor Dome Camera - Uk
Euro ‘A4’ format size Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 60: Appendix E - Drill Template, Evolution Outdoor Dome Camera - Usa
USA ‘A’ format size Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 61: Appendix F - Drill Template, Evolution Indoor Camera - Uk
Euro ‘A4’ format size Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com... -
Page 62: Appendix G - Drill Template, Evolution Indoor Camera - Usa
USA ‘A’ format size Installation & Operation Guide: Oncam Grandeye 360 Evolution Camera Range Version 2.4 | January 2014 | Oncam Grandeye, 115 Hammersmith Road, London. W14 0QH. UK T: +44 (0)20 7371 6640 | E: info@oncamgrandeye.com | W: www.oncamgrandeye.com...
