Oncam M12 Quick Start Manual

Evolution 05 mini panel-mount

Advertisement

Quick Links

Evolution 05 Mini Panel-Mount

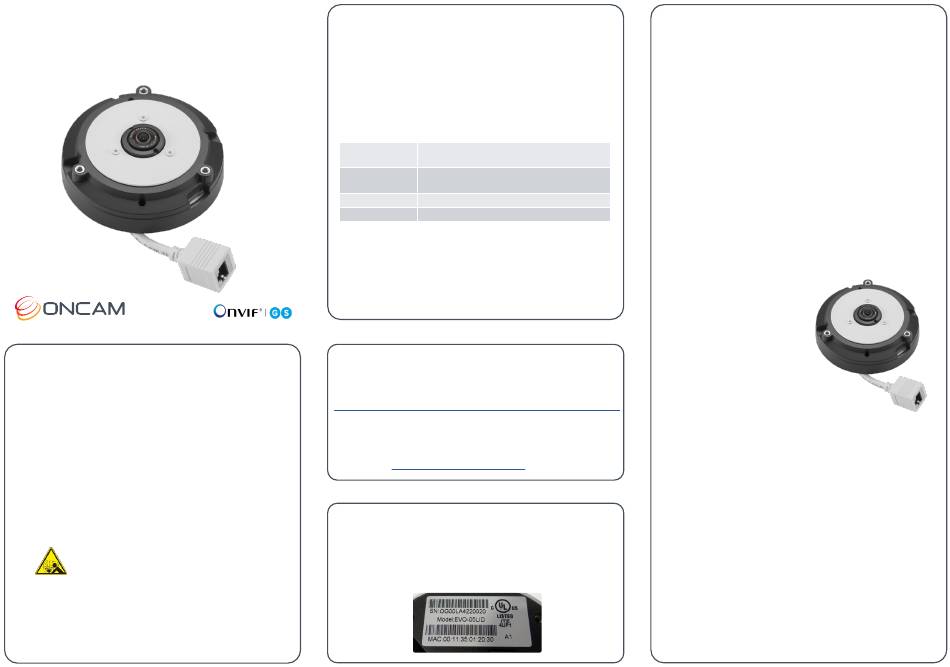

QUICK START GUIDE
Important
Read these instructions carefully before
installing or operating this camera.
This camera should be installed by a qualified
service person and the installation should
conform to local and national regulations.
This product is only suitable for a surface
mount installation and should not be modified
or adapted for any type of plenum installation.
Certified as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should
take adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
Welcome
The Oncam Evolution Indoor Panel-Mount 360° camera
is designed to be connected to an IP network. Configure
and operate the camera using a standard internet
browser.
Described are the installation and configuration
procedures for a standard surface mount camera
application.
Power Input
Operating
Temperature
M12
Enclosure
EVO-05-LCM
Weight
RJ45
EVO-05-LCD
Supplied Parts
• EVO-05 Mini Camera
• Mounting Kit
• Quick Start Guide
Technical Support
For the A&E, Specification, Installation and User Manual, Software
and Firmware visit:
https://www.oncamgrandeye.com/resources/product-downloads/
Tel:
UK +44 (0)20 7371 6640
US +1 978 735 4860
Email:
support@oncamgrandeye.com
MAC Address
Document the camera's installation location and unique
MAC address. Find the MAC address printed on the
camera label. This information may be needed during the
camera configuration.
Power over Ethernet (PoE),
IEEE standard 802.3af
0 to +40°C (-32 to +104°F)
Polymer
0.20 kg (0.44 lbs)
• Torx Screwdriver Bit
• Drilling Template
Mounting & Installation
The Evolution 05 Mini Panel Mount camera provides
quick and easy installations in shallow areas requiring
the EN50155/EN45545 transport certification.
The panel mount camera comes with an RJ45 or M12
plug and spans a 108 mm (4.25-inch) diameter. Three
Torx screws attach the front plate to the base.
Install the Mini Panel camera behind thin flat surfaces of
1 to 3 mm (.04 to .12-inch) thickness, such as walls or
ceilings.
NOTICE: Do not over-tighten the Torx screws. Only hand
tighten.
1.
Prepare the surface
by using the supplied
drilling template. Drill
holes appropriately
sized for the three
base holes and center
clearance hole.
2.
Loosen the three screws
from the front plate
using the Torx tool.
Remove the front plate.
3.
Position the camera
behind the panel
surface with the fisheye
lens protruding through
the center hole. Align
the surrounding three
holes.
4.
Reattach the front plate
using the three Torx
screws. The panel is
sandwiched between
the front plate and the
camera.
5.
Apply power and remove the screen protection.
