Atmel AVR2040: REB231ED Evaluation Kit
Features
This application note briefly describes how to set up and run the pre-flashed
performance test application included with the Atmel
The Atmel Controller Base Board (CBB) is intended to serve as the microcontroller
platform for the Atmel Radio Extender Board (REB) family. A REB connected to a
CBB forms a battery powered, fully functional and portable wireless node. The
REB231ED evaluation kit was created for evaluating the
transceiver.
1 Kit contents
2 x Atmel Controller Base Board (CBB)
2 x REB231ED Radio Extender Board (REB)
2 x RS232 level shifter cable
4 x AAA battery
1 x Quick start guide

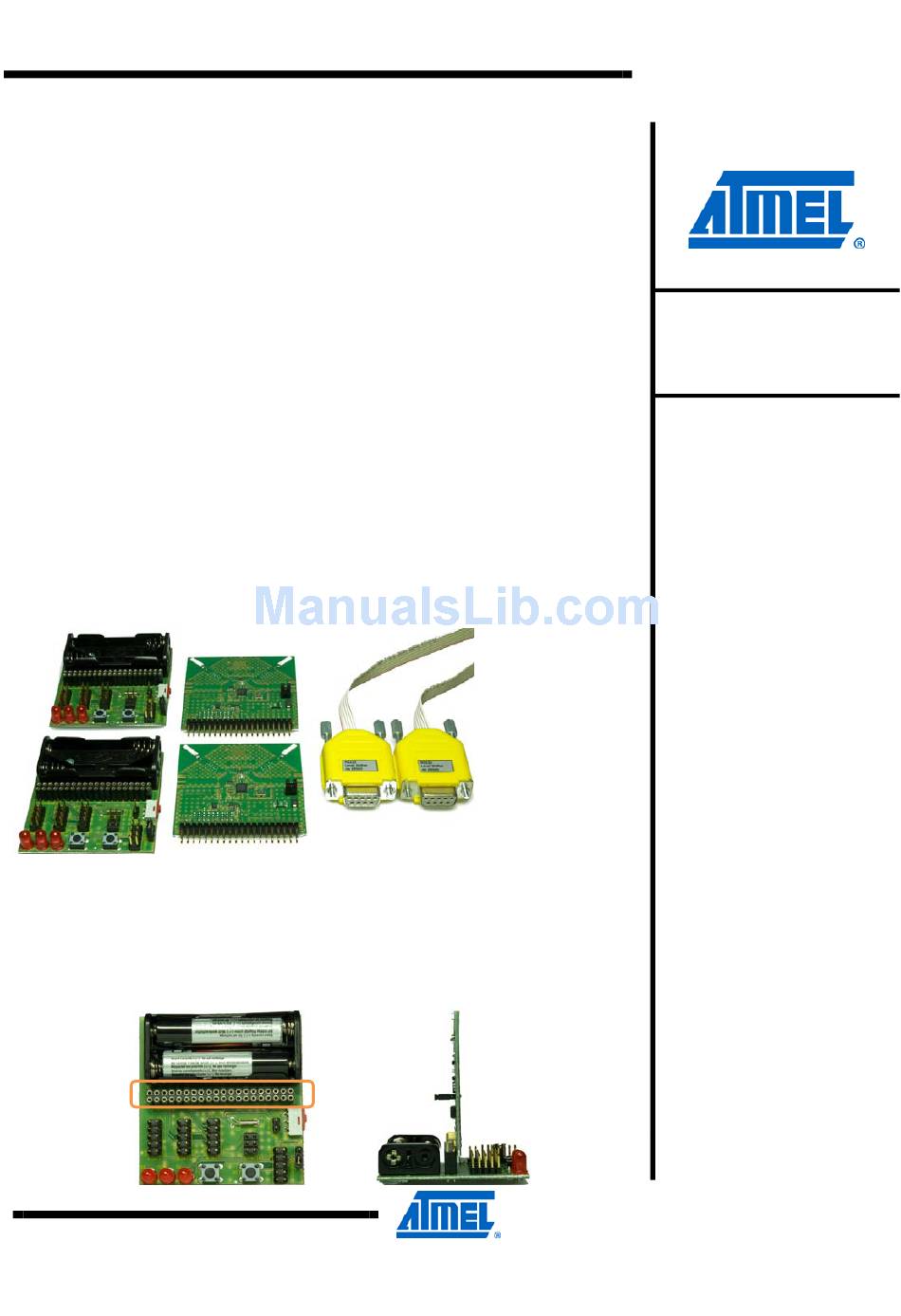

From left to right: 2 x CBB, 2 x REB, 2 x RS232 cable.
2 Board assembling
1. Check/set power switch off on the two CBBs.
2. Insert two batteries in each CBB.
3. Connect each REB to a CCB to create two REB-CBB assemblies.
Expand1
Connector
Quick Start Guide
®
REB231ED evaluation kit.
Atmel AT86RF231
8-bit Atmel
Microcontrollers
Application Note
radio
Rev. 8381B-AVR-09/11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel REB231ED
Summary of Contents for Atmel REB231ED
-
Page 1: Quick Start Guide
Microcontrollers The Atmel Controller Base Board (CBB) is intended to serve as the microcontroller platform for the Atmel Radio Extender Board (REB) family. A REB connected to a CBB forms a battery powered, fully functional and portable wireless node. The... - Page 2 CBB 3 Simple range measurement The pre-flashed performance test suite on the REB231ED evaluation kit assemblies features a simple range measurement application. Each assembly operates in a standalone manner, and is able to transmit or receive data frames. A successful transmit or receive operation is indicated by a blinking LED.
- Page 3 UART terminal program. Type the character “S” to run the application. A detailed description of the menu options can be found in the Atmel REB231ED Evaluation Kit User Guide. 5 Applications and documentation Additional hardware and software documentation related to the REB231ED evaluation kit can be found on the kit website: http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4834...
- Page 4 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL...
- Page 5 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Atmel ATREB231ED-EK...
