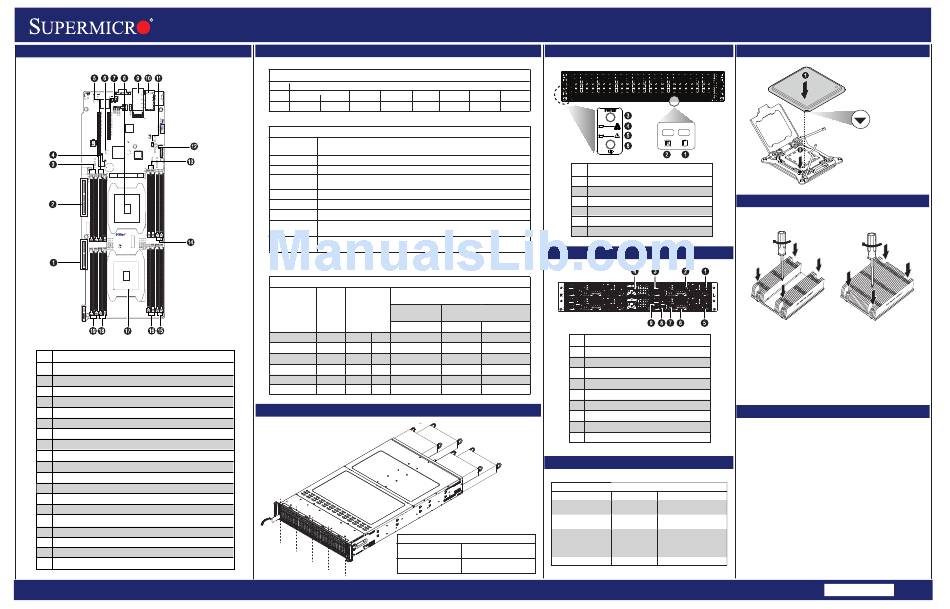

SuperServer 2028TP-HC1R/HC1TR/HC1FR Quick Reference Guide
Board Layout
5
6
7
8
9 10
11
LAN1/LAN2
USB0/1
(3.0)
IB_LINK_LED1
VGA
BMC
IPMI_LAN
Slot1
Slot2
BIOS
QSFP
IB
LAN CTRL
10G/1G
12
JTPM1
4
PCH
CPLD
JBT1
13
3
BATTERY
SXB1
CPU2_VRM_HS1
CPU2
2
X10DRT-P Series
Rev. 1.02
14
SXB2
1
CPU1
Note:
Install CPU1 first
19
18
17
16
15
No.
Description
SXB2: I-SATA 0-5/PCI-E 3.0 x8 Slot supported by CPU1
1
2
SXB1: S-SATA 0-2/PCI-E 3.0 x16 Slot supported by CPU2
3
P2-DIMME1/P2-DIMME2 slot
4
P2-DIMMF1/P2-DIMMF2 slot
5
Slot1: CPU2 Slot1 PCI-E 3.0 x16
6
JBT1: CMOS Clear
7
Slot2: CPU2 Slot2 PCI-E 3.0 x8
8
CPU2
9
InfiniBand (FDR) Connector (2028TP-HC1FR only)
10
Gigabit LAN1/LAN2 or 10G Base-T Connector (2028TP-HC1TR only)
11
S-SATA3: SATA DOM (Disk_On_Module) with Power-pin Connector
12
JSD1: SATA DOM (Device_on_Module) Power Connector
13
P2-DIMMH1/P2-DIMMH2 slot
14
P2-DIMMG1/P1-DIMMG2 slot
15
P1-DIMMA1/P1-DIMMA2 slot
16
P1-DIMMB1/P1-DIMMB2 slot
17
CPU1 (Install CPU1 first)
18
P1-DIMMC1/P1-DIMMC2 slot
19
P1-DIMMD1/P1-DIMMD2 slot
MEMORY
Processors and their Corresponding Memory Modules
Corresponding DIMM Modules
CPU#
CPU 1
P1-DIMMA1
P1-DIMMB1
P1-DIMMC1
P1-DIMMD1
P1-DIMMA2
CPU 2
P2-DIMME1
P2-DIMMF1
P2-DIMMG1
P2-DIMMH1
P2-DIMME2
Processors and Memory Module Population for Optimal Performance
CPU and Memory Population Configuration Table
Number of
(For memory to work properly, follow the instructions below)
CPUs + DIMMs
1 CPU & 2 DIMMs
CPU1: P1-DIMMA1/P1-DIMMB1
1 CPU & 4 DIMMs
CPU1: P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU & 5~8 DIMMs
CPU1: P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 +
Any memory pairs in P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slot
2 CPUs & 4 DIMMs
CPU1 + CPU2: P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs & 6 DIMMs
CPU1 + CPU2: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs & 8 DIMMs
CPU1 + CPU2: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
CPU1 + CPU2: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
2 CPUs &
+ Any memory pairs in P1, P2 DIMM slots
10~16 DIMMs
CPU1 + CPU2: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1,
2 CPUs & 16 DIMMs
P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2
Populating RDIMM/LRDIMM Memory Modules
Intel E5-2600v3 Series Processor Memory Support
Type
Ranks
DIMM
Speed (MT/s), Voltage (V), Slot per Channel
Per
Capacity (GB)
(SPC) and DIMM Per Channel (DPC)
DIMM
1 Slot Per
& Data
Channel
Width
1DPC
4Gb
8Gb
1.2V
RDIMM
SRx4
8GB
16GB
2133 MHz
RDIMM
SRx8
4GB
8GB
2133 MHz
RDIMM
DRx8
8GB
16GB
2133 MHz
RDIMM
DRx4
16GB
32GB
2133 MHz
LRDIMM
QRx4
32GB
64GB
2133 MHz
Nodes and Corresponding Hard Drives
MB:A
MB:B
ID tag
Motherboard Drawer Locations in the Chassis
Motherboard B
Node A
Controls HDDs B1 to B6
Node B
Motherboard A
Node C
Controls HDDs A1 to A6
Node D
Front view & Interface
P1-DIMMB2
P1-DIMMC2
P1-DIMMD2
P2-DIMMF2
P2-DIMMG2
P2-DIMMH2
No.
Description
1
Hard Drive Signal
2
Hard Drive Fail
3
Power Button
4
LAN LED
5
Alert
6
UID Button
Rear View
2 Slots Per Channel
1DPC
2DPC
1.2V
1.2V
No.
Description
2133 MHz
1866 MHz
1
0 Slot
2133 MHz
1866 MHz
2
Low-Profile PCI-E Slot
2133 MHz
1866 MHz
3
IPMI LAN Port
2133 MHz
1866 MHz
Power Supply Module
4
2133 MHz
2133 MHz
UID Button
5
VGA Connector
6
7
InfiniBand Port (2028TP-HC1FR only)
8
G_LAN or 10G Base-T Connector
9
USB Ports
Beep Codes
MB:C
MB:D
BIOS Beep Codes
Beep Code/LED
Message
1 beep
Refresh
5 short beeps + 1 long
Memory Error
beep
Display memory
5 beeps and 2 short
read/write error
beeps
Motherboard D
Controls HDDs D1 to D6
1 continuous beep
System Overheat
Motherboard C
Controls HDDs C1 to C6
CPU Installation
3
4
5
6
2
1
Heatsink Installation
Screw #C
Screw #A
Screw #B
4
3
2
1
9
8
7
6
5
SNK-P0047PSM for CPU1
(Close to fan)
1. Place the heatsink on top of the installed CPU.
2. Align the four screws to the socket.
3. Holding the heatsink in place, screw down as shown
(cross pattern, in order: A, C, B, D).
4. Note: Only use 6-8 lb/f of torque; otherwise, hand-tighten
each screw to avoid damaging the CPU.
!
