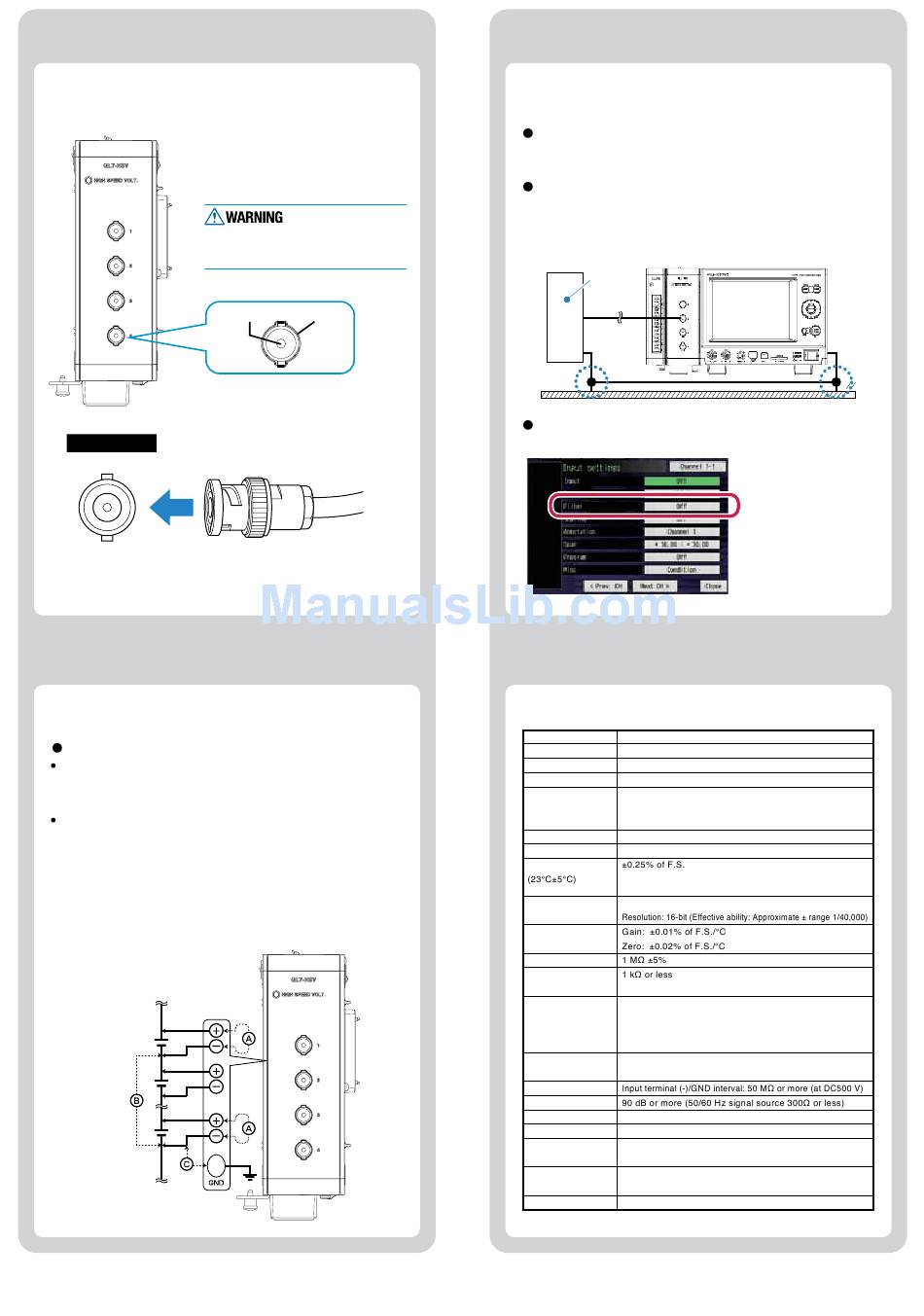

3 How to Connect to Analog Signal Terminal
This explains how to connect the input cable.
+
-
During wiring, confirm that the
signal's supply source is turned OFF
to prevent electrical shocks.
Voltage input
BNC Connector
4 Regarding Maximum Input Voltage
To avoid break-downs or short-circuiting accidents, please
make sure to abide by the items written below.
Maximum input voltage
In case the input voltage exceeds the specifications, the
circuit at the input part will break down so even if the input
voltage exceeds the specifications only for an instant, please
don't input.
Please take care that no static electricity is applied on the
analog signal input terminal.
<Input terminal +/- terminal interval (A etc. on the figure below)>
Maximum input voltage : 100 mV to 1 V range 60Vp-p
: 2 V to 100 V range 100Vp-p
<Input terminal (-)/Input terminal (-) interval (B etc. on the figure below)>
Maximum input voltage: 60Vp-p
Withstand voltage: 1000Vp-p/1minute
<Input terminal (-)/GND terminal interval C etc. on the figure below)>
Maximum input voltage: 60Vp-p
Withstand voltage: 1000Vp-p/1 minute
: High-voltage terminal
(Terminal
for inputting the high-voltage side
of the input signal)
:
Low voltage terminal
(Terminal
for inputting the low-voltage side of
the input signal)
+ -
BNC Cable
5 Noise Countermeasures
In case the measured values fluctuate due to exogenous
noise, the following measures are recommended.
(Depending on the type of noise, the result may change.)
Make absolutely sure to ground the chassis GND
of the measuring object
Absolutely making sure to ground the chassis GND of the
measuring object to a favorable ground may have an effect.
Connecting the chassis GNDs of the measuring
object and the instrument
Connecting the chassis GND of the measuring object and
the GND terminal of the main module with an electrical
cable as short and thick as possible, and further gaining
potential equalization by grounding it may have an effect.
Equipment to
be measured
GND terminal
Grounding
Using the filter function of the instrument
Setting the filter to anything but OFF on the main body's
input settings menu.
For details, please refer to the User's manual recorded on the CD-ROM (included with the main module)

6 Specifications

GL7-V (High Speed Voltage Module) specifications
Item
Input ch number 4 ch/1 module
Input terminal shape BNC Connector
System All ch insulation, simultaneous sampling, unbalanced input
Sampling interval 1, 2, 5, 10, 20, 50, 100, 200, 500 nusec,
1, 2, 5, 10, 20, 50, 100, 125, 200, 250, 500 msec,
1, 2, 5, 10, 20, 30 sec, 1, 2, 5, 10, 20, 30 min, 1hour
Built-in RAM 2,000,000 data
Measurement range 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, 1-5 V F.S.
Measurement accuracy
* At least 30 minutes after turning on the power, sampling
1 sec, Filter Line, GND connection
A/D converter System: sequential comparison system
Temperature coefficient
Input resistance
Input signal source
resistance
Maximum input Input terminal +/- interval : 100 mv to 1 V range 60 vp-p
voltage
Input terminal (-)/(-) interval: 60 Vp-p
Input terminal (-)/GND interval: 60 Vp-p
Withstand voltage Input terminal (-)/(-) interval: 1000 Vp-p/1 minute
Input terminal (-)/GND interval: 1000 Vp-p/1 minute
Insulation resistance
Common mode rejection
S/N (Noise) 48 db or more (+/- at short)
Frequency response DC to 200 k Hz (-3dB)
Filter LPF : OFF, Line (1.5 Hz), 5 Hz, 50 Hz, 500 Hz
(Attenuation) -dB (-5.2 dB to -1.4dB) /6 dB oct
External dimensions 49.2 × 136 × 160 mm (not including protruding parts)
[W×D×H] (approximate)
Weight 740g
GND terminal
(Screen for when the optional
display module is connected)
Contents
: 2 V to 100 V range 100 Vp-p
