UG130: Si86xxT-EVB User's Guide
The Si864xxT devices, the latest addition to the Si86xx isolator family, are 4-channel
CMOS-based galvanic digital isolators surge rated at 10 kV. Operating up to 150 Mbps,
they are available in wide body 16-pin SOIC packages and designed for the stringent
isolation needs of the industrial, commercial, and automotive markets. Various channel
configurations dictating the number of reverse channels and default output states are
also available per the Si86xx data sheet's ordering guide.

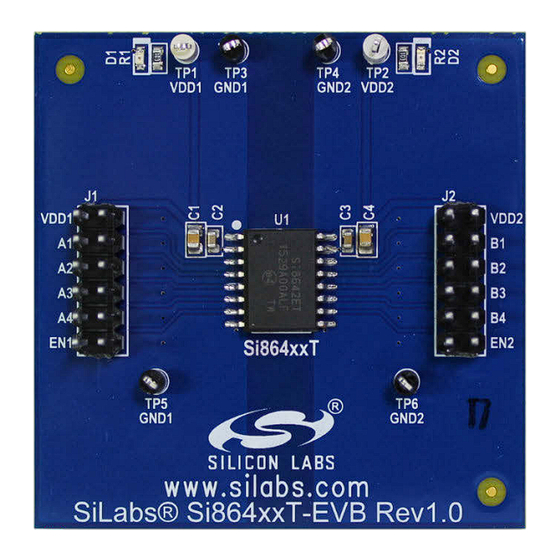

The Si864xxT-EVB allows designers to quickly evaluate the Si8642ET's capabilities
and functionality, either by driving inputs to logic low via shunts, or injecting signals to
the header pins via single wires or a 2x6 ribbon cable (not included).
For more information on our Si86xxT isolators, visit the Silicon Labs website at:
www.silabs.com/isolation. The product data sheet and application notes can be refer-
enced to help facilitate designs.
silabs.com | Smart. Connected. Energy-friendly.
KEY POINTS
• Discusses kit contents and equipment.
• Describes hardware setup and
demonstration.
• Shows EVB schematic and layout.
• Includes bill of materials and the ordering
guide for Si864xxT-KIT.
http://
Rev. 0.1
Advertisement
Table of Contents
Related Manuals for Silicon Laboratories Si86xxT-EVB
Summary of Contents for Silicon Laboratories Si86xxT-EVB
- Page 1 UG130: Si86xxT-EVB User's Guide The Si864xxT devices, the latest addition to the Si86xx isolator family, are 4-channel CMOS-based galvanic digital isolators surge rated at 10 kV. Operating up to 150 Mbps, KEY POINTS they are available in wide body 16-pin SOIC packages and designed for the stringent isolation needs of the industrial, commercial, and automotive markets.
-
Page 2: Kit Contents
UG130: Si86xxT-EVB User's Guide Kit Contents 1. Kit Contents The Si864xxT Evaluation Kit contains the following items: • Si864xxT-EVB evaluation board, shown in the figure below. • Si8642ET-IS, 4-channel (Reverse: 3 and 4), 150 Mbps, 10 kV, Wide Body, Default High I/O. -
Page 3: Required Equipment
UG130: Si86xxT-EVB User's Guide Required Equipment 2. Required Equipment The following equipment is required to demonstrate the evaluation board: • Two DC Power supplies 2.5–5.5 V, 100 mA. • (Optionally) Isolated from one another. • Four banana-to-test-clip cables with clips to supply power to the board. -
Page 4: Hardware Setup And Demonstration
UG130: Si86xxT-EVB User's Guide Hardware Setup and Demonstration 3. Hardware Setup and Demonstration 3.1 Powering the Supplies Both sides of the Si8642ET isolator accept supplies between 2.5-5.5 V. See the figure below. Perform the following steps to set up the Si864xxT-EVB: •... - Page 5 UG130: Si86xxT-EVB User's Guide Hardware Setup and Demonstration 3.2.2 Fail-safes When power is removed from one side of the isolator, the outputs at the other side of the isolator default to logic High. • A-side • Remove all shunts. • Remove A-side power supply.
- Page 6 UG130: Si86xxT-EVB User's Guide Hardware Setup and Demonstration 3.2.3 Configured For an example, see the figure below. • Place a shunt across J1 at A2. • This produces a logic Low input on forward channel A2. The SI88642ET will transmit this to the B-side, and the corresponding logic Low can be observed and measured with the DMM on J2, B2.
- Page 7 UG130: Si86xxT-EVB User's Guide Hardware Setup and Demonstration 3.2.4 Utilizing Enable For an example, see the figure below. • Place a shunt across J1 at A2. • This produces a logic Low input on forward channel A2. The SI88642ET will transmit this to the B-side, and the corresponding logic Low can be observed and measured with the DMM on J2, B2.
- Page 8 UG130: Si86xxT-EVB User's Guide Hardware Setup and Demonstration 3.3 Optional Dynamic Signal Demonstration Note: Logic inputs should NOT exceed the respective VDD. For an example, see the figure below. • Remove all shunts. • Setup signal generator and oscilloscope. • Generate 0 V to VDD1 peak, square wave (up to 300 MHz, but within the oscilloscope’s capabilities) on the signal generator.
- Page 9 UG130: Si86xxT-EVB User's Guide Schematics 4. Schematics Figure 4.1. Si86xxT-EVB Schematic silabs.com | Smart. Connected. Energy-friendly. Rev. 0.1 | 8...
- Page 10 UG130: Si86xxT-EVB User's Guide Layout 5. Layout Figure 5.1. EVB — Top Silk Figure 5.2. EVB — Bottom Silk silabs.com | Smart. Connected. Energy-friendly. Rev. 0.1 | 9...
- Page 11 UG130: Si86xxT-EVB User's Guide Layout Figure 5.3. EVB — Top Copper Figure 5.4. EVB — Bottom Copper silabs.com | Smart. Connected. Energy-friendly. Rev. 0.1 | 10...
-
Page 12: Bill Of Materials
UG130: Si86xxT-EVB User's Guide Bill of Materials 6. Bill of Materials Table 6.1. Si86xxT-EVB Bill of Materials Item No. Quantity Reference Value Manufacturer PN Manufacturer C1, C4 1 μF CL21B105KBFNNNE Samsung C2, C3 0.1 μF C0603X7R500-104K Venkel D1, D2 LTST-C190KRKT... -
Page 13: Ordering Guide
UG130: Si86xxT-EVB User's Guide Ordering Guide 7. Ordering Guide Ordering Part Number (OPN) Description Si864xxT-KIT Si8642ET 4-channel 10 kV Isolator Evaluation Kit silabs.com | Smart. Connected. Energy-friendly. Rev. 0.1 | 12... - Page 14 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
