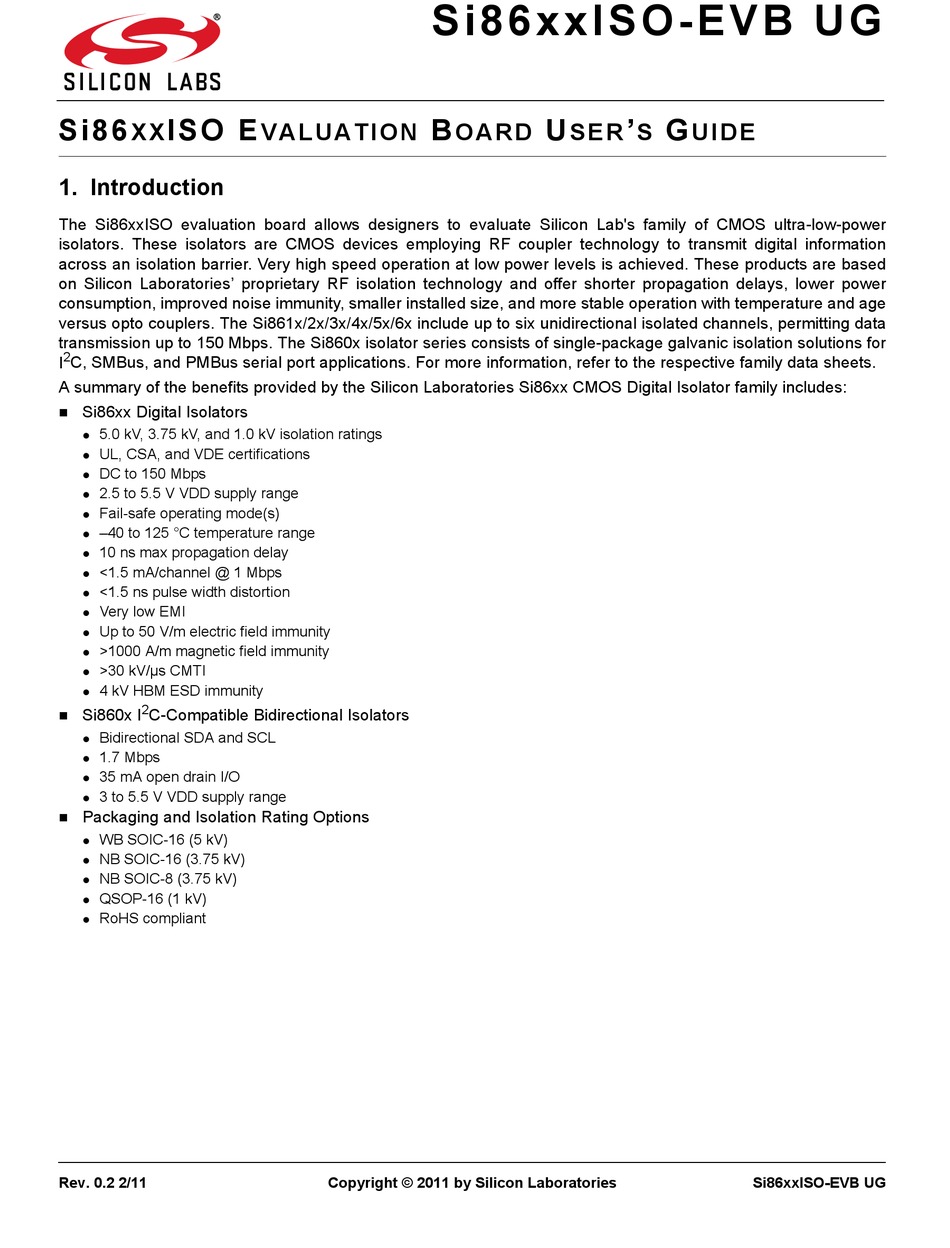

1. Introduction
The Si86xxISO evaluation board allows designers to evaluate Silicon Lab's family of CMOS ultra-low-power
isolators. These isolators are CMOS devices employing RF coupler technology to transmit digital information
across an isolation barrier. Very high speed operation at low power levels is achieved. These products are based
on Silicon Laboratories' proprietary RF isolation technology and offer shorter propagation delays, lower power
consumption, improved noise immunity, smaller installed size, and more stable operation with temperature and age
versus opto couplers. The Si861x/2x/3x/4x/5x/6x include up to six unidirectional isolated channels, permitting data
transmission up to 150 Mbps. The Si860x isolator series consists of single-package galvanic isolation solutions for
2
I C, SMBus, and PMBus serial port applications. For more information, refer to the respective family data sheets.
A summary of the benefits provided by the Silicon Laboratories Si86xx CMOS Digital Isolator family includes:
Si86xx Digital Isolators

5.0 kV, 3.75 kV, and 1.0 kV isolation ratings

UL, CSA, and VDE certifications

DC to 150 Mbps

2.5 to 5.5 V VDD supply range

Fail-safe operating mode(s)

–40 to 125 °C temperature range

10 ns max propagation delay

<1.5 mA/channel @ 1 Mbps

<1.5 ns pulse width distortion

Very low EMI

Up to 50 V/m electric field immunity

>1000 A/m magnetic field immunity

>30 kV/µs CMTI

4 kV HBM ESD immunity

2
Si860x I C-Compatible Bidirectional Isolators

Bidirectional SDA and SCL

1.7 Mbps

35 mA open drain I/O

3 to 5.5 V VDD supply range

Packaging and Isolation Rating Options

WB SOIC-16 (5 kV)

NB SOIC-16 (3.75 kV)

NB SOIC-8 (3.75 kV)

QSOP-16 (1 kV)

RoHS compliant

