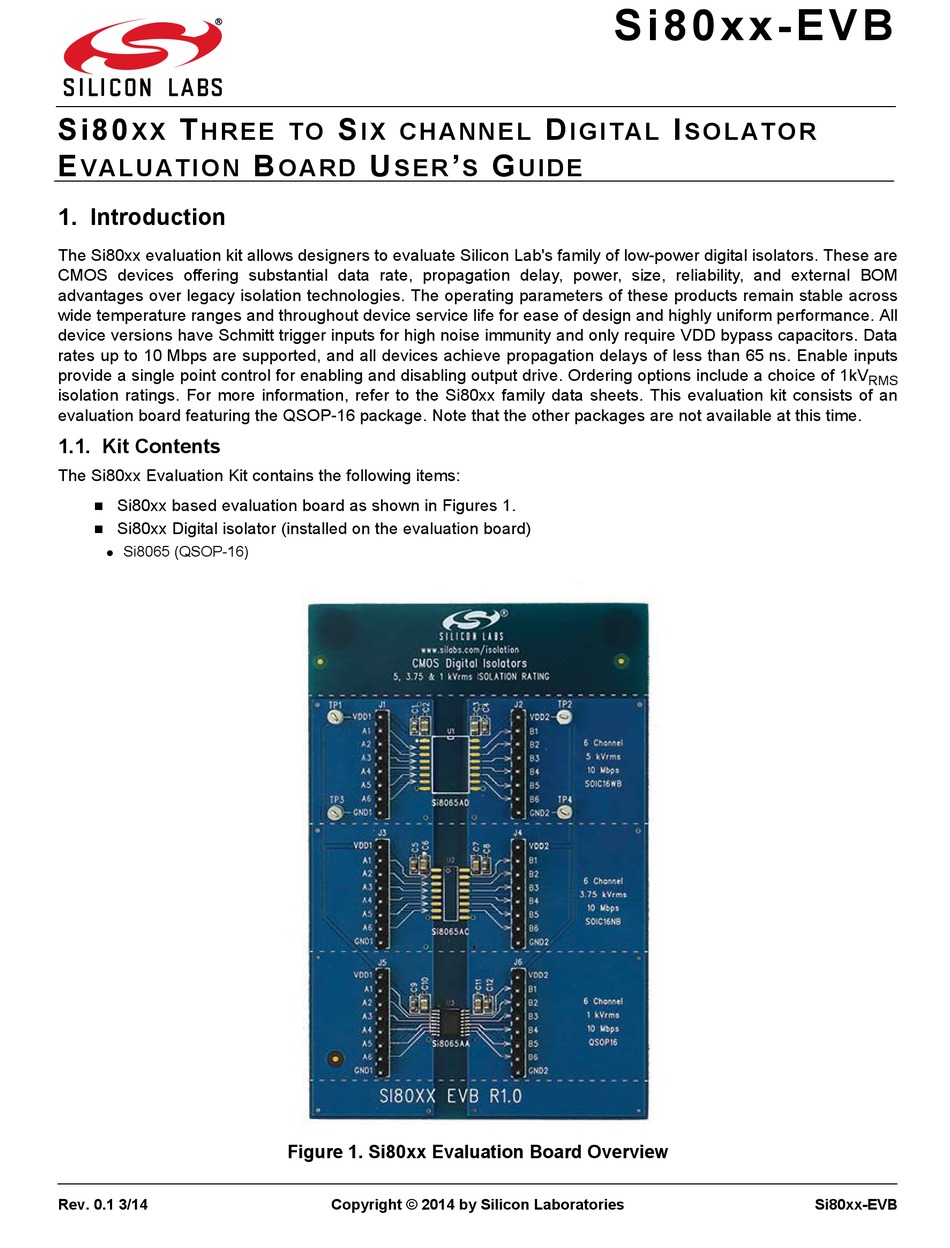

Si80xx-EVB 2. Required Equipment The following items are required to demonstrate the evaluation board: 1 digital multimeter 2 multimeter test leads (red and black) 1 oscilloscope (Tektronix TDS 2024B or equivalent) 1 BNC splitter 4 coaxial cables ...
Page 3
3. Hardware Overview and Demo Figure 2 illustrates the connection diagram used to demonstrate the Si80xx-EVB. This demo transmits a 500 kHz (5 V peak, 50 percent duty cycle) square wave through the isolator to its output. In this example, VDD1 and VDD2 are powered by 5 V supplies.
2. Connect the banana ends of the black and red banana-to-clip terminated wires to the outputs of both dc supplies. 3. For the input side of the Si80xx-EVB, connect the clip end of the red banana-to-clip terminated wire to VDD1 and the clip end of the black wire to GND1.
Page 5
Si80xx-EVB 4. Hardware and Overview Setup The board is designed to be powered from two separate supplies VDD1, VDD2 that can be independently varied from 3.15 to 5.5 V. Figure 4 shows a silkscreen overview of the board and Figure 5 shows the board schematic.
Page 9
