Advantech EKI-2428G-4FA User Manual

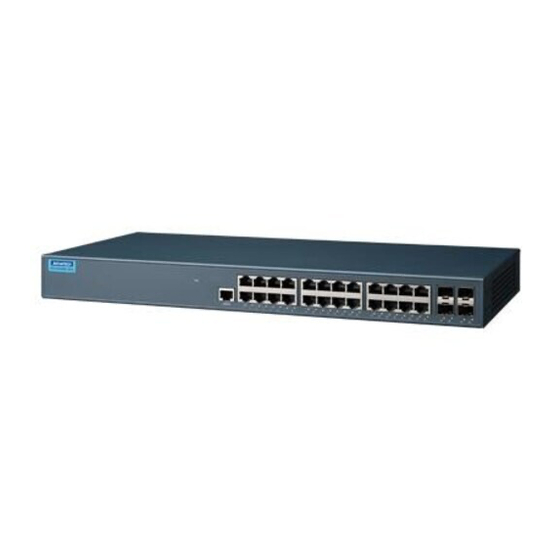

EKI-2428G-4FA
Rackmount Ummanaged Redundant Industrial Switch
Overview
The EKI-2428G is an unmanaged switch with 24
Gigabit ports and 4 Gigabit SFP ports that can
provide users with abundant ports to connect
many devices. It is designed for rack-mount
installation, and suitable for edge to core
networks.
Packing List
Before installation, please make sure that you
have received the following:
• 1 x EKI-2428G-4FA Rackmount Ummanaged
Switch
• 1 x Startup manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For more detailed information, please refer to the
full manual which can be found on the Advan-
tech's website.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/products
For technical support and service:
http://www.advantech.com/support/
This startup manual is for EKI-2428G-4FA
Part No: 1st Edition
Dec 2017
Specifications
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3ab, 802.3z
• LAN: 10/100/1000 Base-TX
• SFP: Up to 110 km (depends on SFP)
• Ethernet RJ-45 Distance: Up to 100 m
• Connectors:
24 x 10/100/1000Base-T/TX RJ-45
4 x SFP(mini-GBIC) port
• Power Requirements:
100~240V single AC power input
• Power Consumption: 18 W
• Dimensions (W x H x D): 442 x 44 x 211.1 mm
• Enclosure: Metal shell with solid mounting kits
• Operating Temperature: 0 ~ 55°C (32 ~ 131°F)
• Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
• Operating Humidity: 10 ~ 95% (non-condensing)
• Storage Humidity: 10 ~ 95% (non-condensing)
• EMC: CE FCC Class A
• Warranty: 5years
1 Startup Manual
