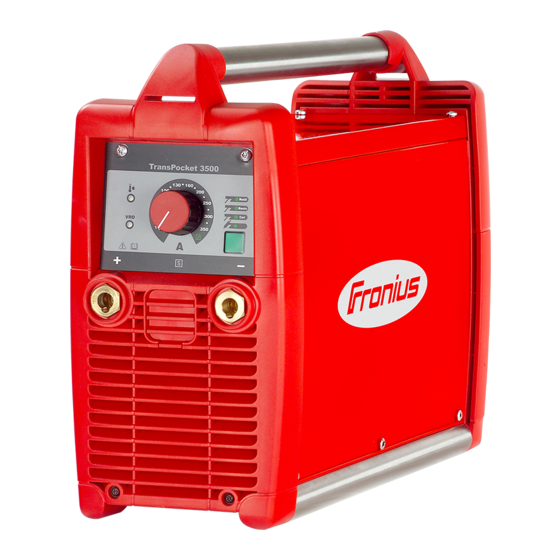

- Page 1 / Perfect Charging / Perfect Welding / Solar Energy Operating Instructions TransPocket 2500/3500 TransPocket 2500/3500 RC Rod electrode power source TransPocket 2500/3500 TIG 42,0426,0041,EN 001-13072018...
-
Page 3: Table Of Contents
Contents General ..............................Principle ..............................Device concept ............................. Application areas ..........................Control elements and connections......................Safety..............................Connections ............................Operating elements..........................Before commissioning..........................Safety..............................Proper use ............................Setup regulations ..........................Mains connection ..........................Changing mains voltage (only MVm versions)................... General remarks ........................... Mains voltage tolerance range...................... - Page 4 Generator-powered operation....................... TransPocket 2500, 2500 RC, 2500 TIG....................TransPocket 2500 MVm, 2500 TIG MVm ..................... TransPocket 3500, 3500 RC, 3500 TIG....................TransPocket 3500 MVm, 3500 TIG MVm ....................
-
Page 5: General
General Principle The TP 2500 and TP 3500 power sources are a further highlight of the new generation of inverter power sources. Using powerful electronics, a unique high-performance, lightweight welding system has been crea- ted. The power source works on resonance in- verter principles and therefore offers a number of advantages: Intelligent control for stable arc and... -
Page 6: Control Elements And Connections
Control elements and connections Safety WARNING! Operating the equipment incorrectly can cause serious injury and damage. Do not use the functions described until you have thoroughly read and understood the following documents: these operating instructions all the operating instructions for the system components, especially the safe- ty rules NOTE! Due to software updates, you may find that your device has certain func- tions that are not described in these operating instructions or vice versa. -
Page 7: Operating Elements
(-) current socket with bayonet latch For connecting the: Rod electrode or grounding cable for manual metal arc (MMA) welding, depend- ing on the type of electrode being used Welding torch in TIG welding (current connection) Remote control connection socket For connecting a remote control Operating ele- ments... -
Page 8: Before Commissioning
Proper use The power source is intended exclusively for MMA welding and TIG welding in conjunction with system components from Fronius. Utilisation for any other purpose, or in any other manner, shall be deemed to be not in ac- cordance with the intended purpose. -
Page 9: Changing Mains Voltage (Only Mvm Versions)
Changing mains voltage (only MVm versions) General remarks MVm machines (MultiVoltage manual) are suitable for operation with a mains voltage of 380 - 460V and a mains voltage of 200 - 240V. NOTE! Machines are supplied with the 380 - 460V setting as standard. If the mains voltage range needs to be reset, this must be done manually. -
Page 10: Single-Phase Operation
200V - 240V Single-phase op- MVm machines can be used in single phase operation (e.g. 1x230V) if required. However, eration this reduces the welding current range. Please see the "Technical Data" section for the rel- evant performance data. Fit the mains cable and mains plug in accordance with the appli- cable national standards. -
Page 11: Mma Welding
MMA welding Safety WARNING! Operating the equipment incorrectly can cause serious injury and damage. Do not use the functions described here until you have fully read and understood the following documents: These Operating Instructions All the Operating Instructions for the system components, especially the safety rules WARNING! An electric shock can be fatal. -
Page 12: Hotstart Function (Used With Rutile And Cel Processes)
HotStart function Benefits: (used with rutile Improved ignition properties, even I (A) and Cel process- when using electrodes with poor igniti- on properties 117A Better fusion of the base material du- ring the start-up phase, meaning fewer cold-shut defects Largely prevents slag inclusions 1,5 s Example of HotStart function Mode of operation:... -
Page 13: Tig Welding
TIG welding Safety WARNING! Operating the equipment incorrectly can cause serious injury and damage. Do not use the functions described here until you have fully read and understood the following documents: These Operating Instructions All the Operating Instructions for the system components, especially the safety rules WARNING! An electric shock can be fatal. -
Page 14: Selecting The Process
If using a gas-valve torch: Move the mains switch to the "I" position Open the gas cut-off valve on the torch or press the torch trigger and set the desired gas flow rate at the pressure regulator If using welding torch TTG 2200 TCS (TP 2500/3500 TIG only) to set the gas flow rate: Move the mains switch to the "O"... -
Page 15: Tig Comfort Stop Function
Placing the gas nozzle down Arc ignites when electrode is Raising the gas nozzle, arc ig- touched down on workpiece nites Torch settings when welding begins TIG Comfort Stop The "TIG Comfort Stop" function (TCS) is only available with the TP 2500/3500 TIG power function source. - Page 16 The downslope depends on the welding current selected and cannot be adjusted. The du- ration of the downslope between the following values must be extrapolated. Downslope with low welding current (10 A):0.4 seconds Downslope with maximum welding current (250 A):10 seconds Gas post-flow time: The gas post-flow time depends on the welding current selected and cannot be adjusted.
-
Page 17: The Setup Menu
The Setup menu Setting options Welding process Settable parameters Factory setting Arc-force dynamic Level 2 Arc-force dynamic Level 2 Cel characteristic and arc-force dynamic Level 2 TIG Comfort Stop Level 0 Pulse frequency (TP 2500/3500 TIG only) Level 1 Functional princi- The parameters can be set at 4 levels (TP 2500/3500) or 5 levels (TP 2500/3500 TIG). -
Page 18: Arc-Force Dynamic Parameter
Arc-force dynam- The purpose of the arc-force dynamic para- ic parameter meter is to influence the short-circuit ampe- rage at the moment of droplet transfer. If the rod electrode has a tendency to stick, adjust the arc-force dynamic parameter to a higher level. -
Page 19: Pulsing Frequency Parameter
Pulsing frequen- The frequency parameter is only available on the TP 2500/3500 TIG power source and is cy parameter used to set the frequency of the pulsed arc. The pulsed arc frequency is one of the most important criterion for the TIG pulsed arc weld- ing properties. -
Page 20: Voltage Reduction Device (Vrd Versions Only)
Voltage Reduction Device (VRD versions only) General A Voltage Reduction Device (VRD) is an optional safety device for reducing the voltage. As far as possible, VRD prevents output voltages at the current sockets that may pose a danger to persons. Safety principle Welding circuit resistance is greater than the minimum human body resistance (gre-... -
Page 21: Troubleshooting
Troubleshooting Safety WARNING! An electric shock can be fatal. Before opening the device Turn the mains switch to the "O" position Unplug the machine from the mains Prevent it from being switched on again Using a suitable measuring instrument, check to make sure that electrically charged components (e.g. - Page 22 No welding current Device switched on, indicator for the selected welding process is lit, error indicator lit Cause: Duty cycle exceeded - device overloaded - fan running Remedy: Keep within duty cycle Cause: Thermostatic automatic circuit breaker has switched off the device Remedy: Wait until the power source comes back on automatically at the end of the cooling phase (do not switch off the device - the fan will cool it down)
-
Page 23: Status Indicators
LED for set process is flashing Cause: Single-phase operation with a welding current greater than 140A Remedy: Select a welding current less than 140A and continue welding Cause: Phase failure Remedy: Check the mains lead Poor weld properties (severe spattering) Cause: Incorrect electrode polarity Remedy:... - Page 24 Ground current (earth current watchdog option only) Indicators shown on the right light up, VRD indicator flashes red Cause: Current flowing via device earth Remedy: Check ground earth connection to workpiece, switch ma- chine off and on again; if error keeps recurring, have machine serviced Short circuit after switching on the machine Indicators shown on the right light up, VRD indicator flashes red...
-
Page 25: Care, Maintenance And Disposal
Care, maintenance and disposal General Under normal operating conditions, the power source requires only a minimum of care and maintenance. However, some important points must be noted to ensure that the welding system remains in a usable condition for many years. WARNING! An electric shock can be fatal. -
Page 26: Technical Data
Technical data Safety NOTE! An inadequately dimensioned electrical installation can cause serious damage. The mains lead and its fuse protection must be rated accordingly. The technical data shown on the rating plate applies. Generator-pow- The power sources in the TP 2500/3500 series are totally generator-compatible, provided ered operation that the maximum apparent power delivered by the generator is at least 14 kVA for the TP 2500 or 22 kVA for the TP 3500. -
Page 27: Transpocket 2500 Mvm, 2500 Tig Mvm
TransPocket Mains voltage (U 200 V 230 V 2500 MVm, 2500 Max. effective primary current (I 16.2 A 15.9 A TIG MVm 1eff Max. primary current (I 27.4 A 26.8 A 1max Mains fuse protection 20 A slow-blow Mains voltage (U 380 V 400 V 460 V... -
Page 28: Transpocket 3500 Mvm, 3500 Tig Mvm
Welding current range (I 10 - 350 A 10 - 350 A Welding current at 10 min/40 °C (104 °F) 100% 350 A 280 A 230 A Output voltage range according to standard characteristic 20.4 - 34 V 10.4 - 24 V Open circuit voltage (U peak, U r.m.s) - Page 29 Open circuit voltage (U peak, U r.m.s) 88 V Open circuit voltage VRD 12 V Degree of protection IP 23 Type of cooling Overvoltage category Pollution level according to IEC60664 Safety symbols S, CE, CSA Dimensions l x w x h 500 x 190 x 380 mm 19.68 x 7.48 x 14.96 in.
