Quick - Adjust Point - Reliable Controls SMART-Space Controller User Manual

Q - P
UICK ADJUST OINT
Q - P
UICK ADJUST OINT
Typically, SMART-Space Controllers are configured to give occupants the capability to
adjust the temperature setpoint for the room they occupy. The setpoint adjustment
procedure can be greatly simplified if the programmer has implemented the quick-adjust
point feature.
If a quick-adjust point is configured (described later in this section), pressing either the
or buttons will instantly cause the quick-adjust point to be displayed and adjusted.
Holding the adjustment buttons down will cause the adjustment increment to gradually
increase, allowing for gross adjustment. After adjustment is complete, the display will flash
briefly until the value is uploaded to the controller. The display will revert back to the default
screen after 10 seconds without button activity.
The quick-adjust feature can be used to provide easy adjustment of any single setpoint in
the controller.

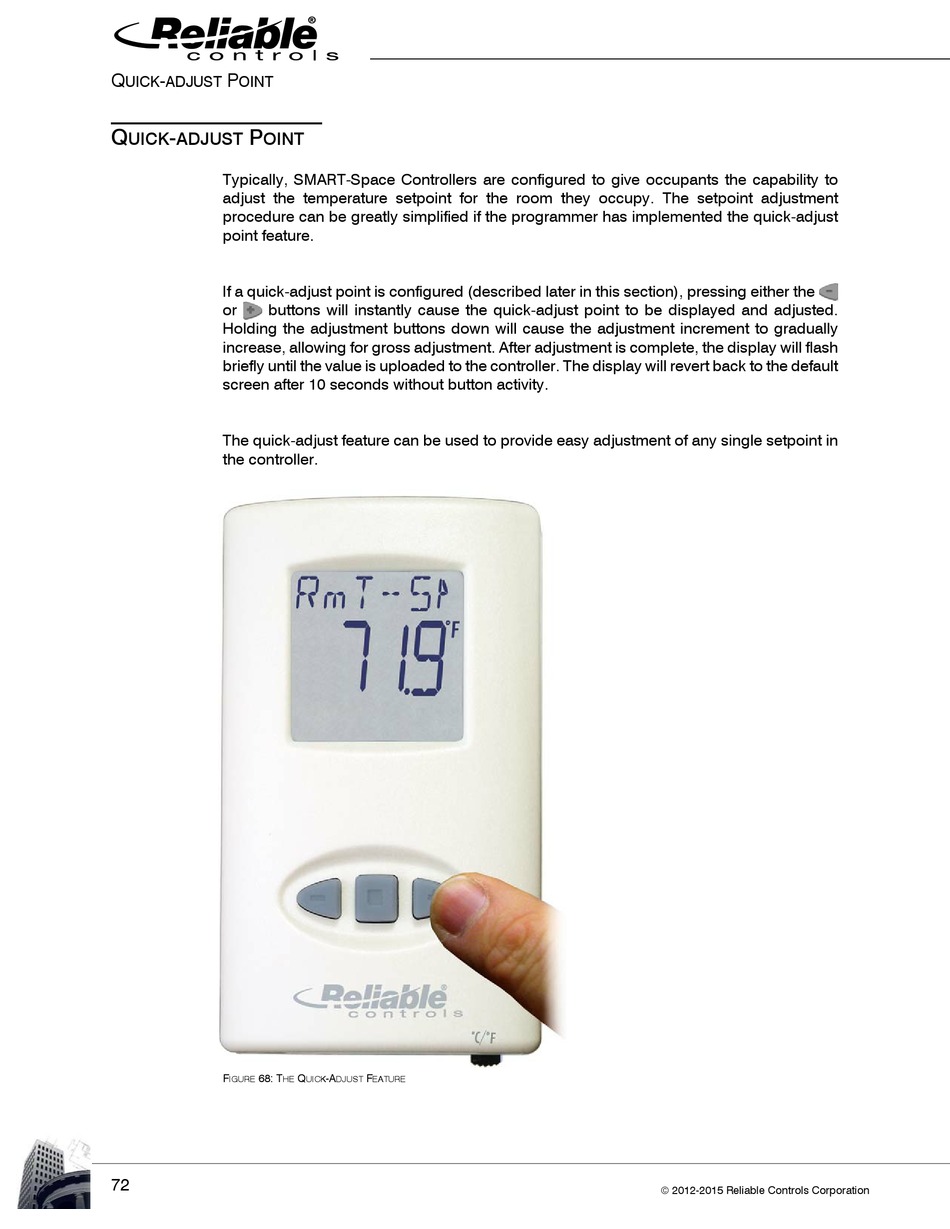

F 68: T
IGURE HE
72
Q -A F
UICK DJUST EATURE
