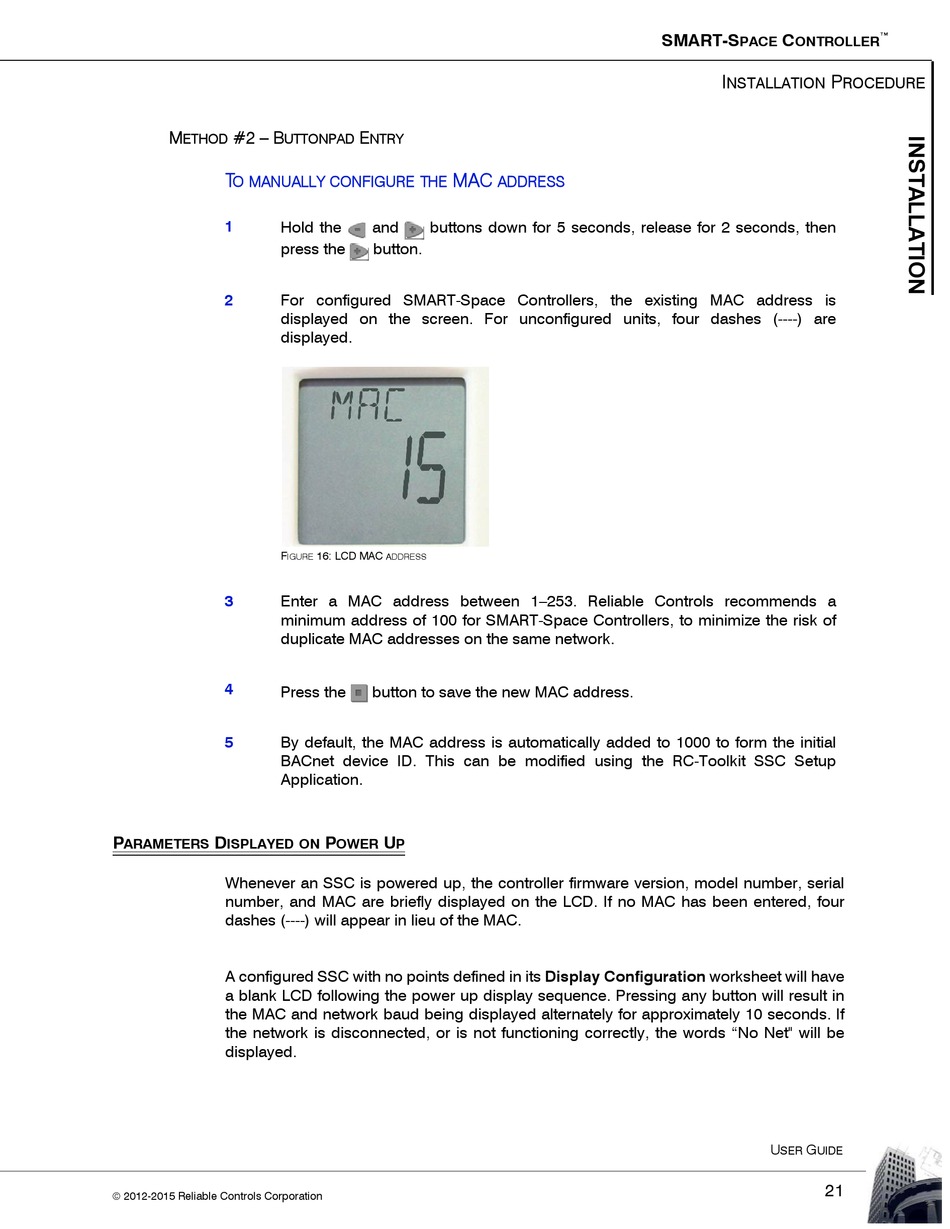

M #2 – B
ETHOD UTTONPAD
T
O MANUALLY CONFIGURE THE
1
Hold the
press the
2 For configured SMART-Space Controllers, the existing MAC address is
displayed on the screen. For unconfigured units, four dashes (----) are
displayed.
F
IGURE
3 Enter a MAC address between 1–253. Reliable Controls recommends a
minimum address of 100 for SMART-Space Controllers, to minimize the risk of
duplicate MAC addresses on the same network.
4
Press the
5 By default, the MAC address is automatically added to 1000 to form the initial
BACnet device ID. This can be modified using the RC-Toolkit SSC Setup
Application.
P D
ARAMETERS ISPLAYED ON
Whenever an SSC is powered up, the controller firmware version, model number, serial
number, and MAC are briefly displayed on the LCD. If no MAC has been entered, four
dashes (----) will appear in lieu of the MAC.
A configured SSC with no points defined in its Display Configuration worksheet will have
a blank LCD following the power up display sequence. Pressing any button will result in
the MAC and network baud being displayed alternately for approximately 10 seconds. If
the network is disconnected, or is not functioning correctly, the words "No Net" will be
displayed.
 2012-2015 Reliable Controls Corporation
E
NTRY
MAC
and buttons down for 5 seconds, release for 2 seconds, then
button.
16: LCD MAC
ADDRESS
button to save the new MAC address.
P U
OWER P
SMART-S
ADDRESS
C ™
PACE ONTROLLER
I P
NSTALLATION ROCEDURE
U G
SER UIDE
21
