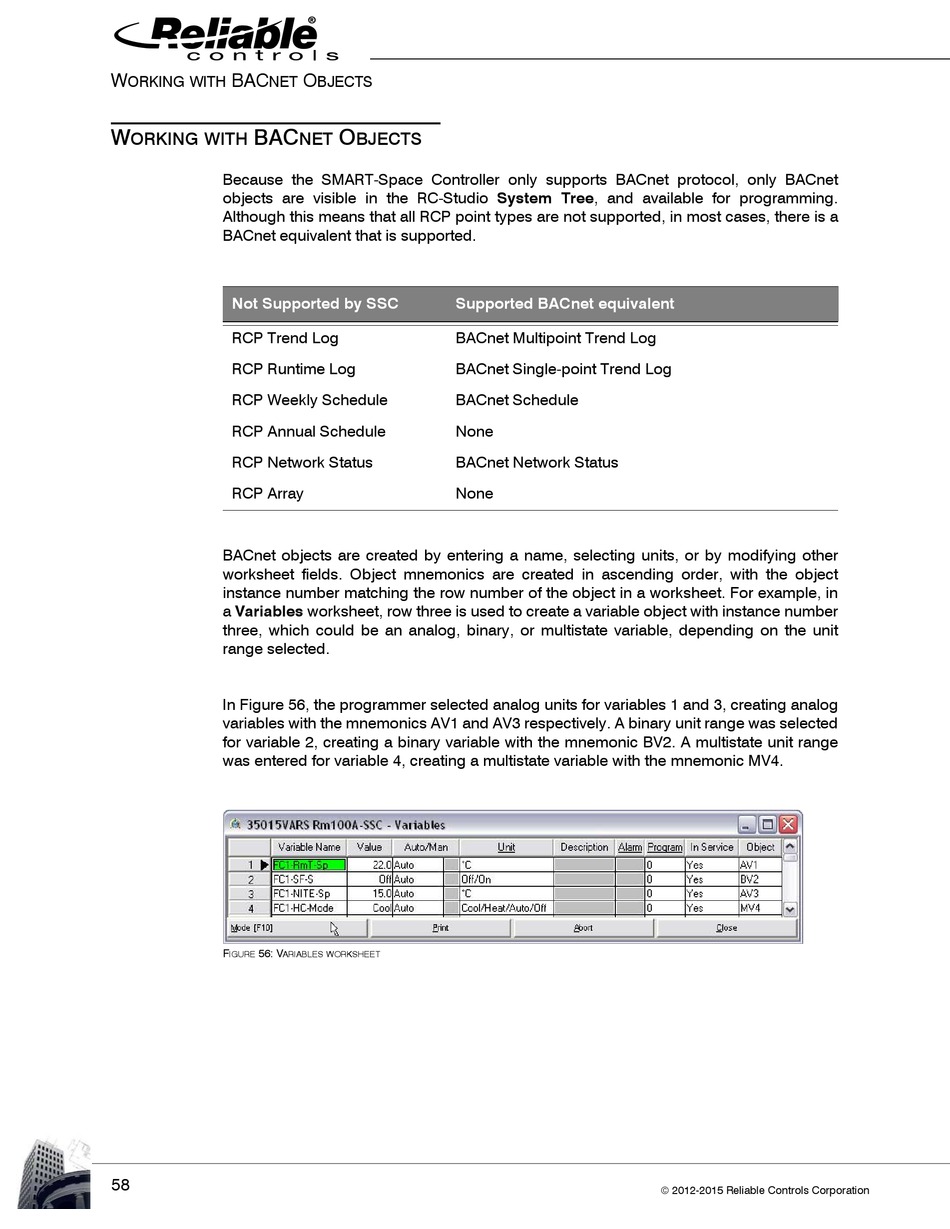

W BAC
ORKING WITH NET
W BAC
ORKING WITH
Because the SMART-Space Controller only supports BACnet protocol, only BACnet
objects are visible in the RC-Studio System Tree, and available for programming.
Although this means that all RCP point types are not supported, in most cases, there is a
BACnet equivalent that is supported.
Not Supported by SSC
RCP Trend Log
RCP Runtime Log
RCP Weekly Schedule
RCP Annual Schedule
RCP Network Status
RCP Array
BACnet objects are created by entering a name, selecting units, or by modifying other
worksheet fields. Object mnemonics are created in ascending order, with the object
instance number matching the row number of the object in a worksheet. For example, in
a Variables worksheet, row three is used to create a variable object with instance number
three, which could be an analog, binary, or multistate variable, depending on the unit
range selected.
In Figure 56, the programmer selected analog units for variables 1 and 3, creating analog
variables with the mnemonics AV1 and AV3 respectively. A binary unit range was selected
for variable 2, creating a binary variable with the mnemonic BV2. A multistate unit range
was entered for variable 4, creating a multistate variable with the mnemonic MV4.
F 56: V
IGURE ARIABLES WORKSHEET
58
O
BJECTS
O
NET BJECTS
Supported BACnet equivalent
BACnet Multipoint Trend Log
BACnet Single-point Trend Log
BACnet Schedule
None
BACnet Network Status
None
