TRENDnet TEW-511BRP Faq

Hide thumbs Also See for TEW-511BRP:

Advertisement

Quick Links

Download this manual See also: User Manual
Q: How do I configure the TEW-511BRP for a DSL, PPPoE, connection?
A:
1) Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
2) Click on Setup then Basic Setup at the top of the page.
3) Choose PPPoE in the Internet Connection Type field.
4) Enter in the information required by your ISP (Internet Service Provider) and click Apply.
Q: How do I configure the TEW-411BRP for a Cable connection?
A:
F.A.Q's for TEW-511BRP
01/16/06

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEW-511BRP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TEW-511BRP

Summary of Contents for TRENDnet TEW-511BRP

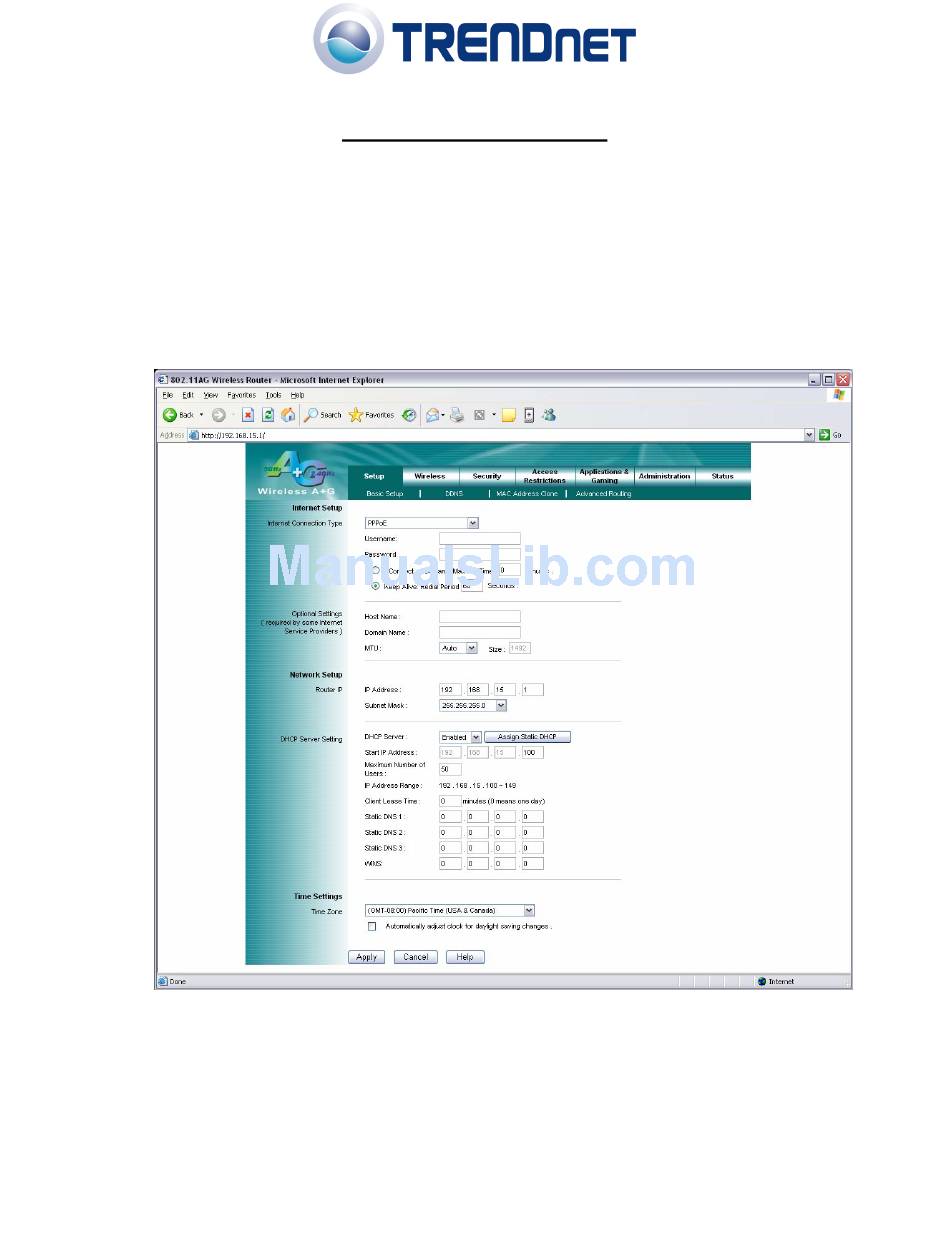

  • Page 1 Q: How do I configure the TEW-511BRP for a DSL, PPPoE, connection? 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 2 01/16/06 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin). 2) Click on Setup then Basic Setup at the top of the page.
  • Page 3 01/16/06 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin). 2) Click on Administration then Management at the top of the page.
  • Page 4 Q: How do I change the IP Address of my TEW-511BRP? 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 5 01/16/06 3) You can change the password under the Network Setup section. Q: How do I configure the TEW-511BRP? A: First configure your Wireless Ethernet Adapter to connect to the “wlan-a” or “wlan-g” SSID. Note: If you are using a hard-wired computer connected directly to a LAN port, you will use the Local Area Connection that is bound to your Ethernet Adapter.
  • Page 6 01/16/06 4) Highlight the Internet Protocol (TCP/IP) then click on Properties.
  • Page 7 01/16/06 5) Select Obtain an IP address automatically and Obtain DNS server address automatically.
  • Page 8 01/16/06 6) Click OK. 7) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 9 Q: Where can I find the MAC Address of my TEW-511BRP? 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 10 Q: How do I forward ports in my TEW-511BRP? Well Known Ports 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 11 5) Click Apply. Custom Ports 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 12 Firmware upgrades over wireless connections may damage the product. Please perform firmware upgrades with "wired" network connections only. Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 13 Q: How do I change the channel of my TEW-511BRP? Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 14 Q: How do I change the SSID of my TEW-511BRP? 1) Open your web browser and type the IP address of the TEW-511BRP in the address bar. The default IP address is 192.168.1.1. At the login, leave the username field blank and enter the password (admin).
  • Page 15 01/16/06 Enter the new SSID into the Network Name (SSID) field and click Apply. Q: Why am I getting low signal strength? A: There are a number of factors that can impact the range of wireless devices. 1) Keep the number of obstructions to a minimum. Each obstruction can reduce the range of a wireless device.
  • Page 16 01/16/06 4) Interference from devices that produce RF noise can also impact your signal. Position your wireless devices away from Microwaves, UPS’s, monitors, HAM radios, etc. Also, anything operating on the 2.4ghz frequency will cause interference. Such as 2.4ghz cordless phones or other wireless remotes operating on the 2.4ghz frequency.
