Summary of Contents for TRENDnet TEW827DRUV2

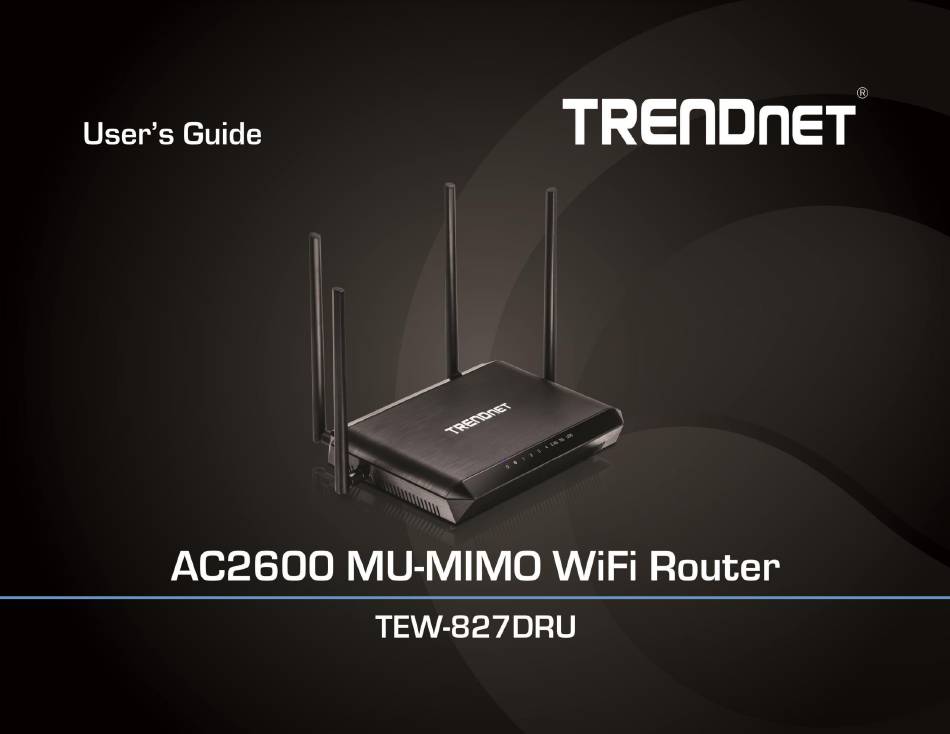

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Allow remote access to your router management page ....46 PBC (Software/Virtual Push Button) ..............22 Add static routes ......................46 PIN (Personal Identification Number) ..............22 Enable Dynamic Routing ....................47 Advanced wireless settings ..................23 © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 3 Allow/deny ping requests to your router from the Internet ........62 How to capture network packets ................62 Diagnostic Tools ......................63 Ping Watchdog ......................63 Auto Reboot ......................... 64 Wireless Client List ....................... 64 © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 4: Product Overview

    In addition to your router and 4 detachable high gain antennas, the package includes: If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased. TEW-827DRU © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 5: Features

    Guest Network Create an isolated WiFi network for guest internet access only TRENDnet’s AC2600 MU-MIMO WiFi Router, model TEW-827DRU, is built to perform in a busy connected home. It generates two quad-stream WiFi networks—a 1,733Mbps WiFi AC and a concurrent 800Mbps WiFi N network. MU-MIMO technology processes...

  • Page 6: Product Hardware Features

    Connect the included power adapter from your router power port and to an available power outlet. Reset Button Using a pen or paperclip, push and hold the reset button for 15 seconds and release to reset the router. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 7: Application Diagram

    Blinking Blue – Data Transmit/Receive. the router are broadcasted to other wireless client devices such as TVs, game consoles, or media Off – No USB device connected. bridges thereby providing Internet access for all wireless client devices. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 8: Router Setup

     Computers/devices with an Ethernet port (also called network port) or wireless networking capabilities.  A modem and Internet service to your home, provided by your ISP (modem typically supplied by your ISP).  A router to connect multiple devices to the Internet. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 9: Router Installation

    Username: _________ Password: ________________ Service Name: _________________ (Optional) DNS Servers Address 1 (Static IP): _____. _____._____._____ DNS Servers Address 2 (Static IP): _____. _____._____._____ (Optional) Reconnect Mode: Always / On Demand / Manual (Optional) © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 10 Note: If your modem includes a battery backup, remove the battery backup as well. 5. Connect your modem to the router Internet port (yellow). 6. Connect your computer to one of the router LAN ports (black). © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 11 Note: Dynamic IP (DHCP) is typical for most Internet services. You can verify your settings with your Internet Service Provider. Please wait while changes are being applied. On the following screen, click Back to go back to router login page. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 12: Connect Additional Wired Devices To Your Network

    Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured to obtain IP address settings automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server address settings automatically. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 13: Basic Router Settings

    Password on a sticker on the side of the router and on the label on the bottom of the router. Enter your Username and Password, select your preferred language, then click Login. User Name: admin Password: (xxxxxxxx) Note: User Name and Password are case sensitive. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 14: Committing Your Router Configuration Changes

    It is strongly recommended to enable security on your wireless networks. Connected Devices: The connected devices section displays the list of network devices currently connected to your router. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 15: Wireless Settings

    Disable - Turns off the ability for wireless devices to find your network. It is still supported wireless devices from obtaining higher performance and data rates. possible for wireless devices to be configured to connect to your wireless network. Disabling this setting will disable WPS functionality. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 16: Guest Network

    It is recommended to use a different name from your primary wireless network to a name that you can easily identify and differentiate from the primary. You can reference your guests to access this network instead of the primary. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 17 Please refer to page 18 to find out about different security types and page 19 for wireless security configuration.  Security Mode – Select the wireless security to use for the guest network. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 18: Parental Control

    4. Enter a Computer Name. Note: If the network device is connected to your router, you can also click the drop-down list to choose one of the network devices (MAC Address/IP Address) detected by your router. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 19 Delete column next to the rule(s) you would like to delete. Then click Delete those checked rules. If you would like to delete all rules, click Delete All. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 20: Website Filter

    Schedule section, click Define and a table will appear to define the time slots when the specified URL/website should be blocked. Note: Before defining a schedule, please ensure your Time settings are configured correctly. See page 38 to configure Time Settings. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 21: Wireless Networking And Security

    Setting up wireless security is very important. Leaving your wireless network open and standard. If you find that one of your wireless network devices does not support unsecure could expose your entire network and personal files to outsiders. TRENDnet WPA2 encryption, then set your router to either WPA or WPA-Auto encryption.

  • Page 22: Secure Your Wireless Network

    WEP Key Format ASCII Character set 0-9 & A-F, a-f only Alphanumeric (a,b,C,?,*, /,1,2, etc.) 64-bit key length 10 characters 5 characters 128-bit key length 26 characters 13 characters © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 23  Port: Enter the port your RADIUS server is configured to use for RADIUS security. authentication. Note: It is recommended to use port 1812 which is typical default RADIUS port.  Shared Secret: Enter the shared secret used to authorize your router with your RADIUS server. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 24: Connect Wireless Devices To Your Router

    WPS LED will blink to indicate WPS has been activated on your router. (See “Product Hardware Features” on page 2) For connecting additional WPS supported devices, repeat this process for each additional device. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 25: Pbc (Software/Virtual Push Button)

    Note: You should a message on your WPS client device indicating WPS was successful. 4. Wait for your router to finsh the WPS process. Note: You should a message on your WPS client device indicating WPS was successful. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 26: Multiple Ssid

    SSID. wireless name is unique to the device. It is recommended to change it to a name different from the primary SSID 1 and one that you can easily remember. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 27: Wireless Bridging Using Wds (Wireless Distribution System)

    5. To save changes to this section, click Save when finished. Commit your changes to the router by clicking on Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. Note: You can repeat the steps to enable and configure additional SSIDs. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 28 WDS capable router’s WDS configuration, not the MAC listed in the Router Status page. 4. Next to Wireless Distribution System (WDS), in an empty field, enter the MAC address of the other WDS supported wireless device you are bridging. (e.g. 00:11:22:AA:BB:CC) © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 29: Wireless Client Bridge Mode

    2. Click on Advanced and click Setup, then click on Device Mode. 3. Select Client Bridge and click Apply & Reboot. 4. Click on Wireless and click on Wireless Network, then click on Site Survey to scan for available wireless networks. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 30 7. To save changes to this section, click Save when finished. Commit your changes to the router by clicking on Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. After applying changes, you can check the connection status under Status > Connection Status. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 31: Advanced Settings

     Short Preamble: Using a short preamble can potentially increase throughput as the transfer time is 96 microseconds versus the more commonly used long © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 32 TEW-827DRU TRENDnet User’s Guide © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 33: Steps To Improve Wireless Connectivity

    3. Antenna orientation can also have a large impact on your wireless signal. Use the wireless adapter’s site survey tool to determine the best antenna orientation for your wireless devices. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 34: Advanced Router Settings

    User Name “admin” and the new password instead of the your ISP. predefined default password. If you reset the device to defaults, you will need to access the router management page use the predefined settings on the side or bottom labels. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 35: Ipv6 Settings

    Select the IPv6 connection type provided by your ISP. on page 10).  Static IPv6 2. Click on Advanced and click on Setup, then click on IPv6 Settings.  Auto-configuration (SLAAC/DHCPv6)  PPPoE  6to4  Link-Local Only © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 36: Clone A Mac Address

    Reboot. IP address will use the following format using your new IP address http://(new.ipaddress.here) to access your router management page. You can also use the default login URL http://tew-827dru © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 37: Set Up The Dhcp Server On Your Router

    IP address to be assigned to another computer or device.  Local Domain Name: Enter a domain name to issue to DHCP clients.  Primary DNS Server: Enter a primary DNS server IP address to issue to DHCP clients. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 38: Set Up Dhcp Reservation

    To save changes when modifying a reservation, click Save. Copy your PC’s MAC – To copy your current computer’s MAC address to the field, you can click Copy. Note: If you would like to discard the changes, click Clear. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 39: Enable/Disable Upnp On Your Router

    & Reboot. 5. To save changes to this section, click Apply when finished. Commit your changes to the router by clicking on Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 40: Allow/Deny Multicast Streaming

    (NOT your router or wireless network password) 5. To save changes to this section, click Save when finished. Commit your changes to the router by clicking on Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 41: Set Your Router Date And Time

    Settings section. Note: Time is specified in 24-hour format. In addition, you can the annual range when daylight saving is activated. click Synchronize with Your Computer’s Time Settings to copy the time and date settings from your computer. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 42: Create Schedules

     Special Applications  Gaming 1. Log into your router management page (see “Access your router management page” on page 10). 2. Click on Advanced and click on Setup, then click on Schedule. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 43: Access Control (Ip Protocol Filter)

    Note: Before applying scheduling, please ensure your Time settings are configured correct and you have defined a schedule. See page 38 to configure Time Settings and see page 39 “ Create Schedules” to create a schedule. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 44: Inbound Filter

    You can also delete a rule by clicking under under the Delete column next to the rule you would like to delete. the Delete column next to the rule you would like to delete. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 45: Open A Device On Your Network To The Internet

    You may want to expose a specific computer or device on your network to the Internet (TRENDnet IP cameras default to HTTP TCP port 80 for remote access web requests) on to allow anyone to access it. Your router includes the DMZ (Demilitarized Zone) feature your network to be able to view it over the Internet.
  • Page 46 It is recommended to assign a static IP address to the device or use DHCP reservation to ensure the IP address of 2. Access TRENDnet IP Camera management page and forward Port 80 (see product the device does not change.

  • Page 47: Special Applications

    You can also delete a rule by clicking under the Delete column next to the rule you would like to delete.  Rule Name – Enter a name for the port trigger rule. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 48 To define a new schedule, click New Schedule and refer to page 39 “ Create Schedules”. After you have created a new schedule, click the drop-down list and the new schedule will be available for © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 49: Allow Remote Access To Your Router Management Page

     Metric: Enter the metric or priority of the route. The metric range is 1-15, the lowest number 1 being the highest priority. (e.g. 1 )  Interface – Select the interface to assign the route. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 50: Enable Dynamic Routing

    If you have other routing devices that support dynamic routing protocol, you can enable these routing protocols on your router to learn and automatically generate the routes needed between these networks. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 51: Using External Usb Storage

    Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. 4. Computers with the iTunes application installed will be able to discover and browse the media found on the USB storage over the network. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 52  User Name: Enter the user name to be used to access your files.  Password: Enter the password for the user name. Re-type Password to confirm. 5. Review the User Account List section. Click Add to add the account. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 53: Ftp (File Transfer Protocol) Server

     Access From Internet: Selecting Enable will allow access to the USB storage using FTP over the Internet (WAN) and local (LAN) networks. Selecting Disable will disable FTP access over the Internet and allow LAN access only. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 54: Bittorrent Client Settings

    Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. Note: You can click the Settings button at the top to return to the router management page. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 55: Virtual Private Networking (Vpn)

    The additional server settings are optional (not required) and can be configured if any VPN tunnel is configured with a different IP network or subnet. issues are encountered when attempting to establish VPN connectivity. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 56 Advanced > Setup > VPN. the .ovpn extension must be changed to .conf. 3. Once you have downloaded the software, navigate to the location where you downloaded the file and double click to start the installation. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 57 4. If prompted to run the file, click Run. 6. At the license agreement window, review the license agreement and click I Agree. 5. At the installation window, click Next. 7. At the choose components window, click Next. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 58 10. At the installation completion window, click Next. 9. At the prompt to install the TAP-Windows adapter, click Install. 11. Make sure to uncheck the “Show Readme” and “Start OpenVPN GUI” options and click Finish. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 59 14. The OpenVPN system tray icon will appear in the bottom right corner. Right-click the icon to display the configuration menu. 12. Copy the client configuration file(s) (client.ovpn) downloaded from the router to the following path without any sub-folders. C:\Program Files\OpenVPN\config © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 60 You will be able to access resources securely from your router LAN network over the Internet such as shared folders, media, files, etc. Note: To disconnect your VPN client connection, right click OpenVPN system tray icon and select Disconnect. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 61: Router Maintenance & Monitoring

    2. Click on Advanced and click on Administrator, then click on Settings Management. 3. Next to Reset to Factory Default Settings and Reset, click Load Default. When prompted to confirm this action, click OK. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 62: Backup And Restore Your Router Configuration Settings

    4. A separate file navigation window should open. 5. Select the router configuration file to restore and click Import. (Default Filename: TEW-827DRU_config.bin). If prompted, click Yes or OK. 6. Wait for the router to restore settings. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 63: Upgrade Your Router Firmware

    TRENDnet may periodically release firmware upgrades that may add features or fix firmware upgrade procedure to complete successfully. problems associated with your TRENDnet router model and version. To check if there is a firmware upgrade available for your device, please check your TRENDnet model and version using the link.
  • Page 64  Do not upgrade the firmware using a wireless connection, only using a wired located and select it. network connection.  Any interruptions during the firmware upgrade process may permanently 5. Click Apply. If prompted, click Yes or OK. damage your router. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 65: Allow/Deny Ping Requests To Your Router From The Internet

    WAN ping requests from the Internet 4. To save changes to this section, click Apply when finished. Commit your changes to the router by clicking on Apply/Discard Changes in the left-hand menu, and click Apply & Reboot. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 66: Diagnostic Tools

     Ping Interval: The time interval between each connectivity (ping) test to the specified IP address or URL.  Threshold: The number of consecutive times the connectivity (ping) test is allowed to fail before the router initiates an automatic reboot. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 67: Auto Reboot

     Signal Level: Displays the estimated signal strength (RSSI) of the client device to hand menu, and click Apply & Reboot. the router.  Link Rate: Displays the estimated link rate of the client device connection to the router. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 68: Check The Router System Information

     PPPoE WAN Type: These buttons will be available in DHCP WAN type only. Connect: Click this option to connect to your DSL ISP Disconnect: Click this option to disconnect from your DSL ISP. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 69 SSID2 assigned to your router.  Guest Network / Security Mode: Displays the current 2.4GHz wireless network name and security mode of the guest network assigned to your router. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 70: View Your Router Log

    Note: Clicking Refresh will refresh the page to ensure display of the most recent logging information. Click Clear will clear and delete all of the current logging information. Log Window © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 71: Router Management Page Structure

    File Sharing Server Settings Management Multiple SSID FTP Server  Export/Import configuration MAC Filter (Wireless) BitTorrent  Reset to factory default  Eject Device Reboot Station List Time  Setup LAN Settings  Wireless 5GHz © Copyright 2016 TRENDnet. All Rights Reserved.

  • Page 72: Technical Specifications

     Dynamic (RIP v1/2)  Samba/FTP server support Frequency  Explicit Beamforming  2.412 - 2.472 GHz  5.180 – 5.825 GHz Access Control  Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Modulation © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 73 Input: 100 – 240 V AC, 50 - 60 Hz • Output: 12V DC, 1.5A external power adapter  Consumption: 17.4W (max.) Operating Temperature  0 – 40 °C (32 – 104 °F) Operating Humidity  Max. 95% non-condensing © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 74: Troubleshooting

    Click Internet Protocol (TCP/IP) and click Properties. 5. Please see “Steps to improve wireless connectivity” on page 28 if you continue to d. Then click Obtain an IP address automatically and click OK. have wireless connectivity problems. © Copyright 2017 TRENDnet. All Rights Reserved.

  • Page 75: Appendix

    2. In the Network Preference window, next to "Show:", select Network Status. You'll see Ethernet and select the TCP/IP tab. your network status and your IP address settings displayed. In MAC OS 10.5/10.6, in the left column, select Ethernet. e. Configure TCP/IP to use DHCP. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 76 3. You may be prompted to enter a security key in order to connect to the network. 4. Enter in the security key corresponding to the wireless network, and click Connect. © Copyright 2017 TRENDnet. All Rights Reserved.
  • Page 77 This equipment has been tested and found to comply with the limits for a Class B digital TRENDnet hereby declare that the product is in compliance with the essential requirements device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable and other relevant provisions under our sole responsibility.
  • Page 78 Con la presente TRENDnet dichiara che questo TEW-827DRU è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti Česky [Czech] TRENDnet tímto prohlašuje, že tento TEW-827DRU je ve shodě se stabilite dalla direttiva 2014/35/CE, 2014/30/CE, 2014/53/EU, základními požadavky a dalšími příslušnými ustanoveními směrnice 2013/35/EU, 2009/125/CE, 2011/65/EU, e 2012/19/EU.
  • Page 79 [Slovak] a všetkypríslušnéustanoveniaSmernice 2014/35/ES, 2014/30/ES, 2014/53/EU, 2013/35/EU, 2009/125/ES, 2011/65/EU, a 2012/19/EU. Suomi [Finnish] TRENDnet vakuuttaa täten että TEW-827DRU tyyppinen laite on direktiivin 2014/35/EY, 2014/30/EY, 2014/53/EU, 2013/35/EU, 2009/125/EY, 2011/65/EU, ja 2012/19/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska Härmed intygar TRENDnet att denna TEW-827DRU står I...
  • Page 80 Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled This radio transmitter (IC: 6337A-TEW827DRUV2) has been approved by Industry Canada to environment. This equipment should be installed and operated with minimum distance operate with the antenna types listed below with the maximum permissible gain indicated.
  • Page 81 An RMA number is required in order to initiate warranty service support the event that the RMA unit needs to be replaced, TRENDnet may replace it with a for all TRENDnet products. Products that are sent to TRENDnet for RMA service must refurbished product of the same or comparable model.
  • Page 82 TRENDnet User’s Guide shipping from outside of the USA and Canada are responsible for any return shipping LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW, TRENDNET ALSO and/or customs charges, including but not limited to, duty, tax, and other fees.
