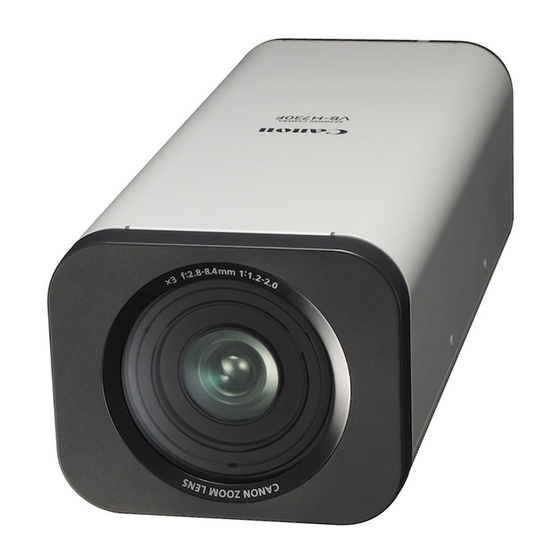

Canon VB-H730F Mk II Installation Manual

Hide thumbs

Advertisement

Quick Links

1

Network Camera

2
BIE-7201-000

Installation Guide

ENGLISH
This Installation Guide is comprised of pages [1/2] and [2/2]. Please be sure to read the
"Safety Precautions" section for correct use. After reading this Installation Guide, keep it
in a readily accessible location for future reference. This camera is for indoor use only.
* Some cameras are not available in certain countries or regions.
WARNING
To reduce a risk of fire or electric shock, do not expose this product to rain
or moisture.
Caution
Request a professional installer for all installation work. Never try to install
the camera yourself. Doing so may result in unforeseen accidents such as
dropping the camera or electric shock.
Check Included Items
Camera
Power connector
Accessories
The following accessories can be purchased separately as necessary. Some accessories are
not available in certain countries or regions.
AC Adapter PA-V18
Dedicated AC adapter for this camera.
Safety Precautions

Installation Precautions

Warning
Failure to follow the instructions may result in death or serious injury.
Do not install in the following places:
• Places in direct sunlight, near heat-generating objects, or locations subject to high temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
• Humid or dusty places
• Places subject to oily smoke or steam
• Places subject to sea air
• Confined or enclosed places
Failure to do so may result in fire or electric shock.
Notes on Power Supply
• Only use the dedicated AC adapter (sold separately) ,when using AC adapter.
• Do not set any heavy objects on the power cable (or the LAN cable for a PoE power supply).
• Do not pull, forcibly bend, scratch, or modify the power cable (or the LAN cable for a PoE power supply).
• Do not cover or wrap the AC adapter (sold separately) with cloth or blankets.
Failure to do so may result in fire or electric shock.
Caution
Failure to follow the instructions may result in injury.
For installation or inspection of this camera, consult the dealer where you purchased the product.
• This installation should be made by a qualified service person and should conform to all local codes.
• When installing, make sure the surface is capable of withstanding the total weight of the camera and
accessories, and sufficiently reinforce if necessary.
• Be sure to use installation screws designed for the type of surface the camera is to be installed.
• Periodically check the parts and screws for rust and loosening, in order to prevent injuries and
equipment damage due to falling items.
• Do not install in unstable places, places subject to significant vibration or impact, or places subject to
salt damage or corrosive gas.
Failure to do so may result in the camera falling or other accidents.
• Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
Caution
Failure to follow the instructions may result in property damage.
• Do not install on an unstable surface.
• After turning off the power, do not turn the power on again for at least five seconds.
• Take measures to remove static electricity before performing any procedures.
• If there is condensation, please wait to power on, until the condensation dissipates.
• The network camera is only intended for a connection to an Ethernet or PoE network without routing to
the outside plant.
Failure to do so may result in malfunctions.
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Important
We recommend the installation of a lightning arrester (a surge protection device) as a measure against
failures caused by lightning strikes. Please refer to our website for details.

Precautions for Use

Warning
Failure to follow the instructions may result in death or serious injury.
• If you discover defective conditions such as smoke, strange sounds, heat or strange odors,
immediately stop using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
• If thunder starts, stop installation or inspection etc. and do not touch the camera or continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not spray the camera with water, or otherwise make it wet.
• Do not insert foreign objects such as water or metal into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supply, or the power connector for the AC adapter (sold
separately) connected when the camera is not in use for long periods.
• Do not use flammable solvents such as alcohol, paint thinner or benzine when cleaning the camera.
Failure to do so may result in fire or electric shock.
• This camera should not be used with medical devices or other life-support systems.
• Depending on the computer and network environment, high-precision video transmission cannot be
guaranteed due to video lag or loss.
Canon will assume no liability for any accident or damage resulting from use of the camera
under the conditions above.
The contents of this guide are subject to change without any prior notice.
Installation Guide (This document)
Warranty card
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
These symbols indicate that this product is not to be disposed of with your household waste,
according to the WEEE Directive (2012/19/EU), the Battery Directive
(2006/66/EC) and/or national legislation implementing those Directives.
If a chemical symbol is printed beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery
or accumulator at a concentration above an applicable threshold
specified in the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized
one-for-one basis when you buy a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (EEE) and batteries and accumulators.
Improper handling of this type of waste could have a possible impact on the environment
and human health due to potentially hazardous substances that are generally associated
with EEE. Your cooperation in the correct disposal of this product will contribute to the
effective usage of natural resources.
For more information about the recycling of this product, please contact your local city
office, waste authority, approved scheme or your household waste disposal service or visit
www.canon-europe.com/weee, or www.canon-europe.com/battery.
Part Names
1
2
3
4
1. Lens / 2. Mounting screw holes*
/ 3. Front cover / 4. Lens protector /
1
5. Power connection terminal / 6. Audio output terminal (LINE OUT) /
7. 100Base-TX LAN connector / 8. Audio input terminal (dual LINE IN and MIC IN) /
9. Reset Switch*
/ 10. Memory card cover / 11. LED (Blue)*
2
*
A tripod mounting screw (1/4-20 UNC) will fit.
1
*
Please refer to the "Operation Guide" for the method to reset the camera.
2
*
On: when powered on, during reboot, during normal use / Off: when [Turn Off] is selected
3
(please refer to the "Operation Guide")
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5
6
7
8
9
10
11
/ 12. External Device I/O Terminals
3
12
