2.6 Assigning I/O Pins

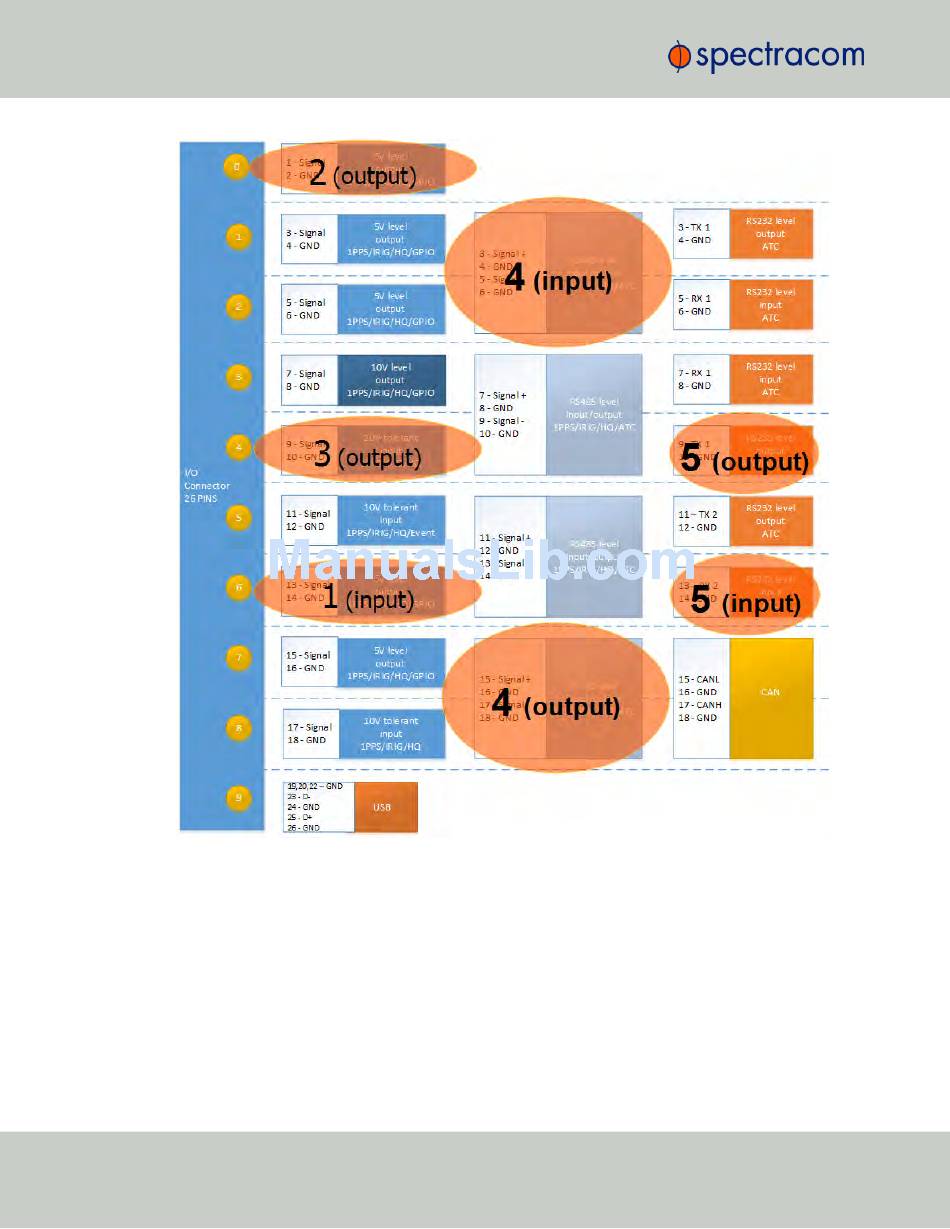

Figure 2-3:
Configuring a new Input or Output
1.
In the VersaSync Web UI, navigate to MANAGEMENT > NETWORK: Pin Layout . The
Pin Layout screen will be displayed.
2.
Prior to assigning the new output, identify a pin pair in the Pin Layout table that is not
used (Signal = "None") or not needed. You can Delete it, but you may also simply
assign the new PPS Output as described below, thus overwriting the existing Input or
Output.
