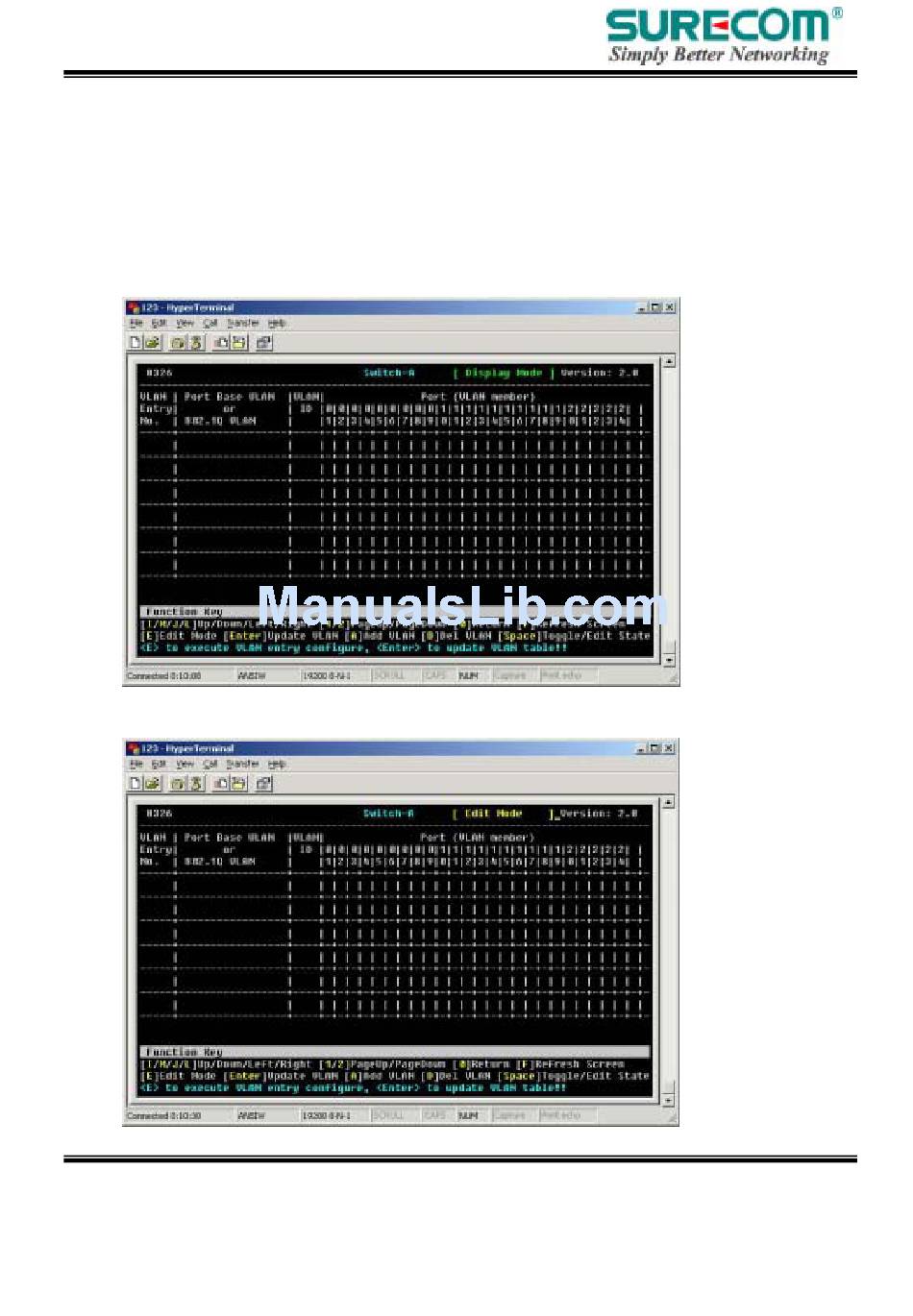

3.2.7 Configuration-VLAN Member Setup

This sheet allows you to set the VLANs. This switch supports Port-based and 802.1Q VLAN.
This switch supports maximum of 32 VLAN group entries for setting in default, but
it may be less than 32 entries can be really used sometime which depends on whether you do
VLAN setting with overlap port or not
Click the "E" to enter "Edit Mode". And then use function keys to configure VLAN settings.
