1. The Link/Act LED
2. The FDX/Col LED
connection.
3. The 100M LED will light for 100Mbps connection, otherwise it will be unlighted.

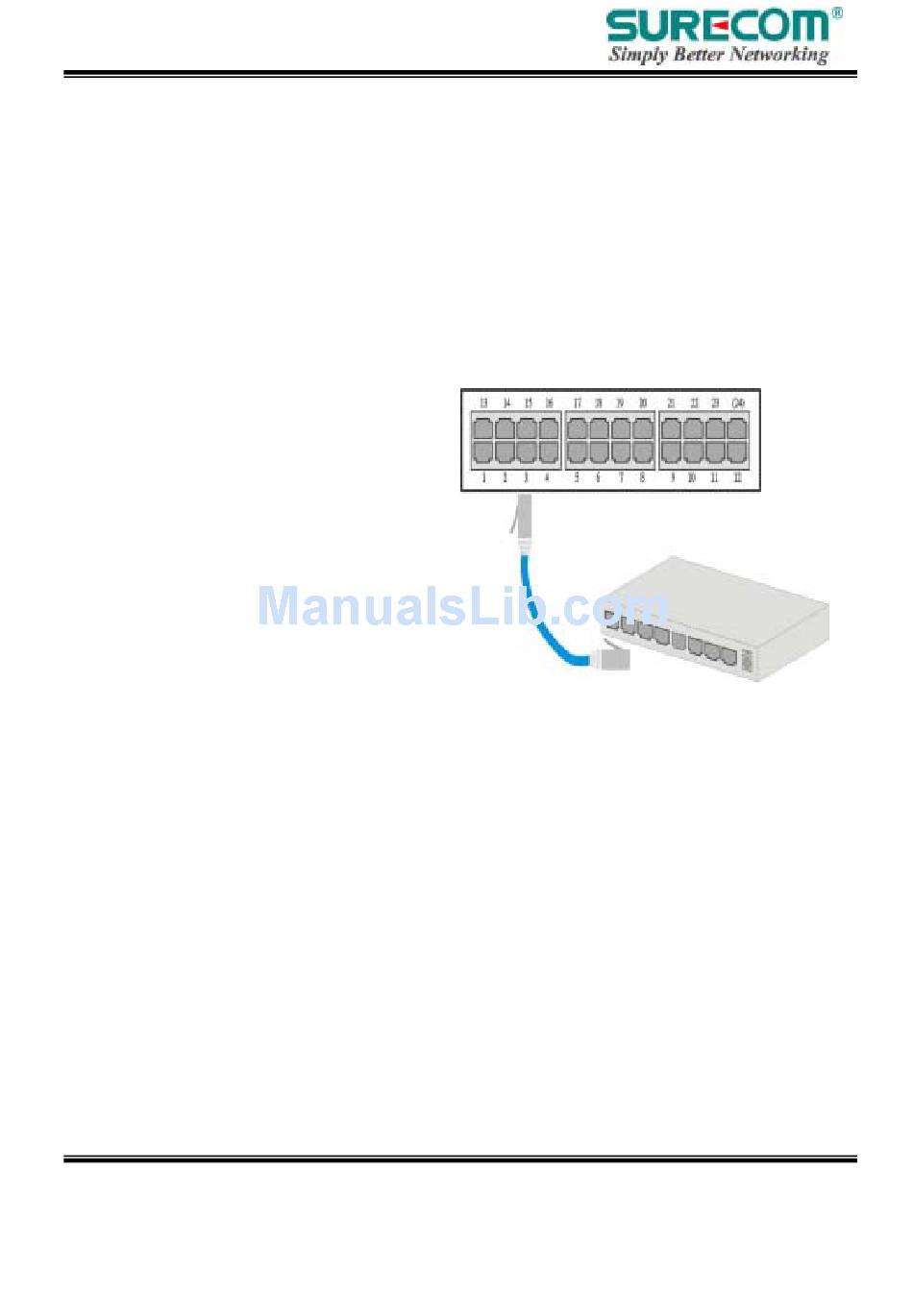

Connecting to Switch or Hub
You can also connect any
port of another switch via
When a attached 10BASE-T/100BASE-TX Hub is powered on or reset:
(10BASE-T Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 LED will be unlighted
(100BASE-TX Hub)
The Link/Act LED will light
The FDX/Col LED will be unlighted
The 100 will light
When a Switch or other devices is switched on:
The Link/Act LED will light
The FDX/Col LED depends on the attached Switch or other devices' capabilities.
The 100 LED will light for 100Mbps connection, otherwise it will be unlighted.
2D
will light
depends on the installed LAN card's capabilities for the PC and the Switch
RJ-45 station port on the Switch to the Uplink port of a Hub or any
straight cable with
© 2004 by SURECOM Technology Corporation. All rights reserved.
RJ-45 plugs at both ends.
